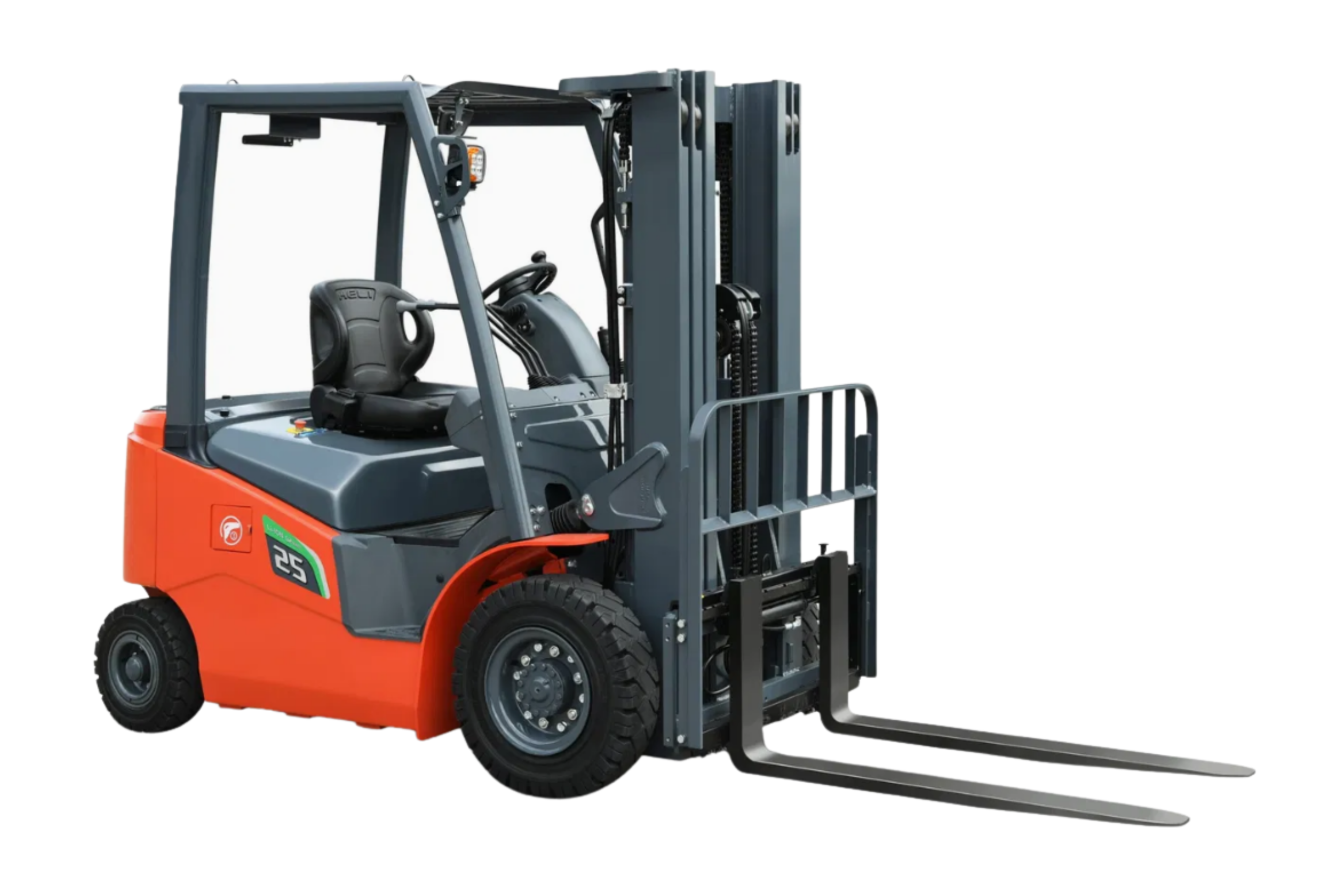

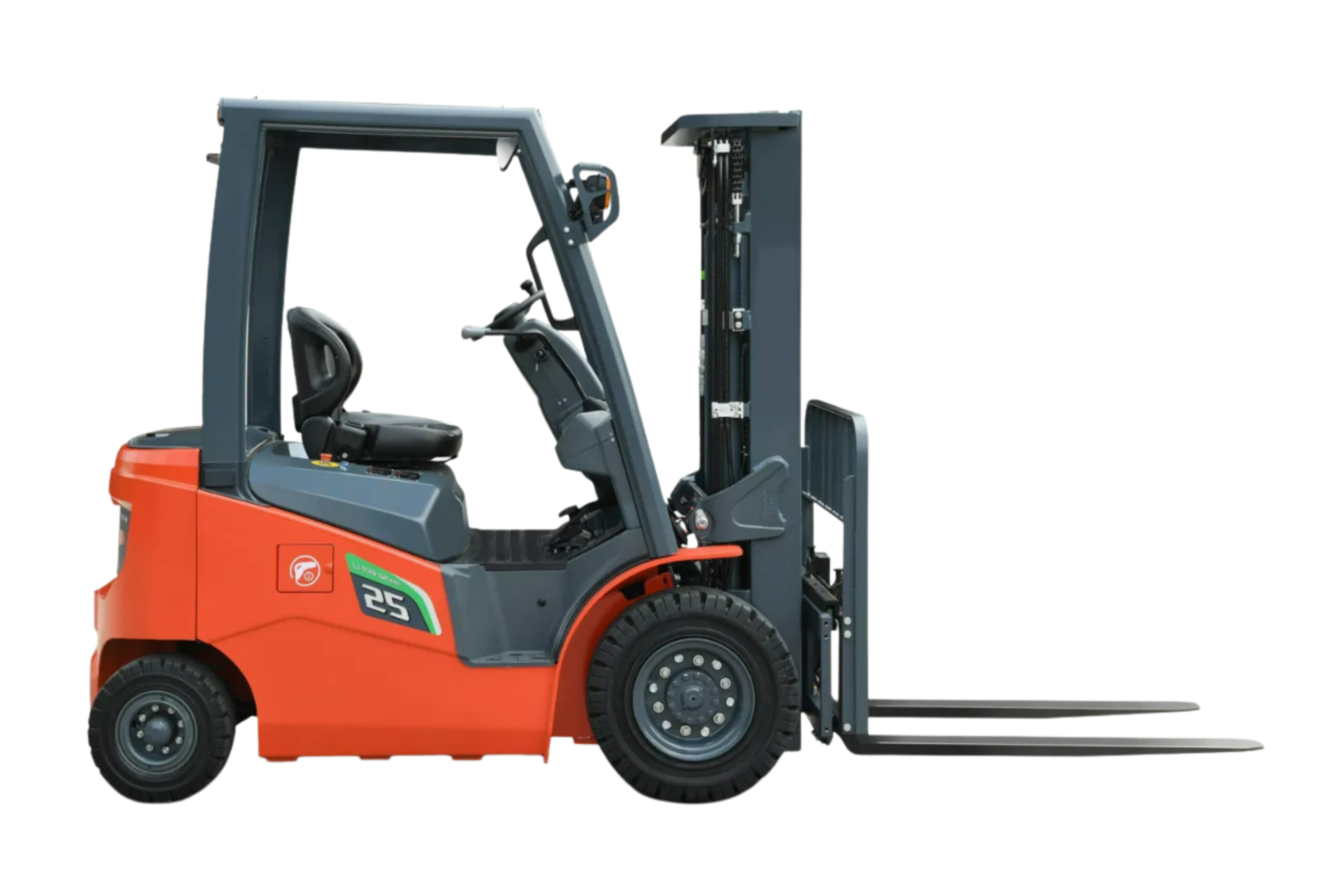

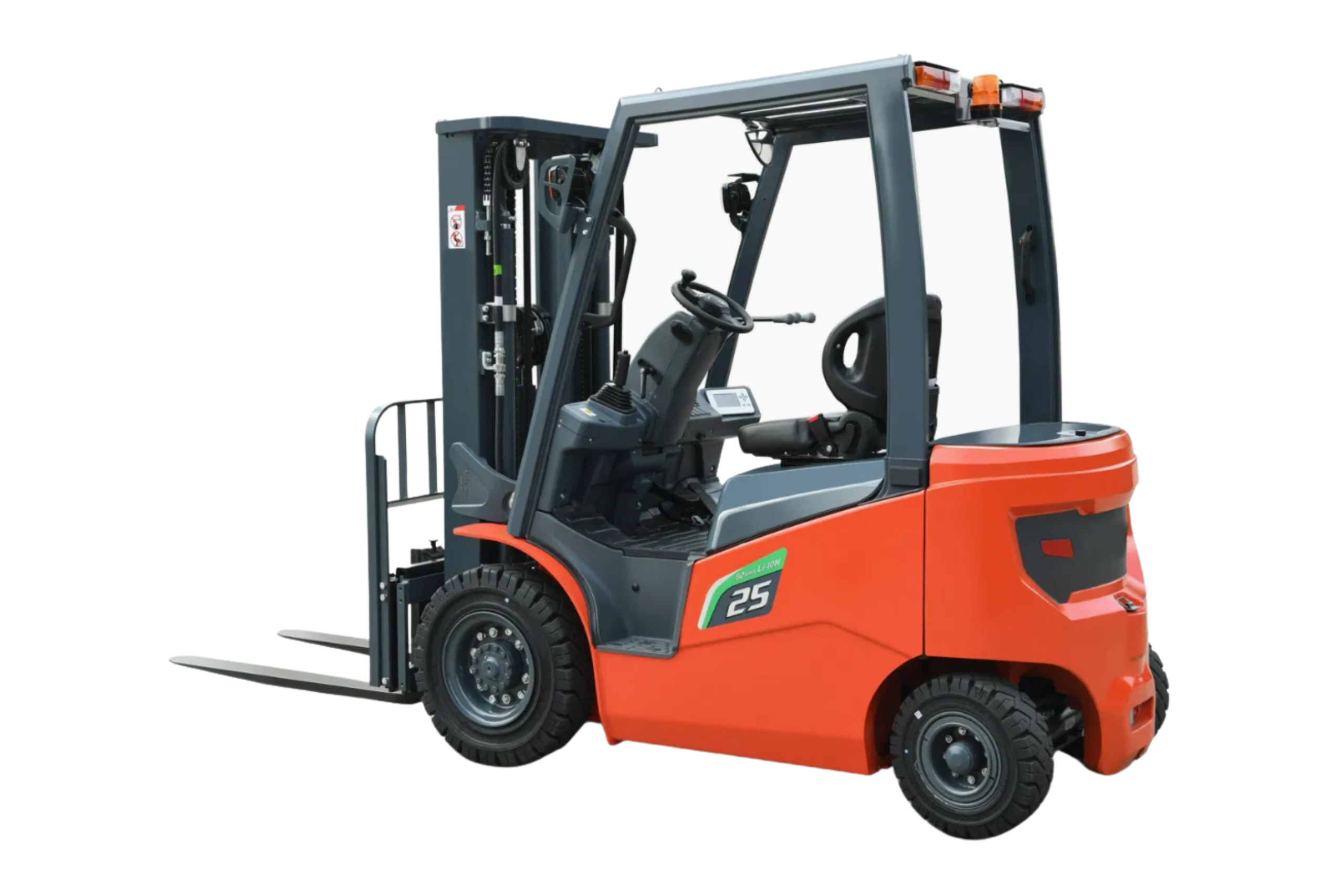

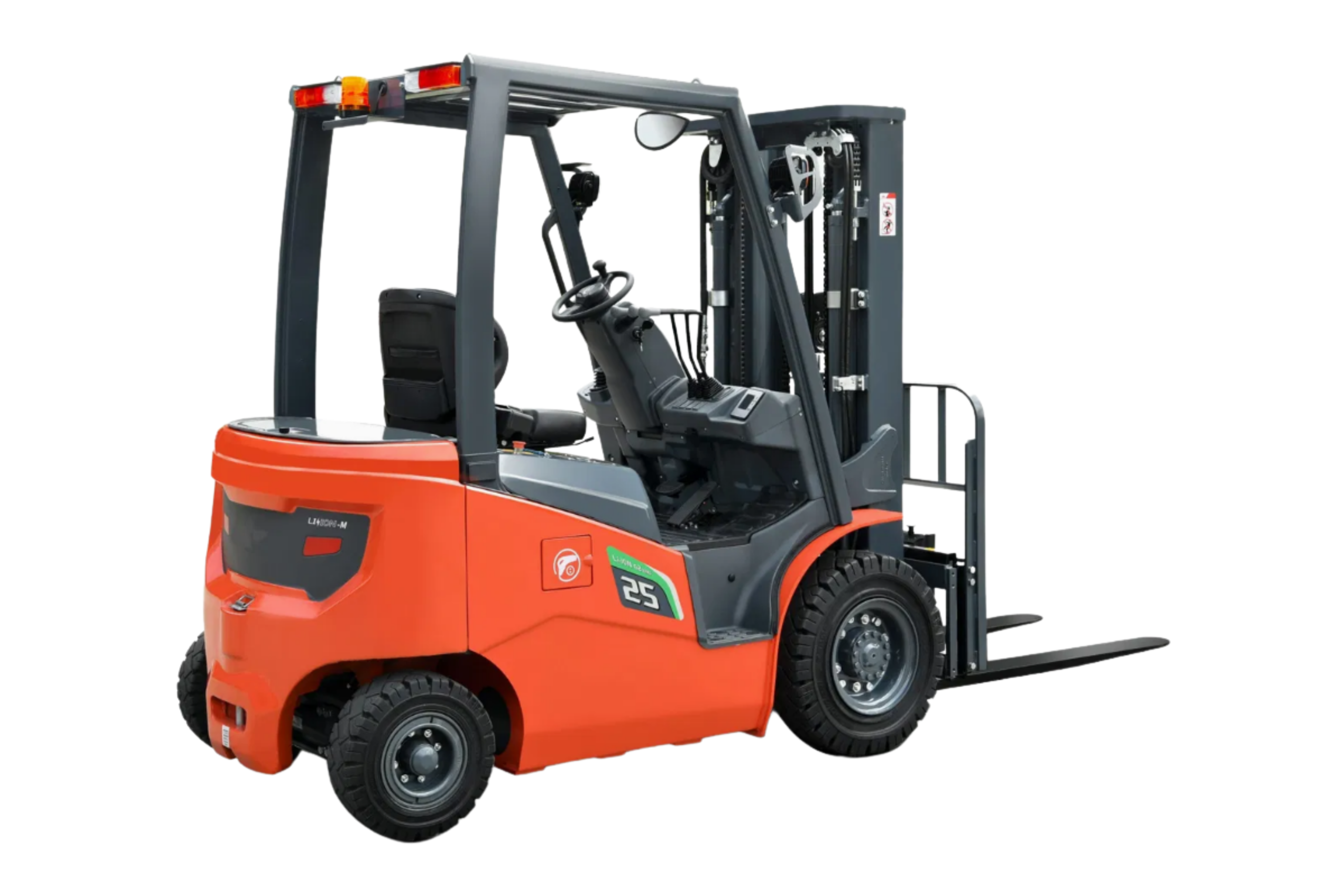

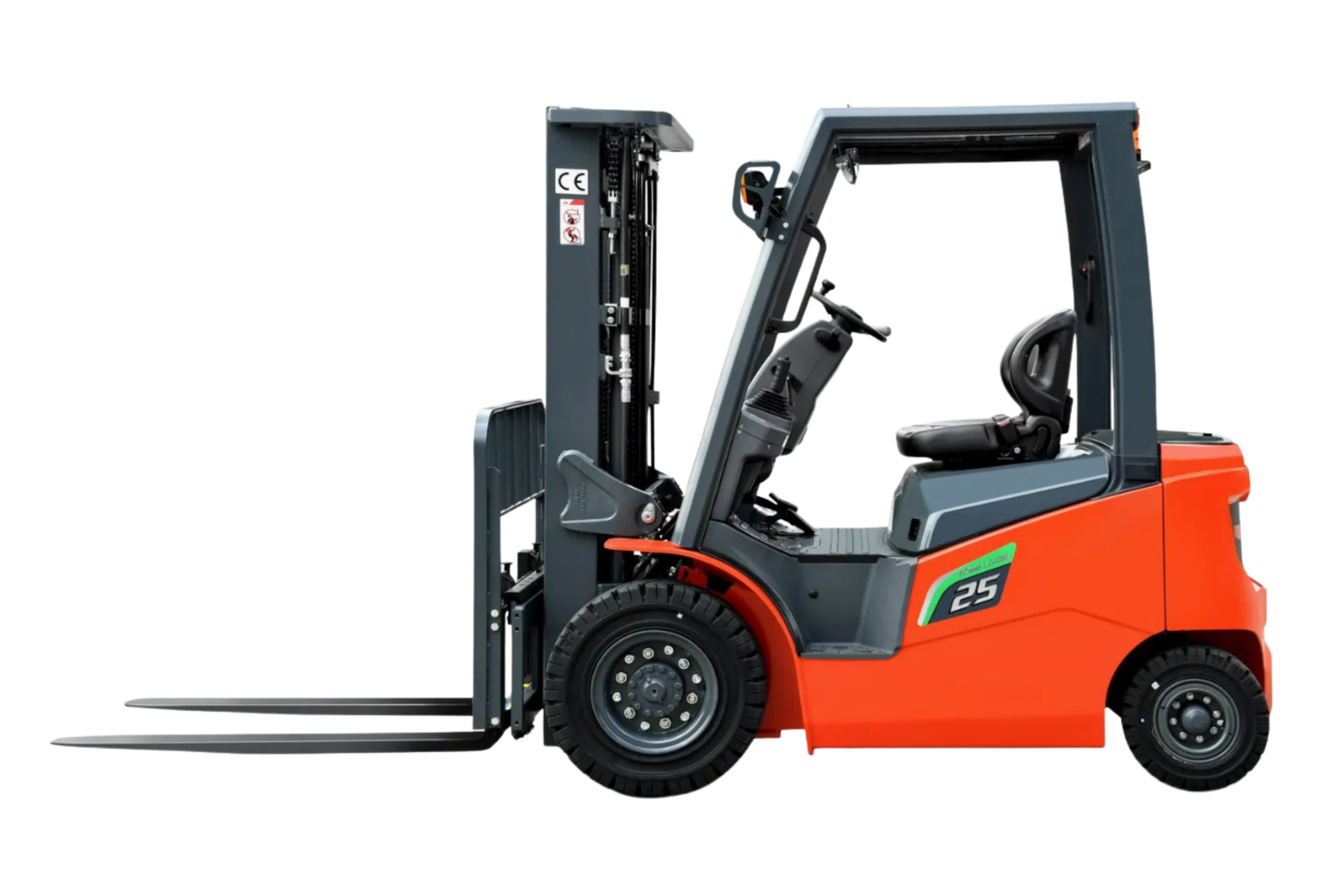

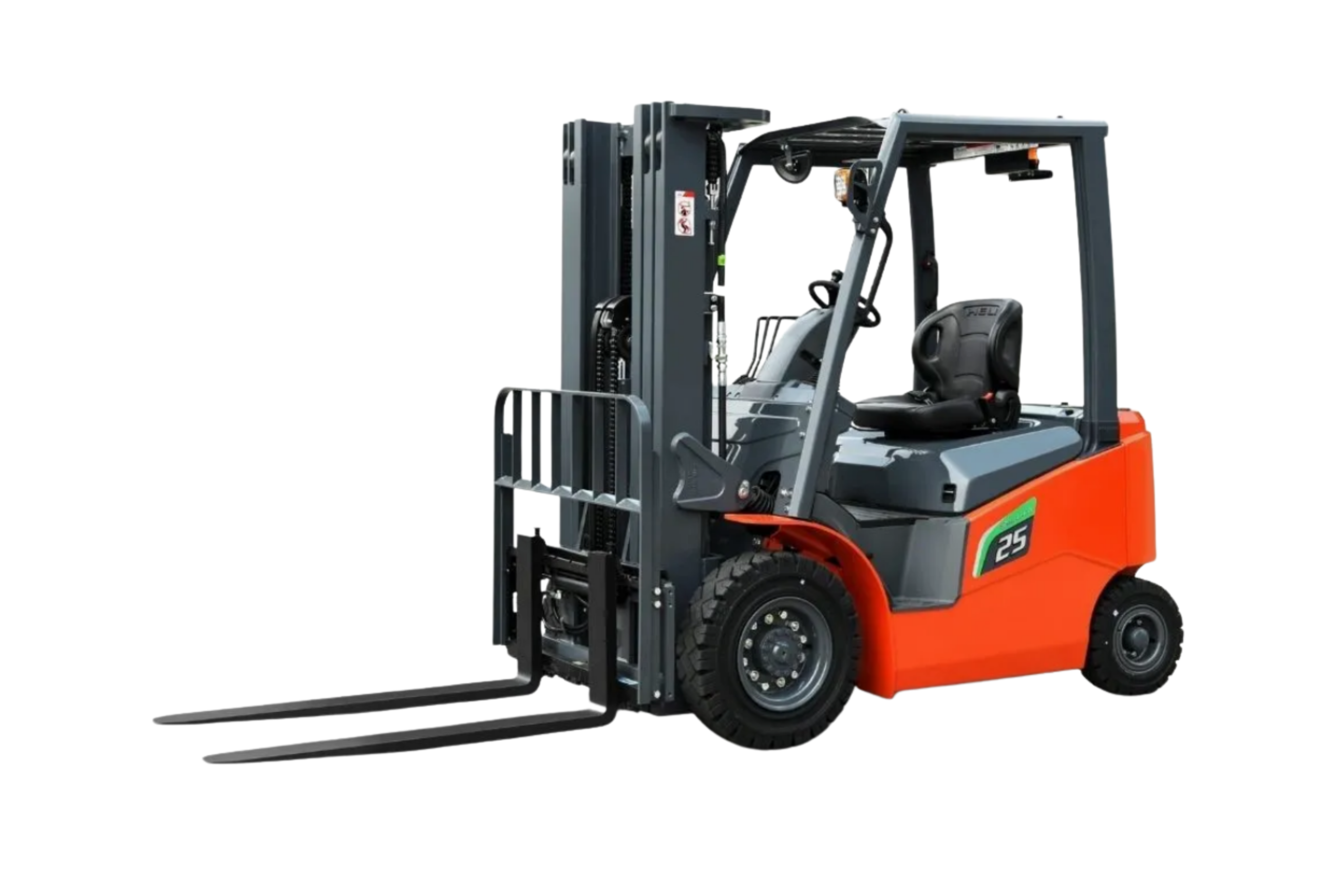

The HELI CPD25-GB2-LiM is a compact, high-performance 5,000 lb lithium-ion sit-down forklift, optimized for both indoor and outdoor use in space-constrained environments. Engineered with a shorter wheelbase and tighter turning radius than standard models, it excels in narrow aisles and busy warehouse layouts without compromising power or stability.
Powered by maintenance-free lithium-ion battery technology, this forklift offers fast opportunity charging, zero emissions, and a 10-year battery warranty, making it ideal for multi-shift operations. It features a full AC drive system, regenerative braking, and advanced ergonomic controls, providing smooth, energy-efficient performance with reduced operator fatigue.
The CPD25-GB2-LiM is a reliable solution for logistics, retail, manufacturing, and cold storage applications that demand both compactness and capability.
| Feature | Description |
|---|---|
| 5,000 lb Load Capacity | Handles a wide range of palletized goods and materials with ease. |
| Compact Wheelbase (Short Chassis) | Optimized for narrow aisle operations and tight warehouse layouts. |
| Lithium-Ion Battery System | Maintenance-free, long-lasting battery with fast opportunity charging and a 10-year warranty. |
| Full AC Motor System | Ensures quiet, smooth operation and maximum energy efficiency. |
| Regenerative Braking | Converts braking energy back to the battery, extending runtime and reducing energy waste. |
| Ergonomic Cabin Design | Suspension seat, adjustable steering, and user-friendly controls for reduced operator fatigue. |
| Zero Emissions | Fully electric powertrain ideal for indoor and environmentally sensitive applications. |
| LED Safety Lighting | Enhanced visibility and workplace safety with standard blue light, backup alarm, and beacon. |
| OPS Safety System | Operator Presence System prevents movement unless the operator is seated and in control. |
| Specification | Value |
|---|---|
| Rated Load Capacity | 5,000 lbs |
| Power Source | Lithium-Ion Battery (80V, high capacity) |
| Battery Warranty | 10 Years |
| Lift Height Range | 185" – 276" (15.4 – 23 ft), mast-dependent |
| Drive Motor Type | Full AC Electric Drive |
| Brake System | Regenerative + Electromechanical |
| Steering | Hydraulic Power Steering |
| Turning Radius | Reduced (short chassis design) |
| Tire Type | Solid Pneumatic (indoor/outdoor ready) |
| Travel Speed (Unloaded) | ~11.2 mph |
| Weight (Unloaded) | ~9,800 – 10,200 lbs |
| Category | Options |
|---|---|
| Mast Types | 2-Stage, 3-Stage Full Free Lift |
| Fork Lengths | 42", 45", 48", 60" |
| Tires | Non-Marking Solid Pneumatic, Heavy-Duty |
| Comfort Enhancements | Heated seat, full weather cab, overhead fan |
| Visibility Aids | Overhead LED light bar, mast-mounted camera system |
| Telematics | Hour meter, fleet diagnostics, battery management system (BMS) |
| Safety Add-ons | Rear handle with horn, speed limiter, blue pedestrian light, auto shut-off sensor |
