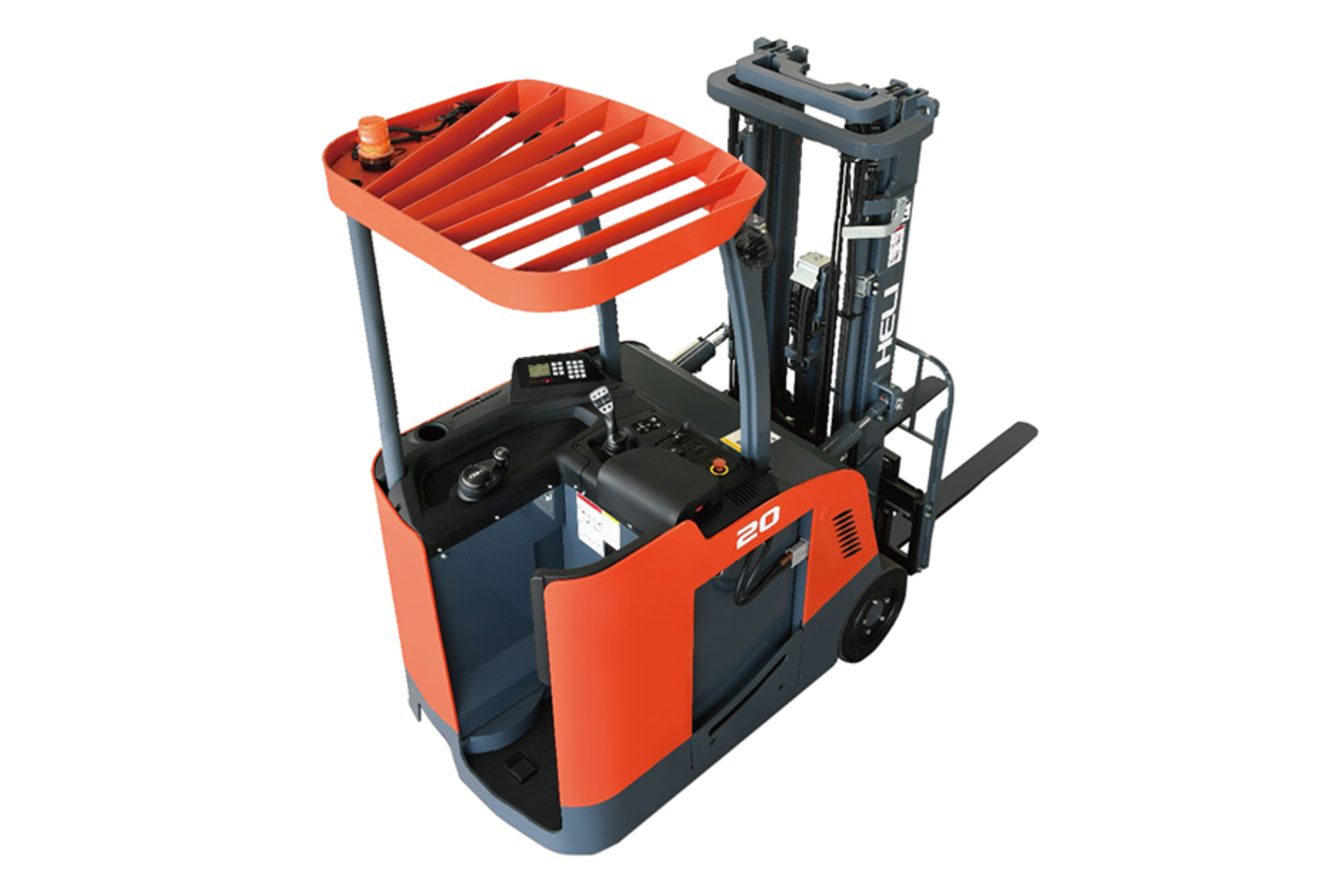

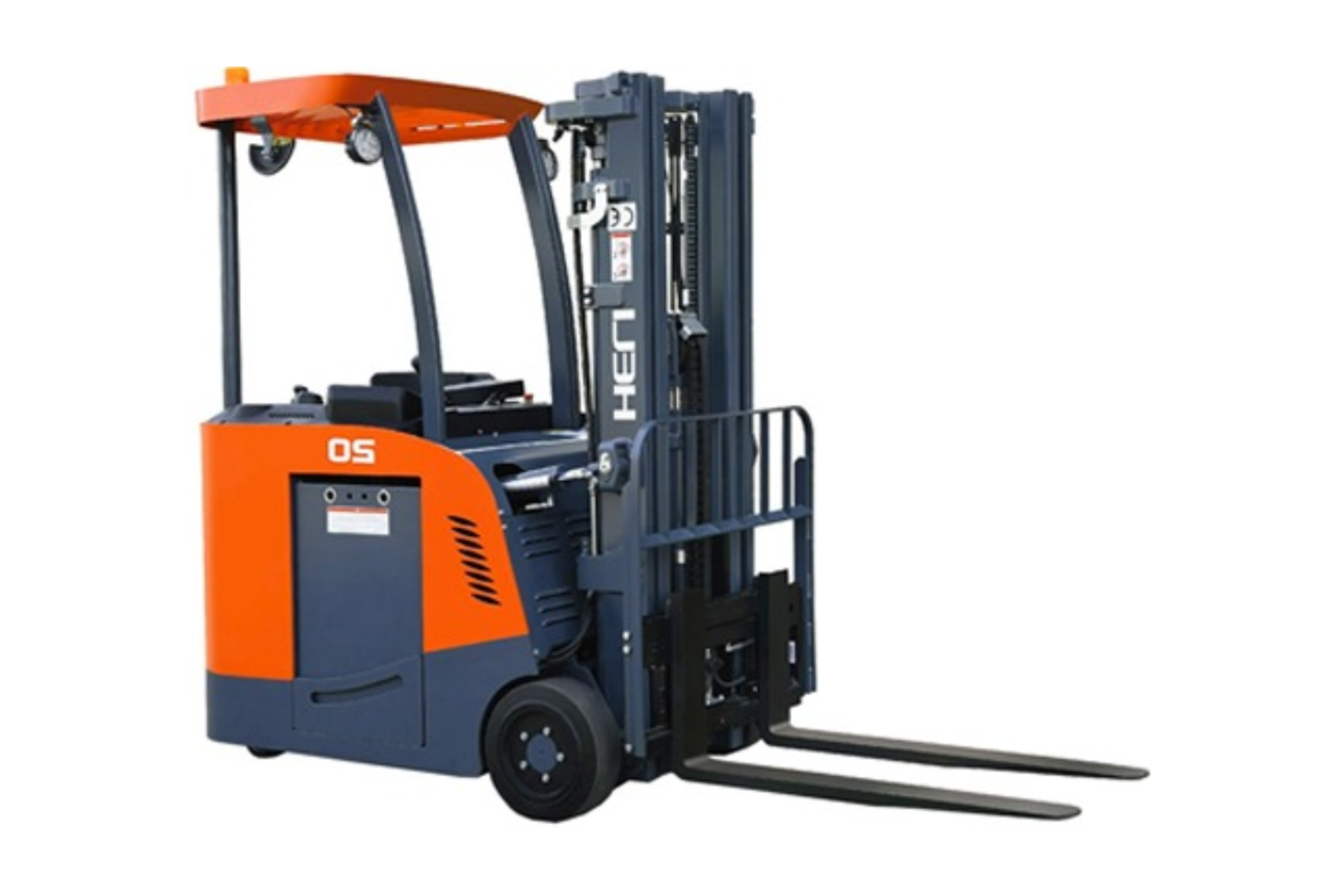

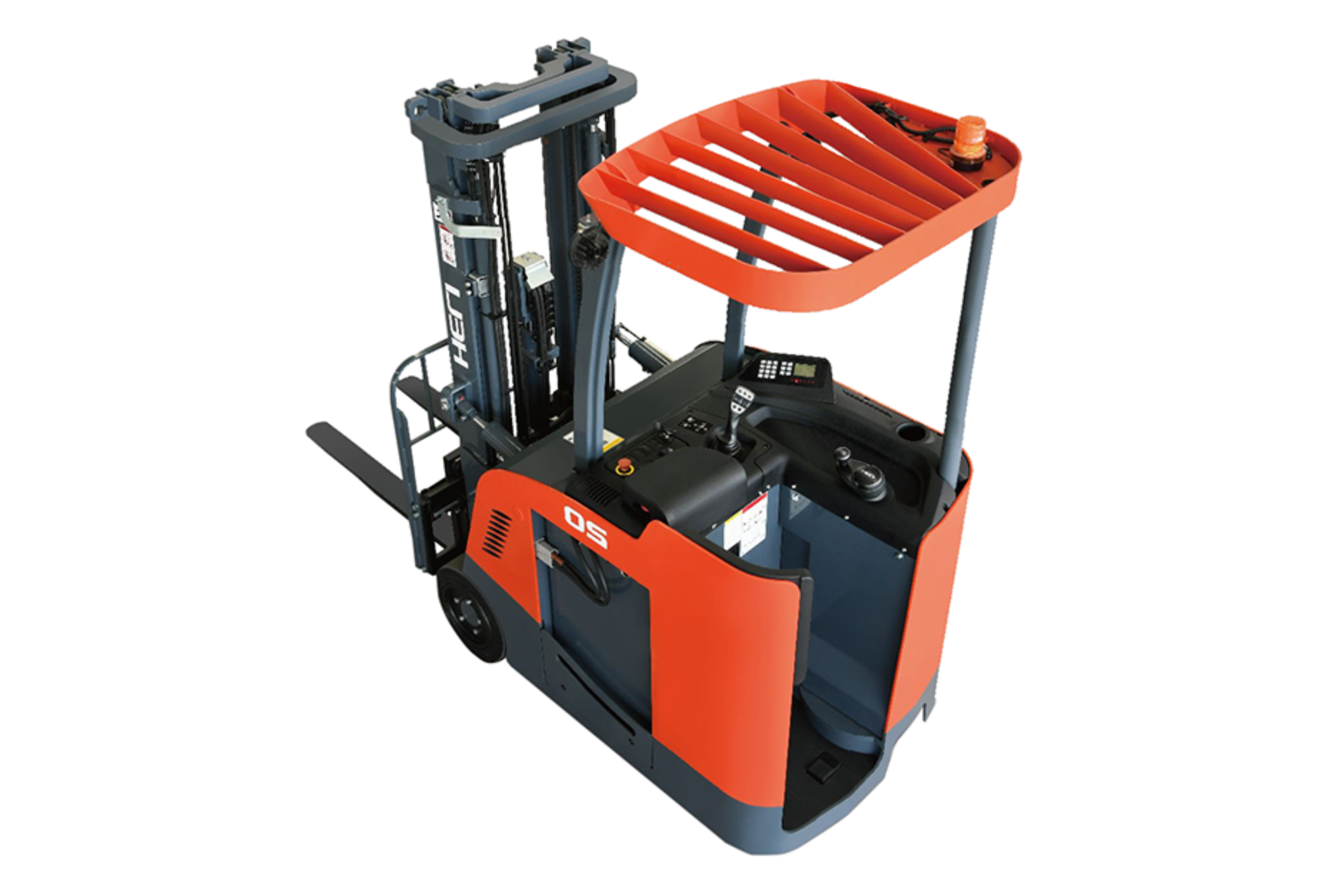

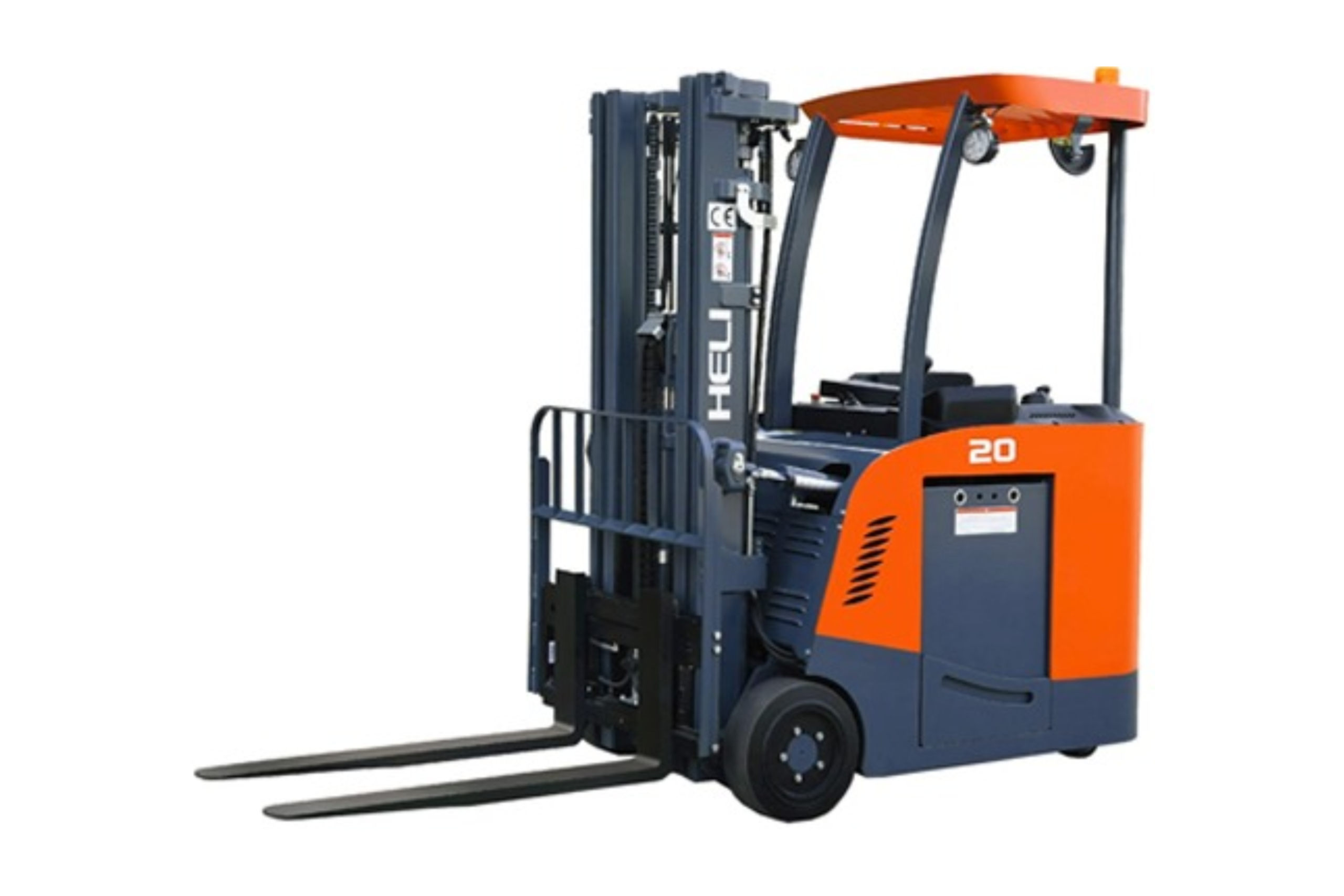

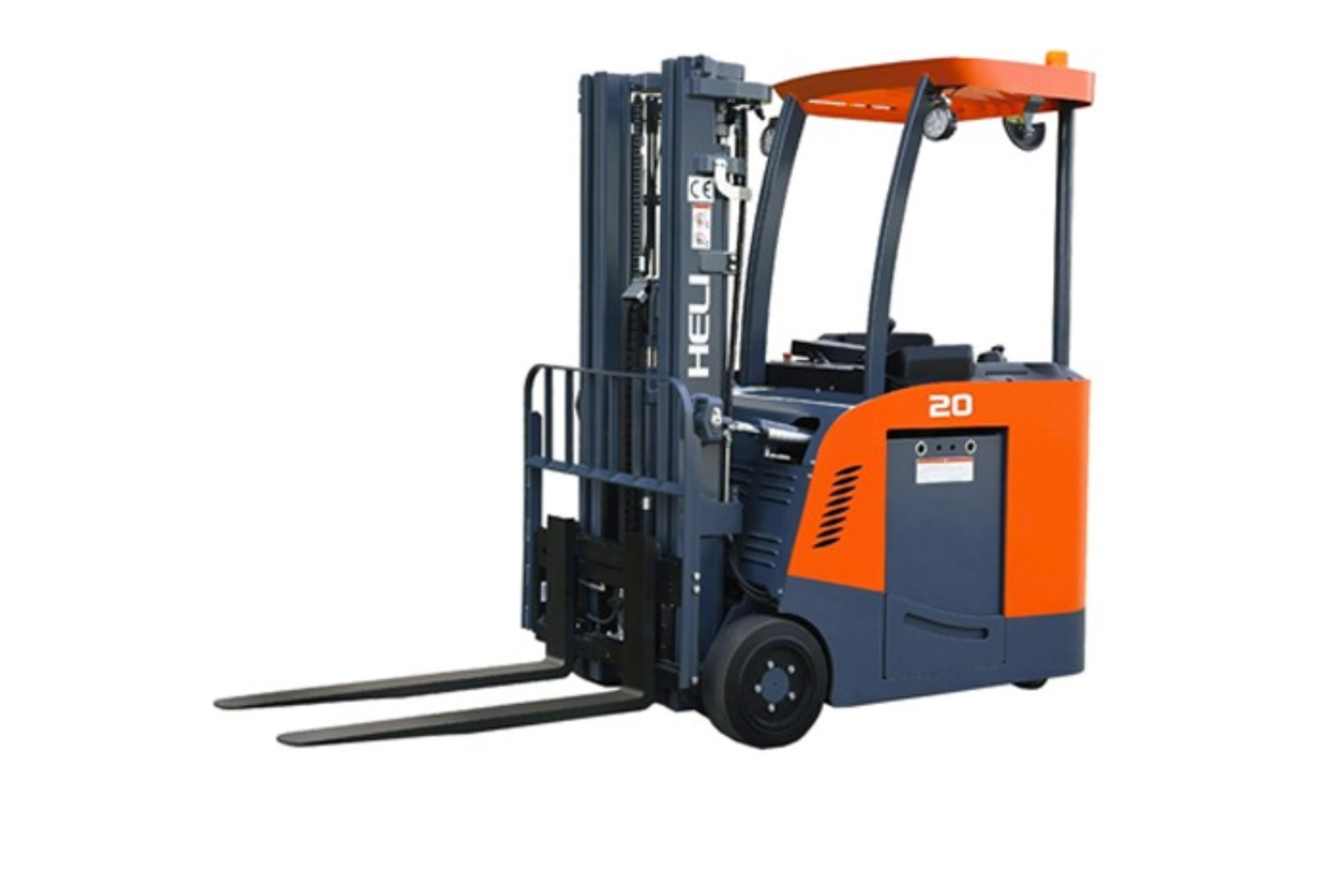

The HELI CPDSR20-GA2-Li is a 4,000 lb capacity stand-up counterbalance reach truck powered by lithium-ion battery technology. Designed for high-efficiency warehousing and distribution operations, it combines compact form with exceptional reach and stability. With advanced electromagnetic braking, hydrostatic power steering, and zero-emission operation, it is ideal for narrow aisle storage and multi-shift environments. The lithium battery provides rapid charging, long life, and minimal maintenance—making this truck a modern, eco-conscious solution for material handling in tight indoor spaces.
| Feature | Description |
|---|---|
| 4,000 lb Lift Capacity | Ideal for high-volume pallet handling in warehouses and distribution centers. |
| Lithium-Ion Battery Technology | Offers fast charging, long cycle life, and minimal maintenance—perfect for multi-shift operations. |
| Stand-Up Counterbalance Design | Enhances visibility and maneuverability in tight warehouse aisles while allowing quick on/off access. |
| Electromagnetic Brake System | Provides smooth and energy-efficient braking with improved safety and responsiveness. |
| Hydrostatic Power Steering | Ensures precise steering with minimal effort, even in confined or crowded environments. |
| Back-Up Alarm and Lights | Increases workplace safety by alerting pedestrians and other vehicles during reverse operation. |
| Operator Presence Detection System | Disables movement when the operator is not present, improving jobsite safety. |
| Blue Pedestrian Safety Light | Projects a warning light on the ground to alert nearby personnel of the truck’s presence. |
| LED Lighting System | Improves visibility in dimly lit storage areas without draining the battery. |
| Closed Loop Emission System | Maintains clean operation—suitable for food, pharma, and clean indoor applications. |
| 10-Year Lithium Battery Warranty | Long-term battery coverage ensures peace of mind and lower total cost of ownership. |
| Specification | Value |
|---|---|
| Rated Load Capacity | 4,000 lbs |
| Power Type | Electric – Lithium-Ion |
| Battery Warranty | 10 Years (Lithium) |
| Lift Height Range | 185" – 240" (15.4 – 20 ft), depending on mast |
| Braking System | Electromagnetic Brakes |
| Steering System | Hydrostatic Power Steering |
| Operator Safety Features | Presence Detection System, Backup Alarm, Blue Light |
| Lighting | LED Work & Safety Lights |
| Tires | Polyurethane (Standard for Reach Trucks) |
| Drive Type | Rear-Wheel Drive |
| Emissions System | Closed Loop – Zero Emissions |
| Recommended Aisle Width | Narrow Aisle Applications (based on standard pallets) |
| Feature Area | Available Options / Descriptions |
|---|---|
| Mast Types | 2-Stage and 3-Stage Full Free Lift masts for standard or extended lift needs |
| Fork Lengths | 36", 42", 48", 60" to match various pallet sizes and load depths |
| Tires | Non-Marking Polyurethane (for indoor use), Heavy-Duty Polyurethane (for longer wear) |
| Hydraulic Attachments | 3rd Valve Ready – Supports fork positioners, sideshifters, clamps |
| Operator Comfort | Adjustable Armrest, Heated Floor Mat for all-day use and cold environments |
| Visibility Enhancements | Mast-Mounted Camera, Overhead LED Light Bar |
| Safety Add-ons | Rear Handle with Horn, Speed Limiter, Audible Travel Alarm |
| Telematics & Tracking | Hour Meter, Fault Code Display, Fleet Management Integration |
