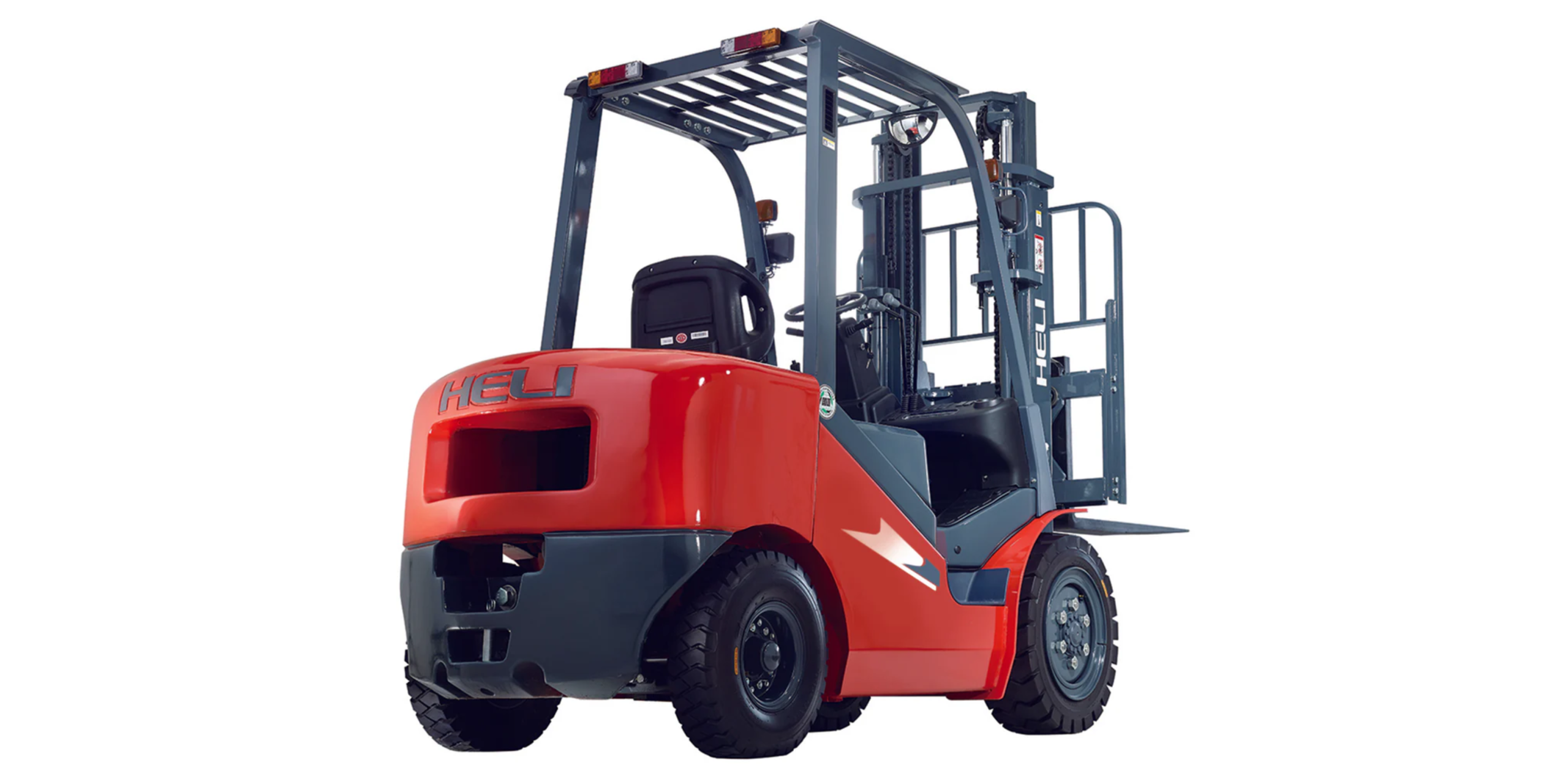

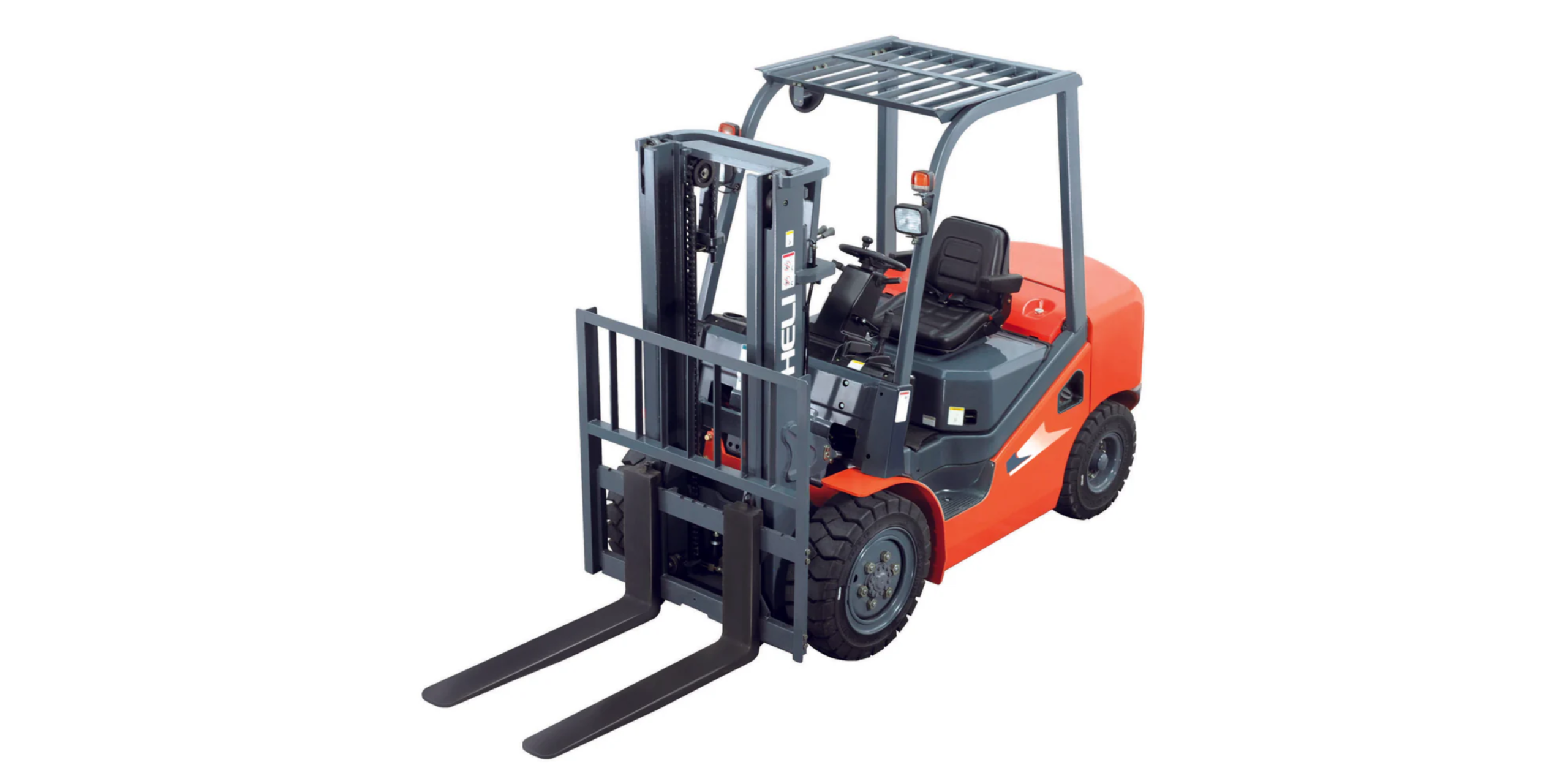

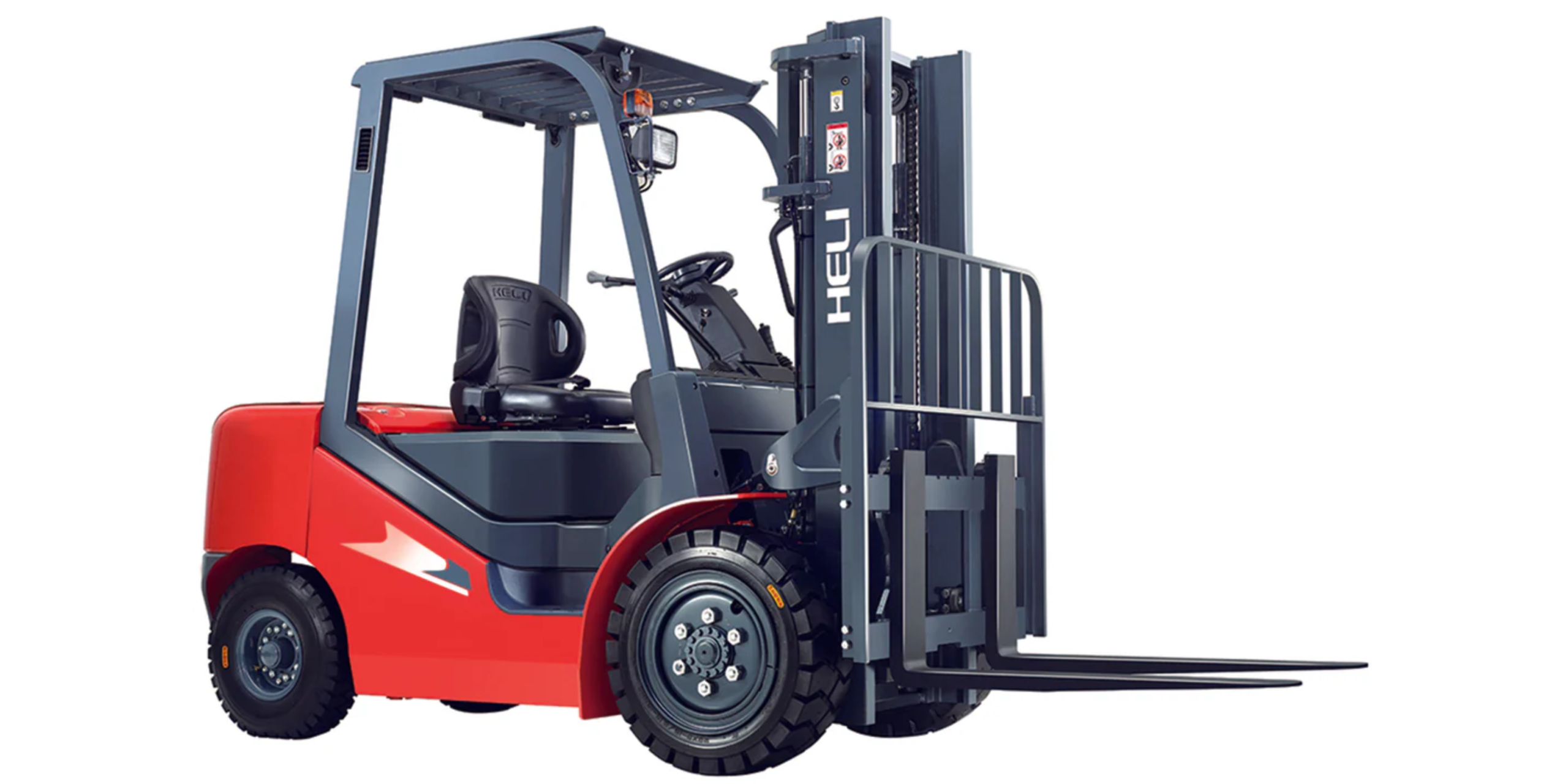

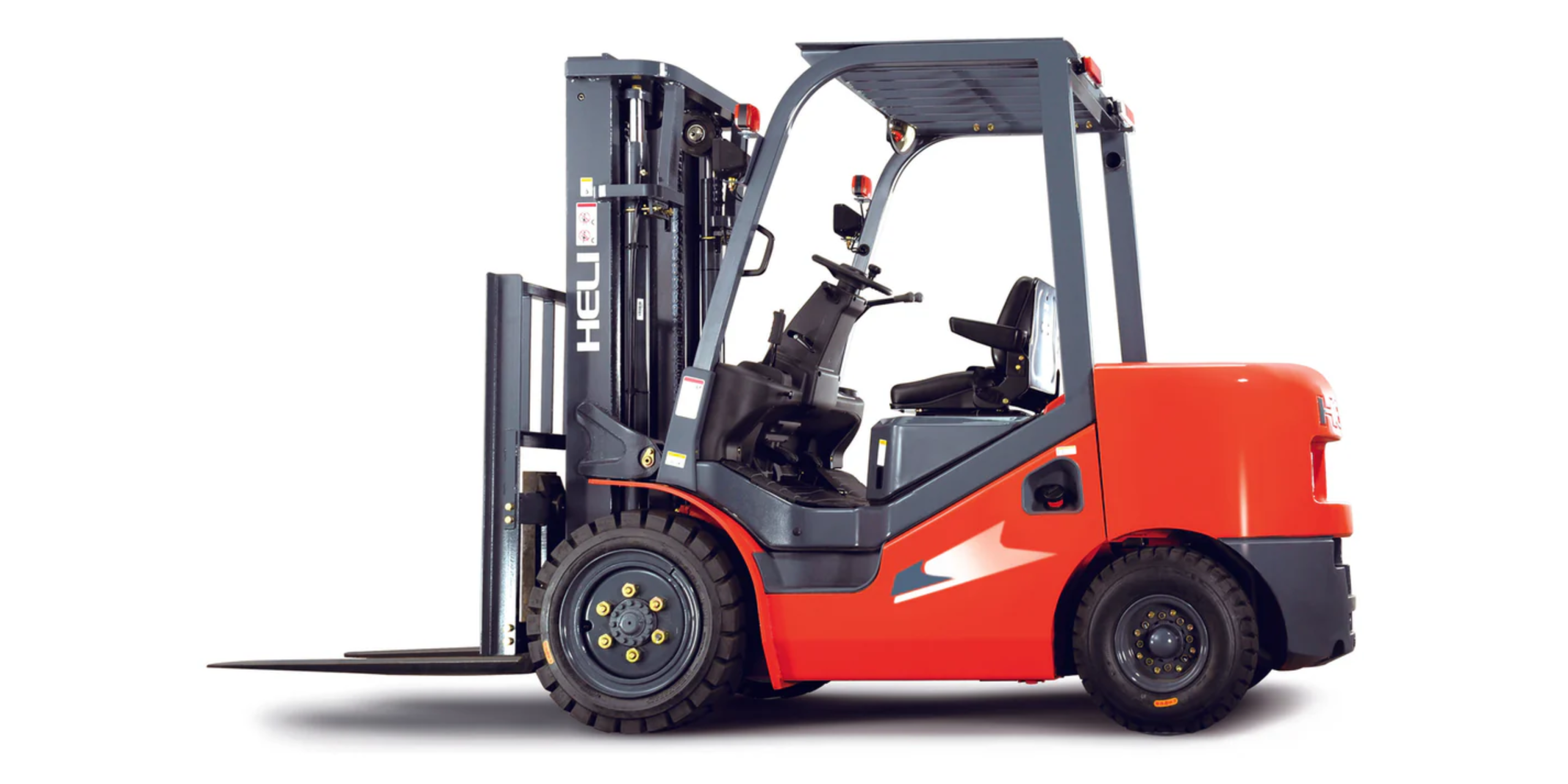

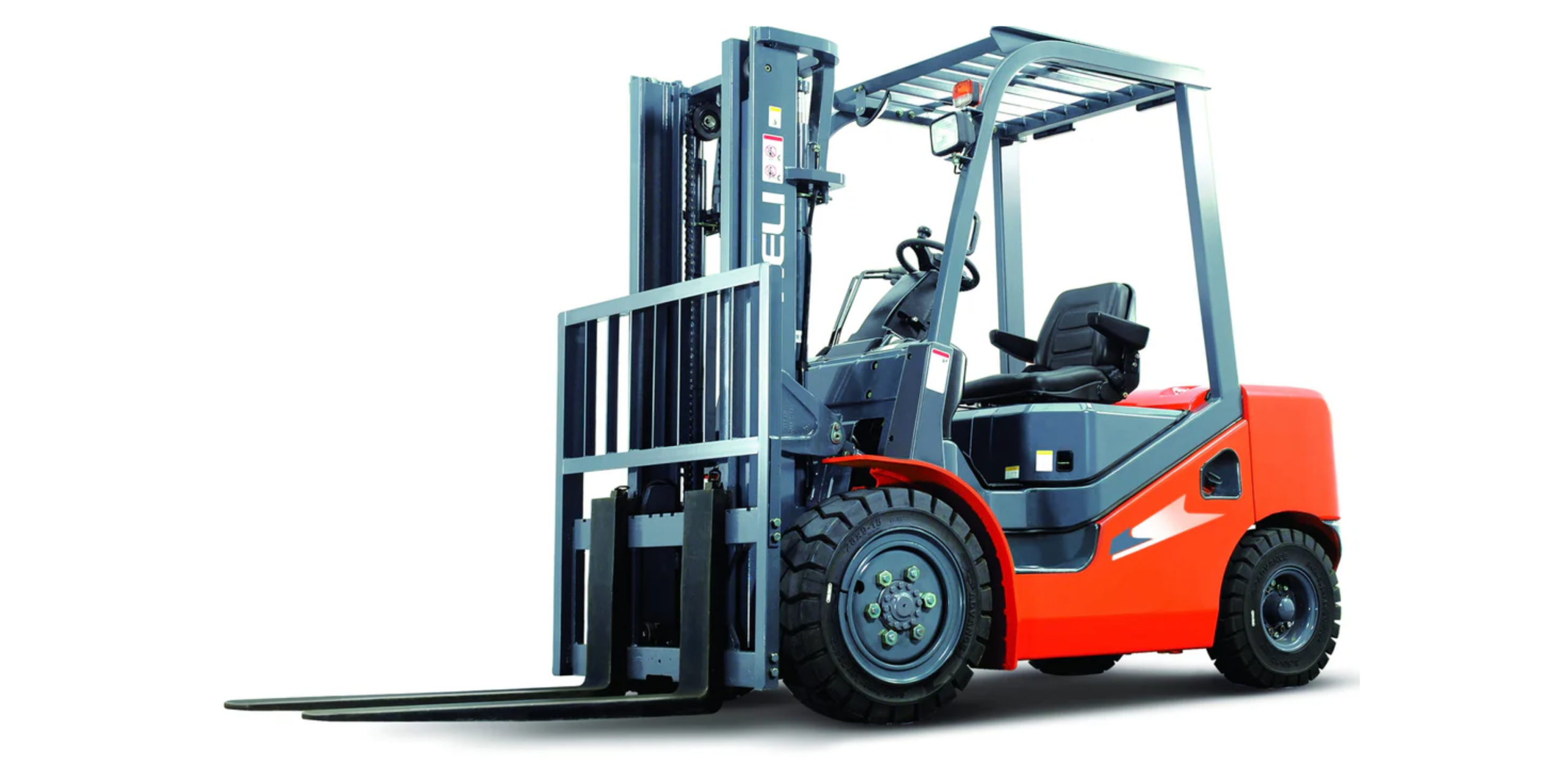

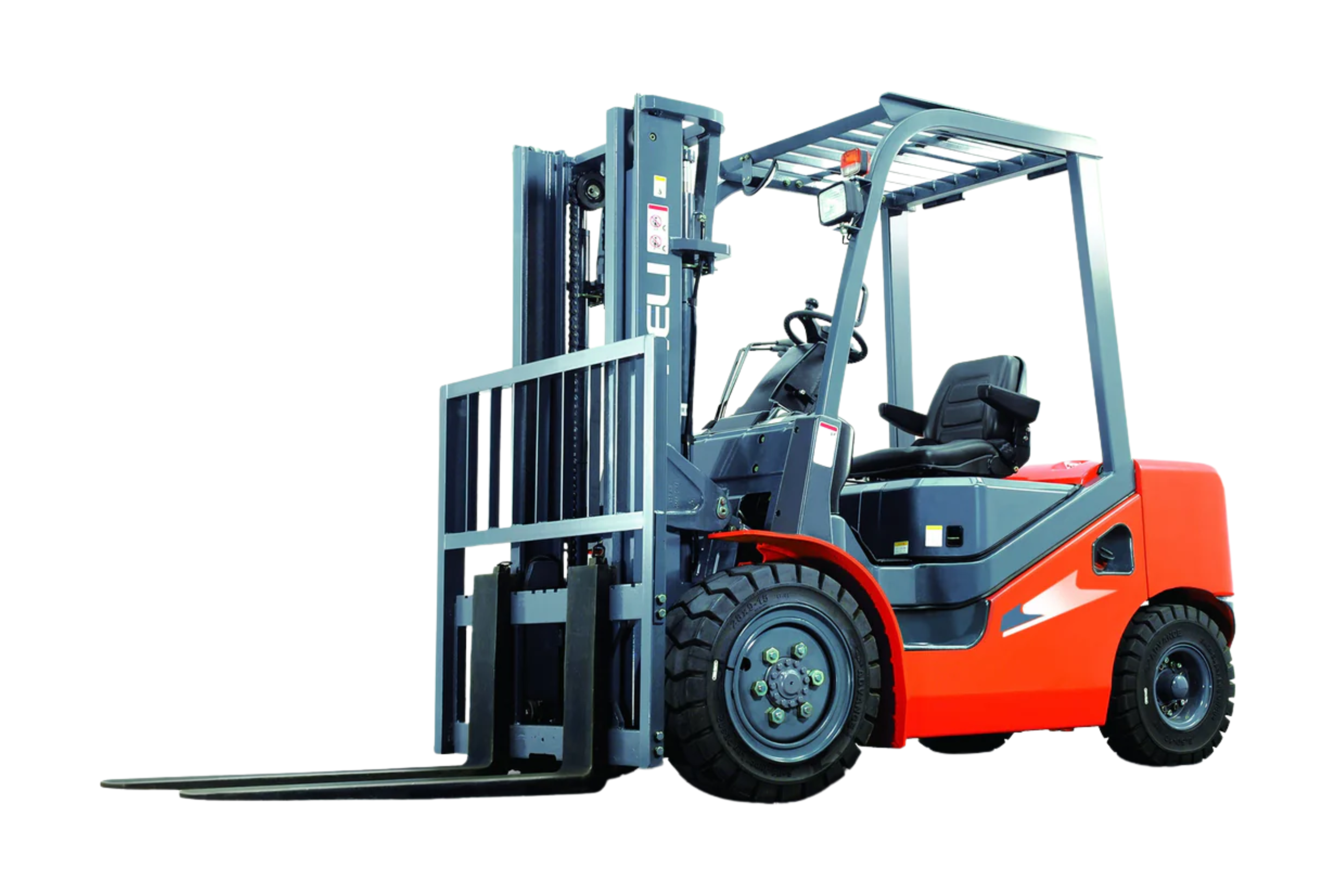

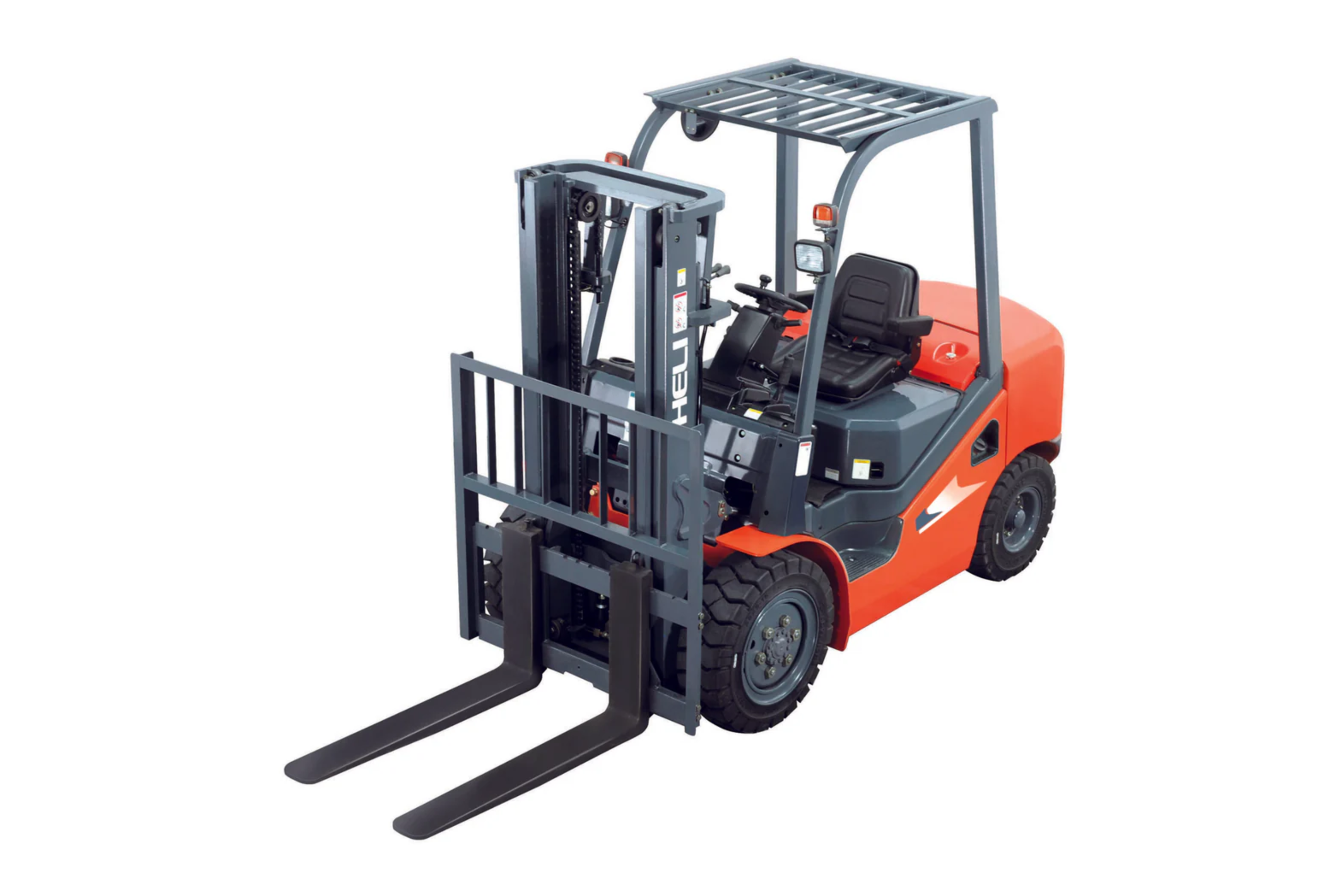

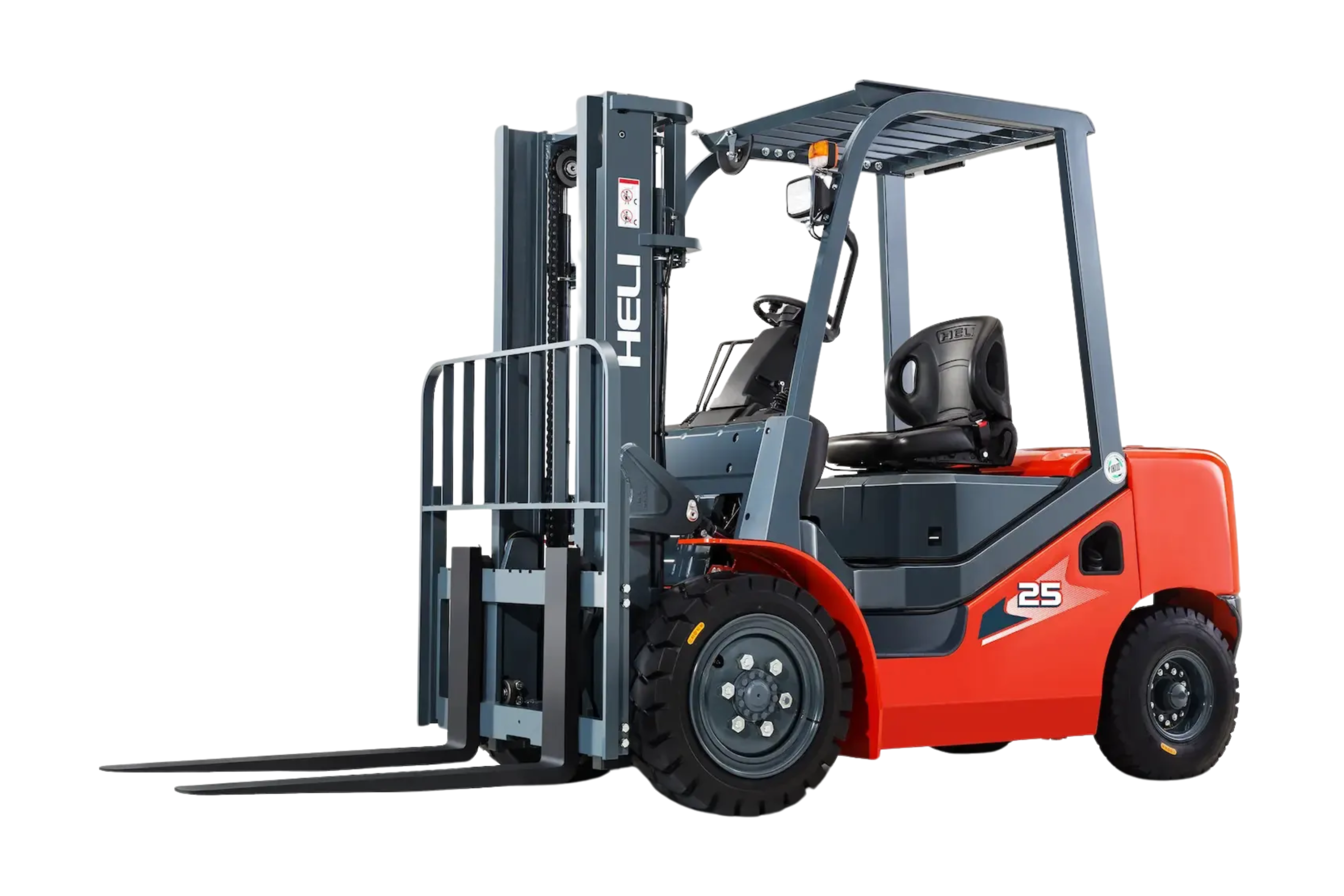

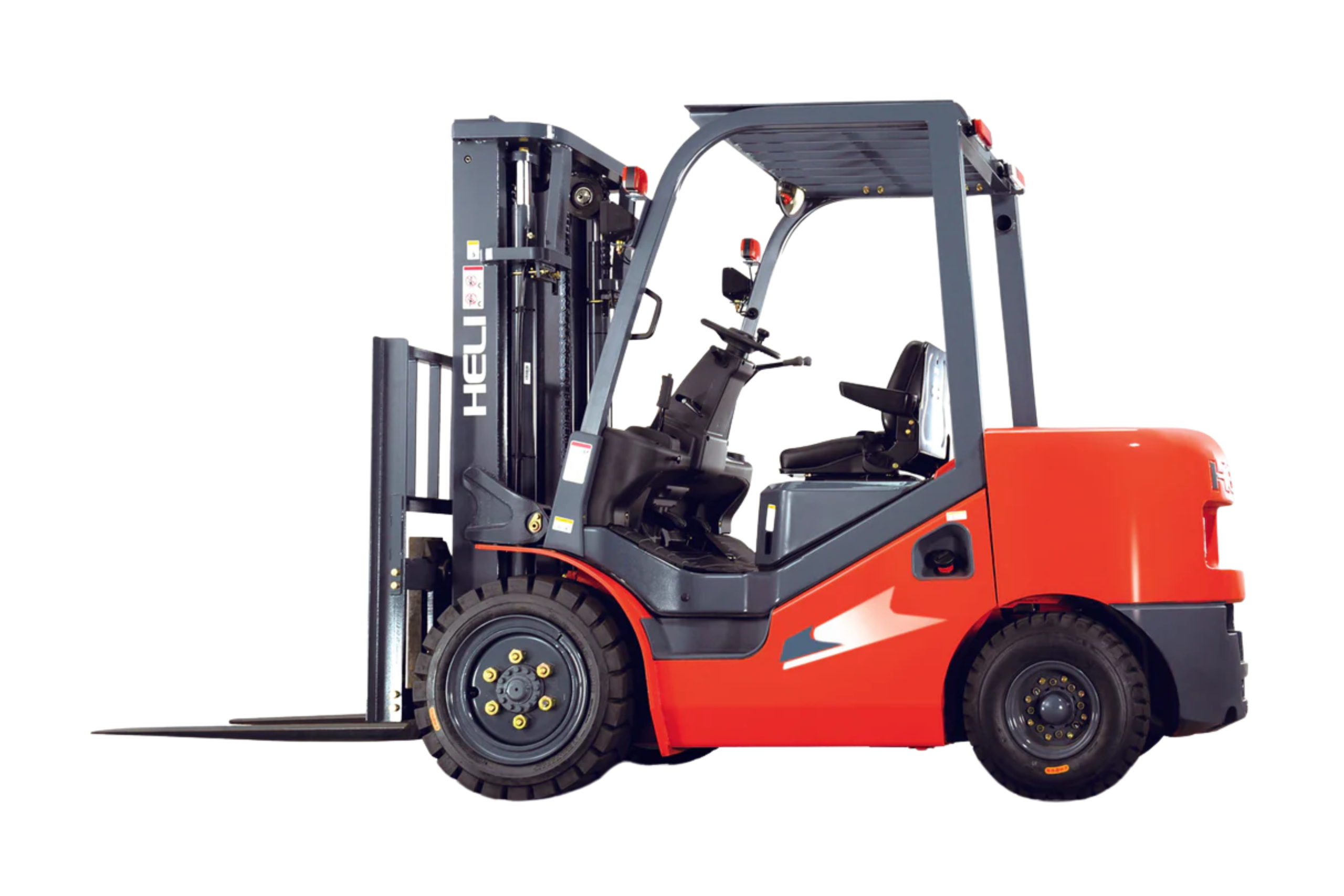

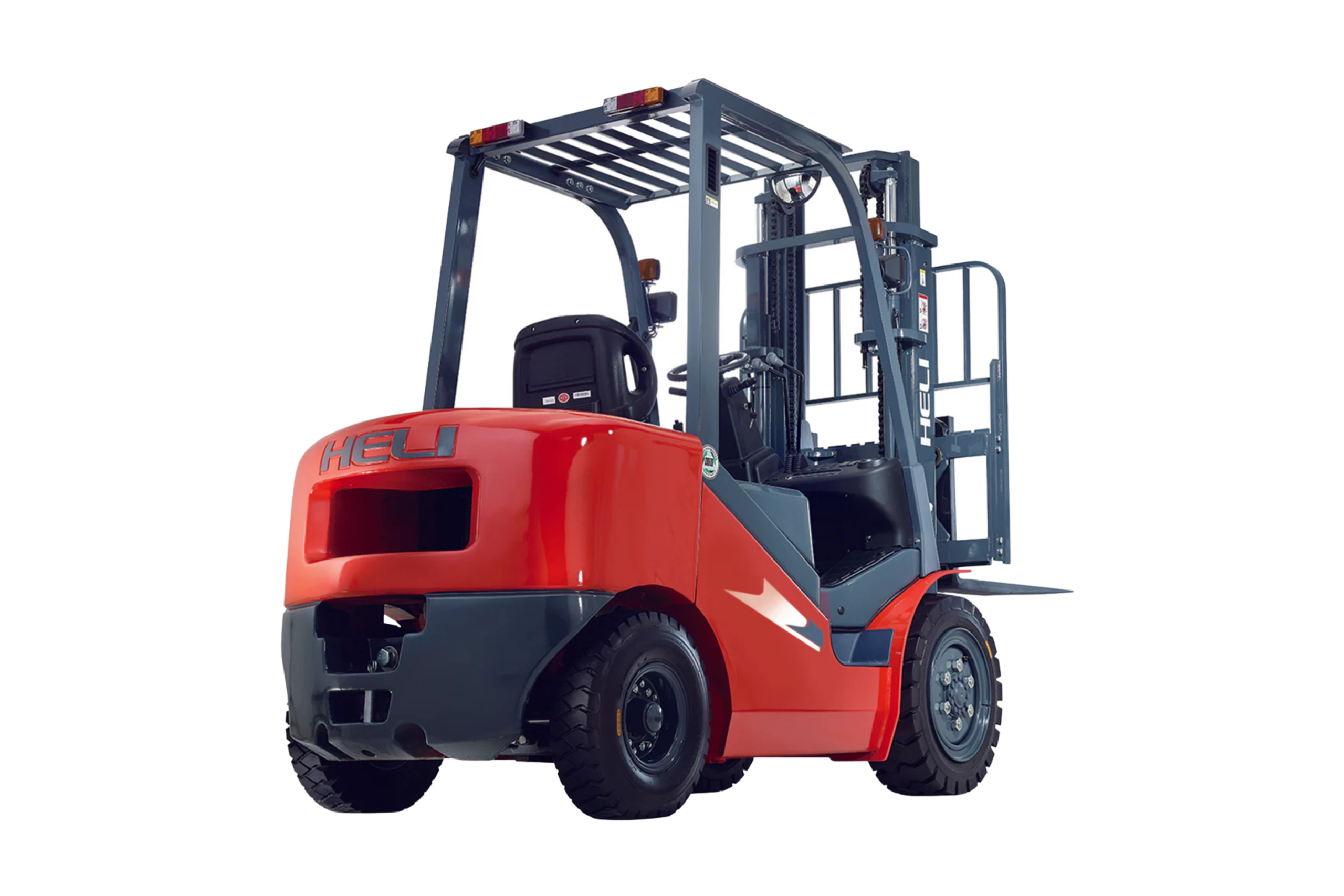

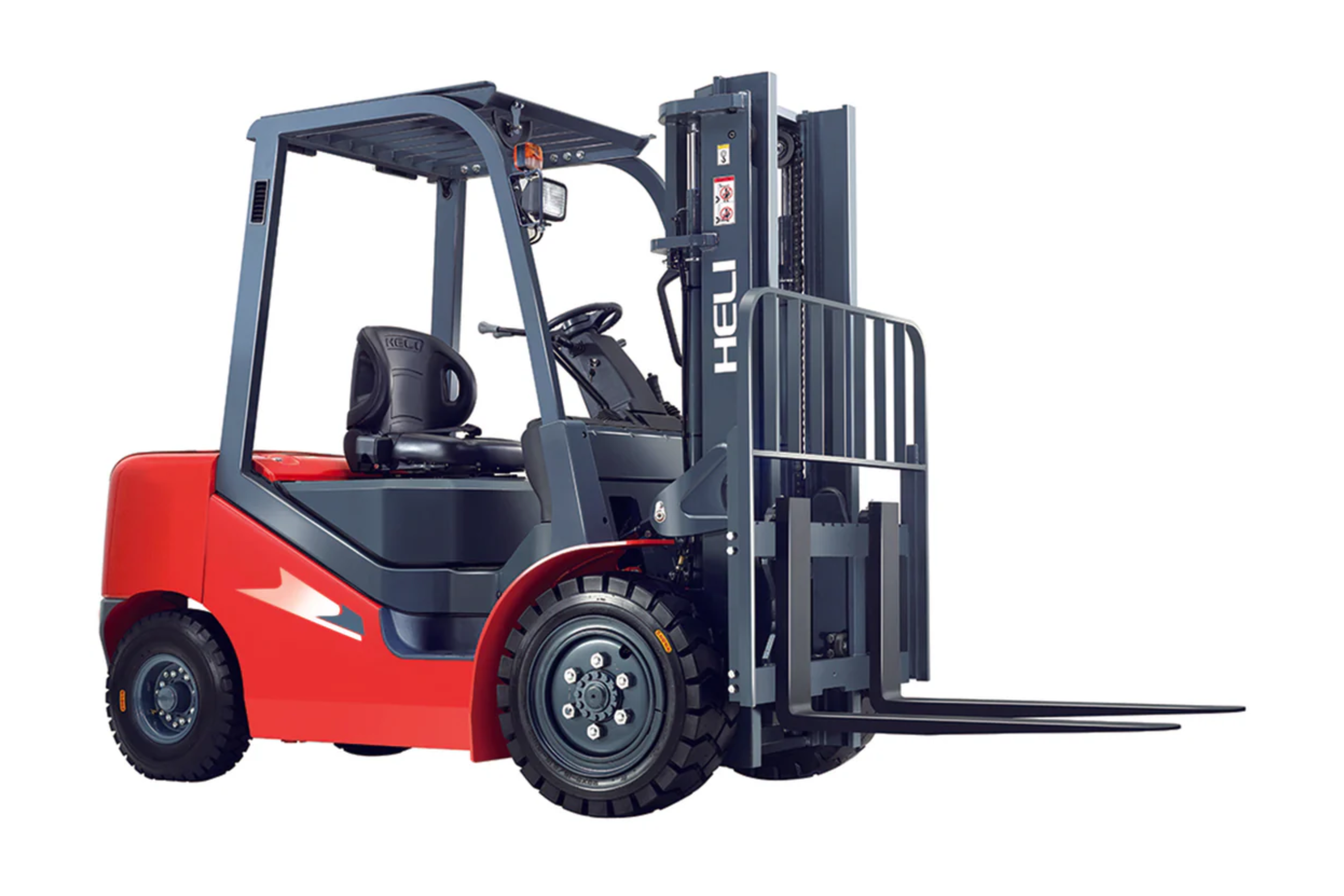

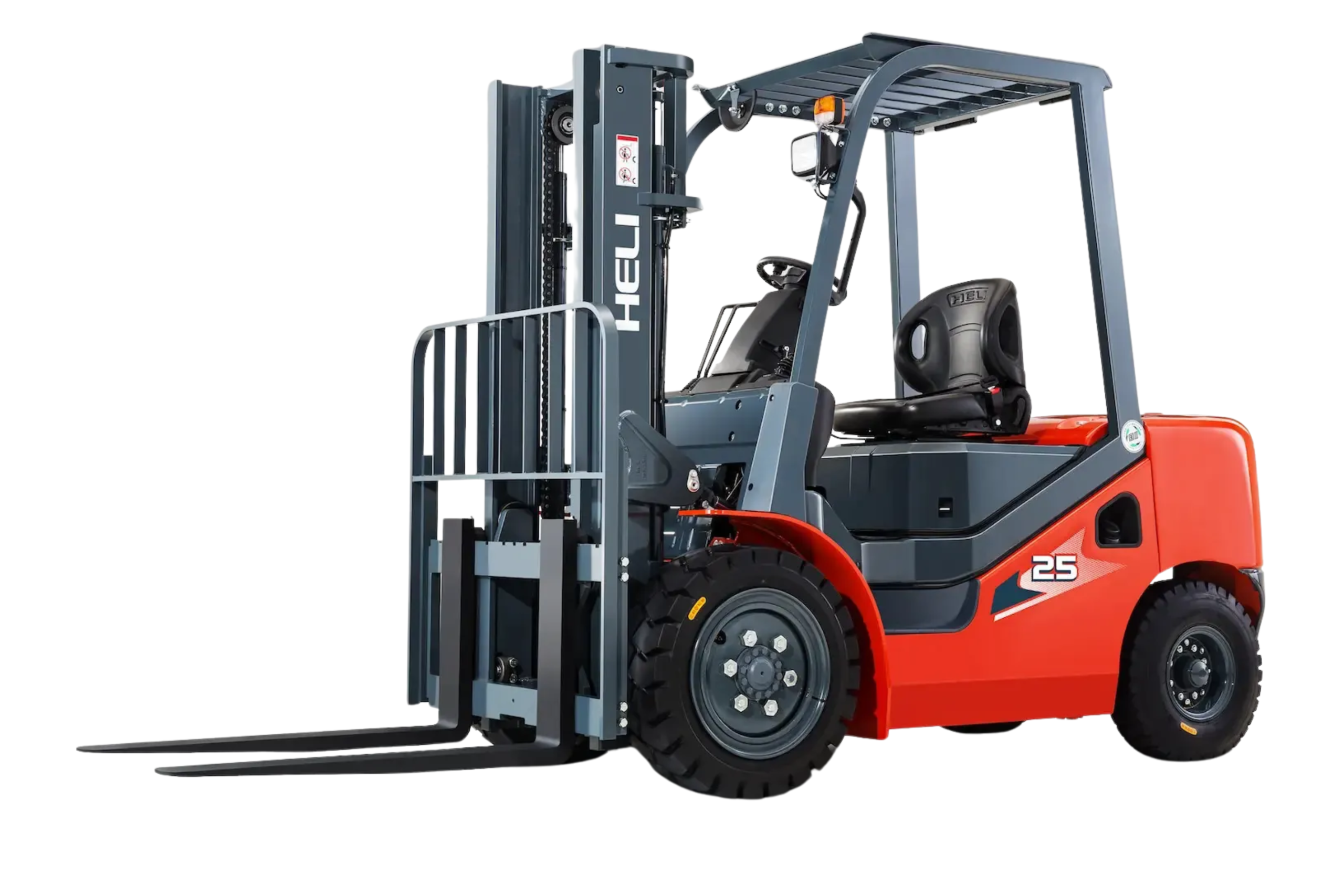

The HELI CPYD25 is a 2.5-ton (5,000 lb) LPG forklift from the H3C Series, designed for reliable indoor and outdoor performance. Powered by a Kubota engine, it delivers strong lifting capacity, smooth handling, and fuel-efficient operation. With its ergonomic design, wide-view mast, and durable build, the CPYD25 ensures safe, comfortable, and productive material handling in warehouses, logistics hubs, and manufacturing environments.
| Product Features | Description |
|---|---|

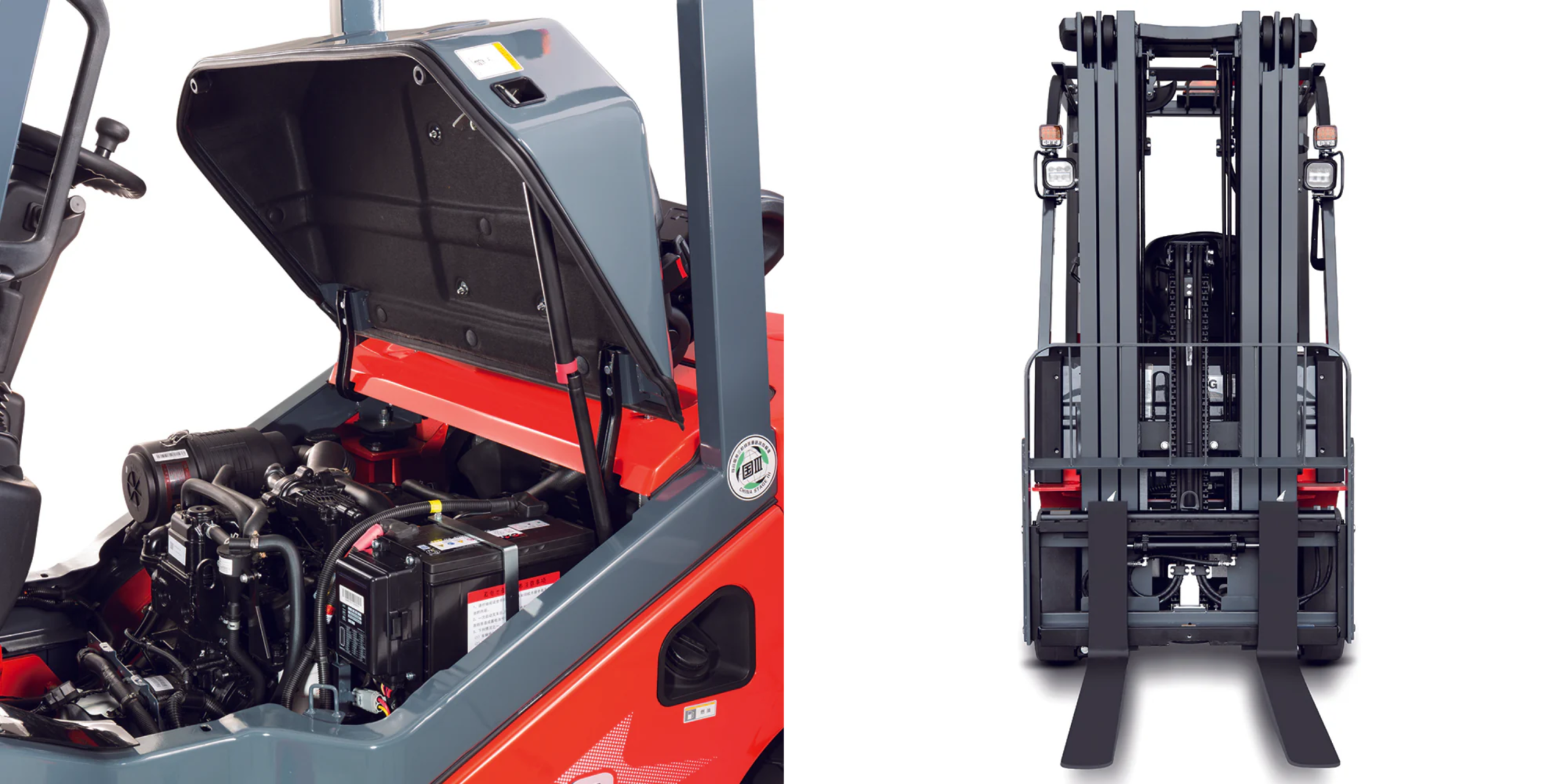

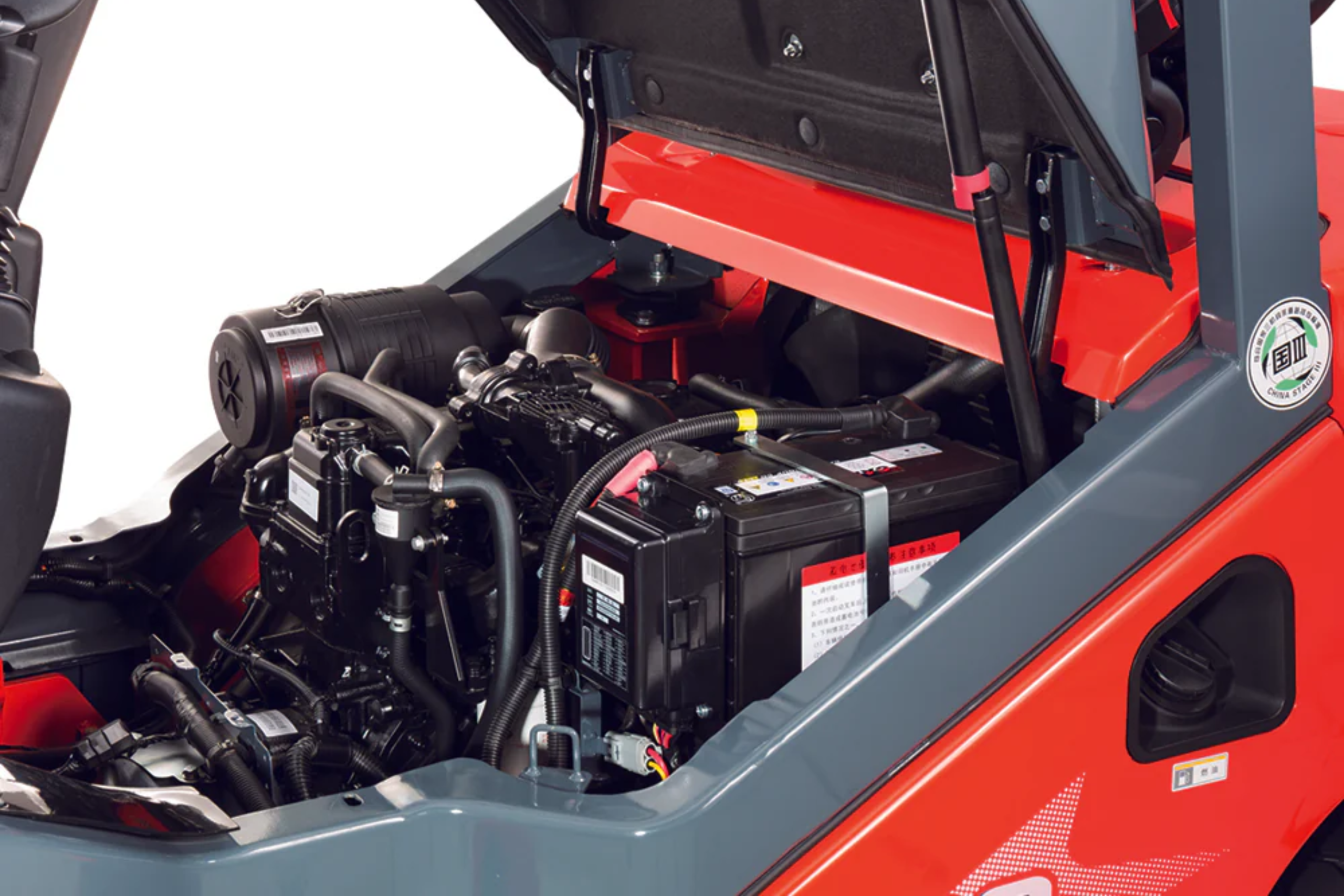

| Powerful LPG Engine | Equipped with a Kubota WG2503 LPG engine delivering strong torque, low emissions, and excellent fuel efficiency for demanding material handling applications. |

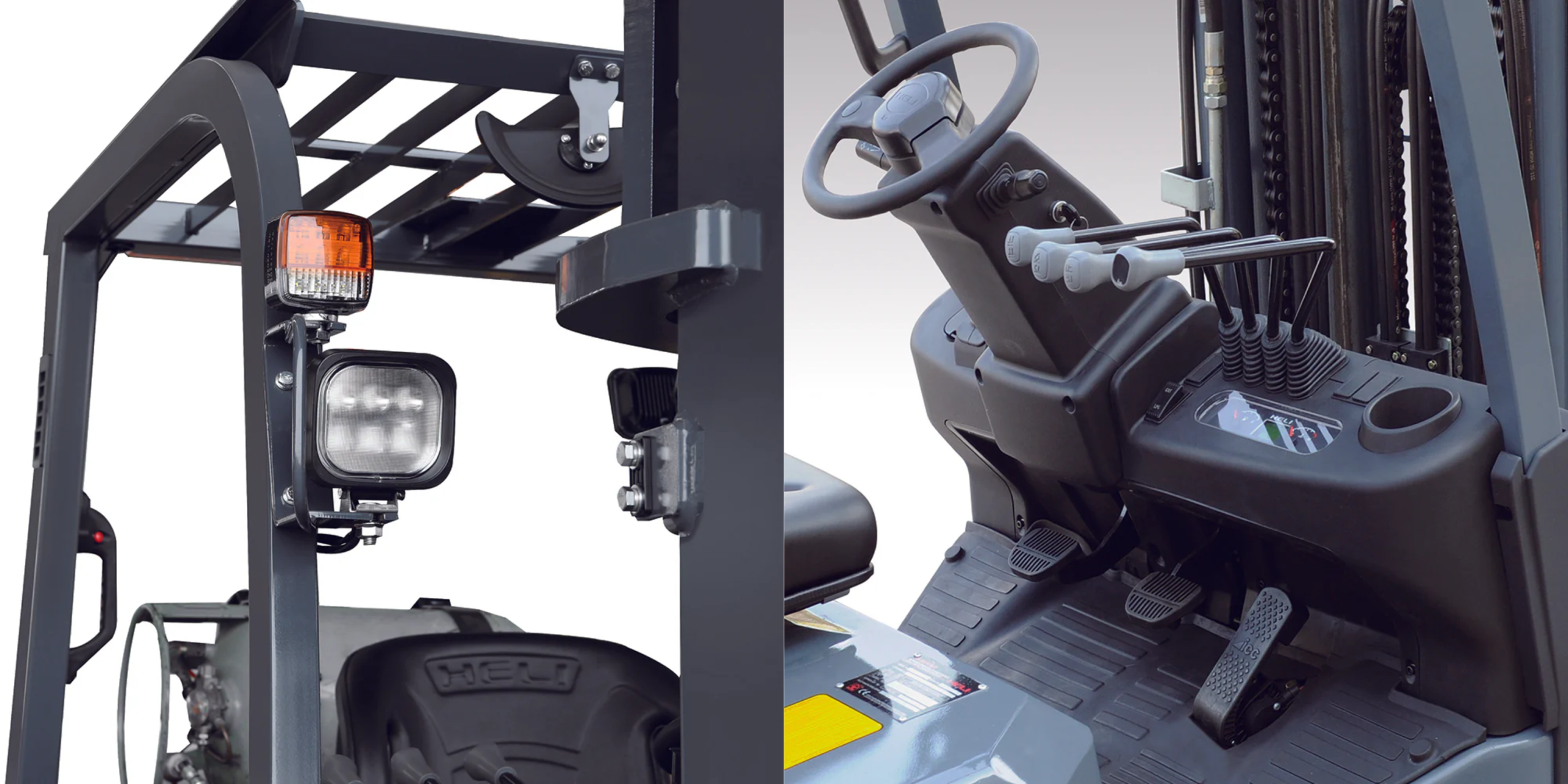

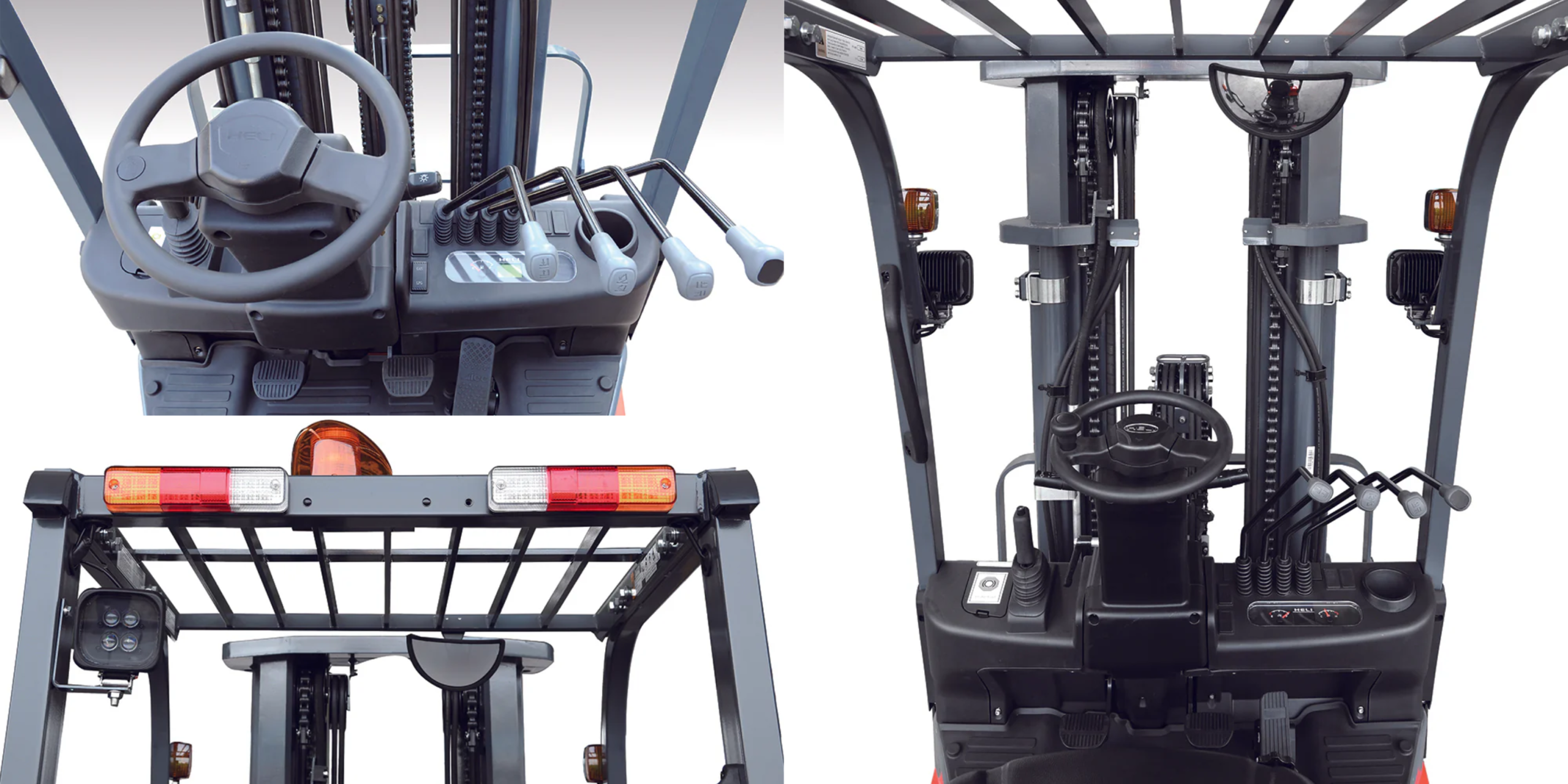

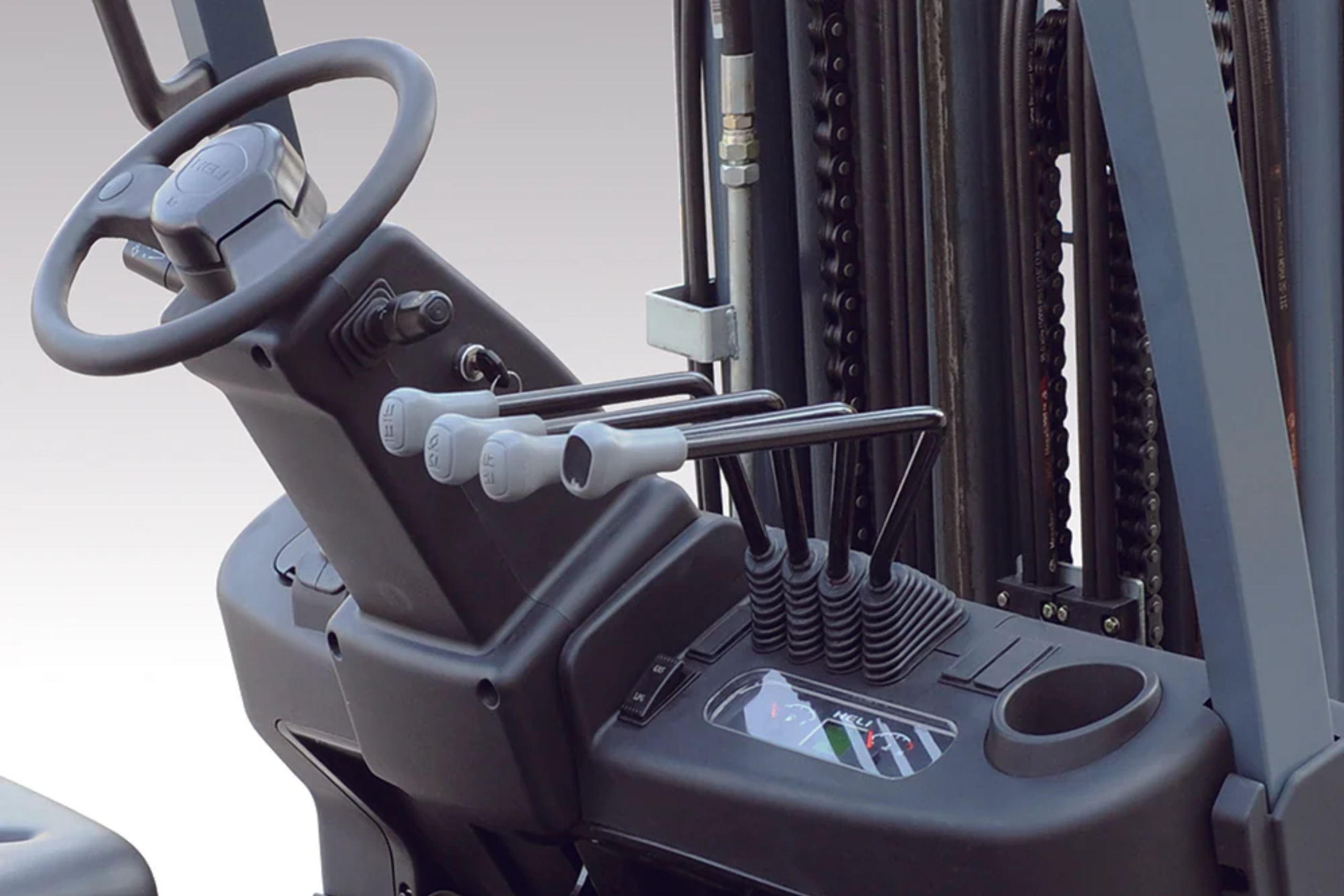

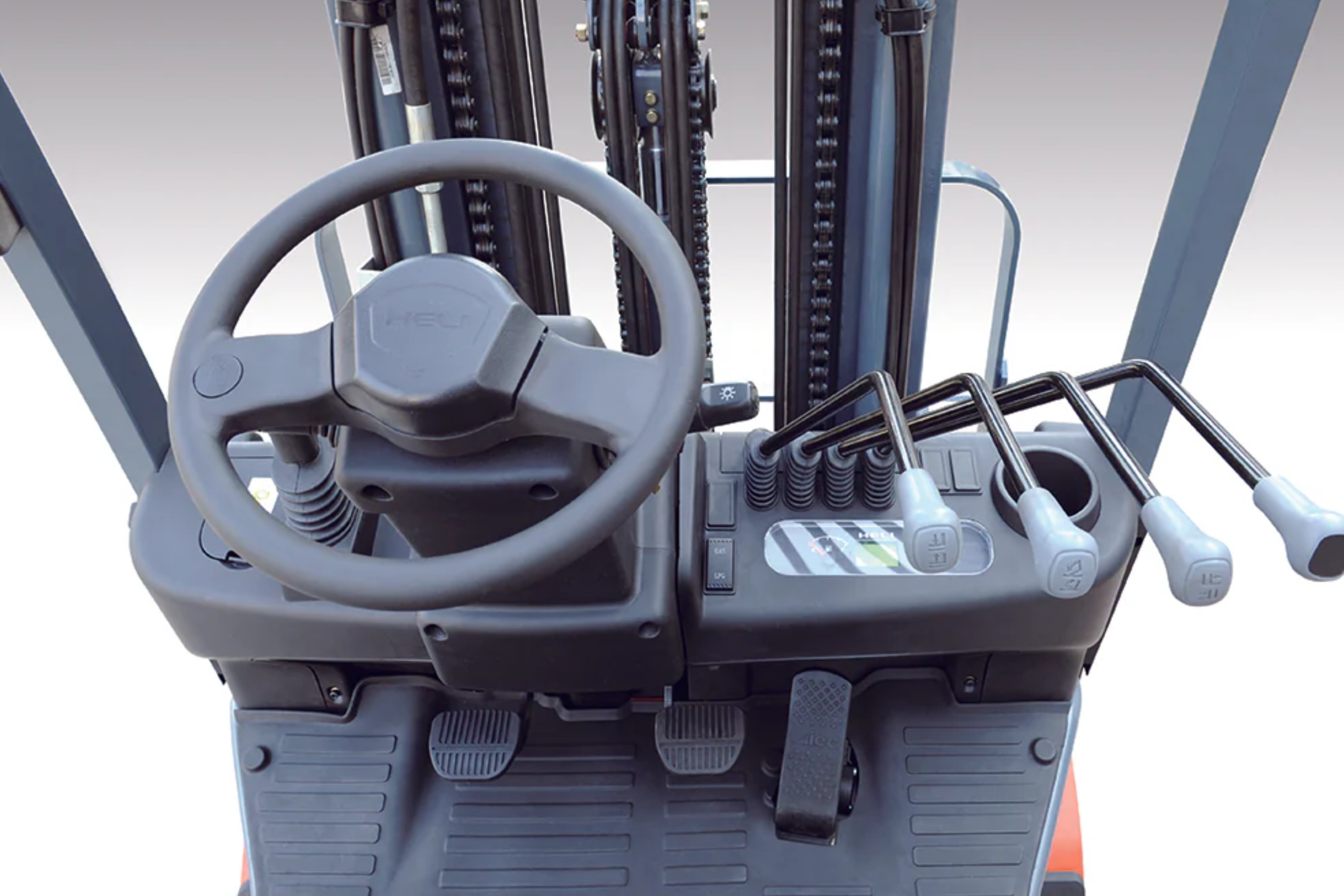

| Ergonomic Operator Compartment | Features a suspension seat, spacious footwell, and vibration-dampened layout to enhance operator comfort and reduce fatigue during long shifts. |
| Wide-View Mast | Optimized mast structure with smart hose routing provides superior forward visibility, improving safety and precision when lifting or stacking loads. |
| Reliable Safety Systems | Includes Operator Presence System (OPS), reinforced overhead guard, and hydraulic safety valves to ensure secure and stable operation. |
| Efficient Hydraulic & Transmission System | Energy-efficient hydraulic system and powershift transmission deliver smooth control, reduced fuel consumption, and consistent performance across lifting operations. |
| Specifications | Description |
|---|---|
| Load Capacity | 5,000 lb (2,500 kg) |
| Load Center | 24 in (600 mm) |
| Engine | Kubota WG2503 LPG engine for dependable performance and low emissions. |
| Rated Power | 58.3 HP at 2,600 RPM |
| Rated Torque | 120.7 lb-ft at 1,800 RPM |
| Lift Height (Maximum) | Up to 189 in (15 ft 9 in) with 3-stage mast |
| Lowered Mast Height | Approximately 83 in (7 ft) |
| Fork Dimensions | 42 in × 4.8 in × 1.57 in |
| Overall Width | 42 in (3 ft 6 in) |
| Turning Radius (Outside) | 78.7 in (6 ft 6.7 in) |
| Travel Speed (Laden / Unladen) | 10.8 mph (17.4 km/h) |
| Gradeability (Laden / Unladen) | 32% / 20% |
| Tire Type | Pneumatic (Standard) or Cushion (Optional) |
| Service Weight | Approximately 9,480 lb (4,300 kg) |
| Options | Description |
|---|---|
| Mast Configurations | Available in 2-stage or 3-stage masts with full free lift options to accommodate various lifting heights and operational needs. |
| Attachments | Compatible with a wide range of attachments including side shifters, fork positioners, paper roll clamps, bale clamps, rotators, and other specialized tools. |
| Operator Cabin Options | Standard overhead guard with optional enclosed cabin kit or weather protection package for enhanced outdoor operator comfort. |
| Tire Options | Standard pneumatic tires or optional solid rubber tires designed for specific ground and environmental conditions. |

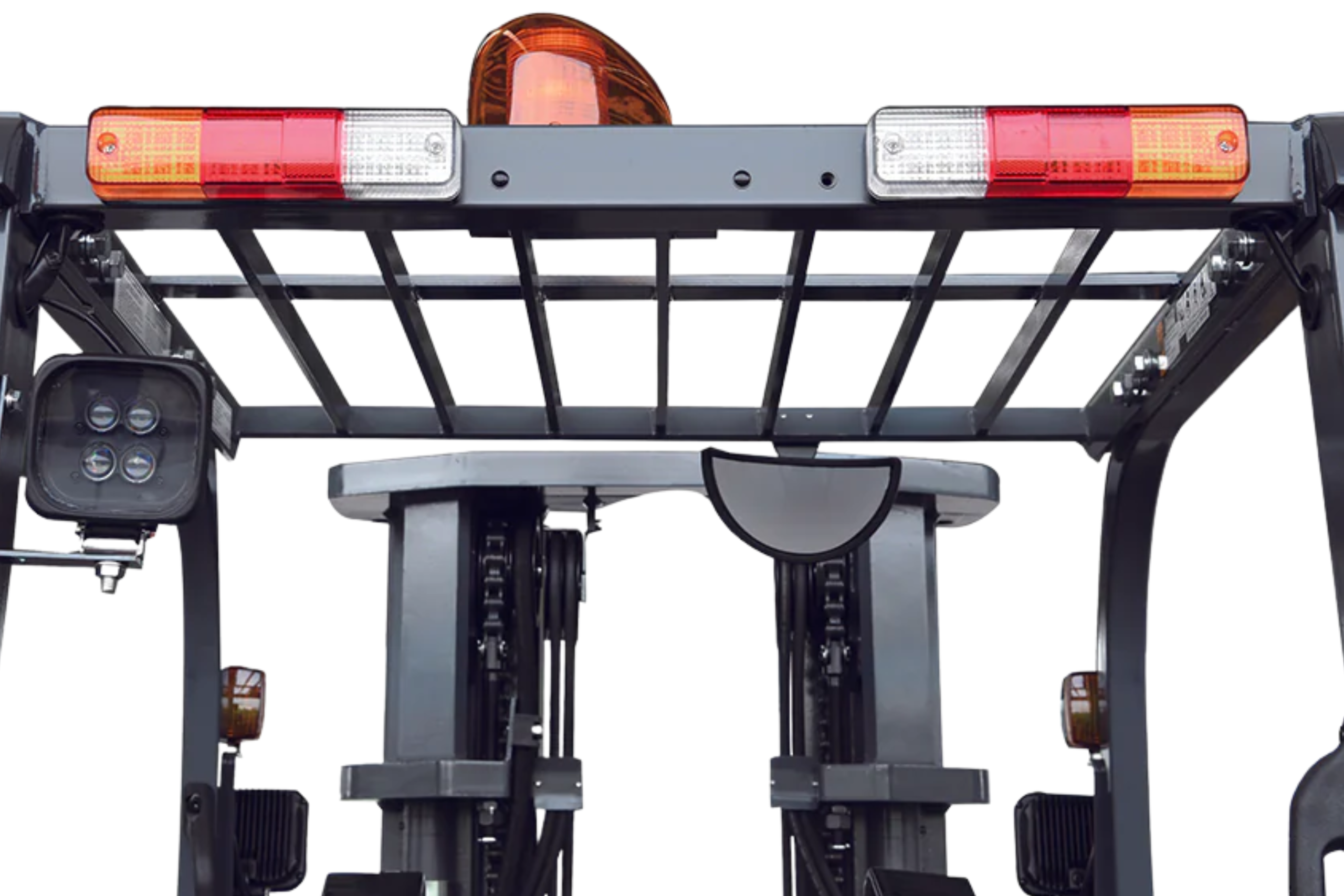

| Safety Enhancements | Includes LED lighting package, blue pedestrian safety spotlight, reverse alarm, and automatic speed reduction during turns for improved safety. |
| Customization & Accessories | Custom color and branding options, plus available accessories such as lifting hooks, cargo booms, and multi-function clamps for expanded utility. |
The HELI CPYD25 is a 2.5-ton (5,000 lb) LPG forklift from the H3C Series, designed for reliable indoor and outdoor performance. Powered by a Kubota engine, it delivers strong lifting capacity, smooth handling, and fuel-efficient operation. With its ergonomic design, wide-view mast, and durable build, the CPYD25 ensures safe, comfortable, and productive material handling in warehouses, logistics hubs, and manufacturing environments.
| Product Features | Description |
|---|---|
| Powerful LPG Engine | Equipped with a Kubota WG2503 LPG engine delivering strong torque, low emissions, and excellent fuel efficiency for demanding material handling applications. |
| Ergonomic Operator Compartment | Features a suspension seat, spacious footwell, and vibration-dampened layout to enhance operator comfort and reduce fatigue during long shifts. |
| Wide-View Mast | Optimized mast structure with smart hose routing provides superior forward visibility, improving safety and precision when lifting or stacking loads. |
| Reliable Safety Systems | Includes Operator Presence System (OPS), reinforced overhead guard, and hydraulic safety valves to ensure secure and stable operation. |
| Efficient Hydraulic & Transmission System | Energy-efficient hydraulic system and powershift transmission deliver smooth control, reduced fuel consumption, and consistent performance across lifting operations. |
| Specifications | Description |
|---|---|
| Load Capacity | 5,000 lb (2,500 kg) |
| Load Center | 24 in (600 mm) |
| Engine | Kubota WG2503 LPG engine for dependable performance and low emissions. |
| Rated Power | 58.3 HP at 2,600 RPM |
| Rated Torque | 120.7 lb-ft at 1,800 RPM |
| Lift Height (Maximum) | Up to 189 in (15 ft 9 in) with 3-stage mast |
| Lowered Mast Height | Approximately 83 in (7 ft) |
| Fork Dimensions | 42 in × 4.8 in × 1.57 in |
| Overall Width | 42 in (3 ft 6 in) |
| Turning Radius (Outside) | 78.7 in (6 ft 6.7 in) |
| Travel Speed (Laden / Unladen) | 10.8 mph (17.4 km/h) |
| Gradeability (Laden / Unladen) | 32% / 20% |
| Tire Type | Pneumatic (Standard) or Cushion (Optional) |
| Service Weight | Approximately 9,480 lb (4,300 kg) |
| Options | Description |
|---|---|
| Mast Configurations | Available in 2-stage or 3-stage masts with full free lift options to accommodate various lifting heights and operational needs. |
| Attachments | Compatible with a wide range of attachments including side shifters, fork positioners, paper roll clamps, bale clamps, rotators, and other specialized tools. |
| Operator Cabin Options | Standard overhead guard with optional enclosed cabin kit or weather protection package for enhanced outdoor operator comfort. |
| Tire Options | Standard pneumatic tires or optional solid rubber tires designed for specific ground and environmental conditions. |
| Safety Enhancements | Includes LED lighting package, blue pedestrian safety spotlight, reverse alarm, and automatic speed reduction during turns for improved safety. |
| Customization & Accessories | Custom color and branding options, plus available accessories such as lifting hooks, cargo booms, and multi-function clamps for expanded utility. |
