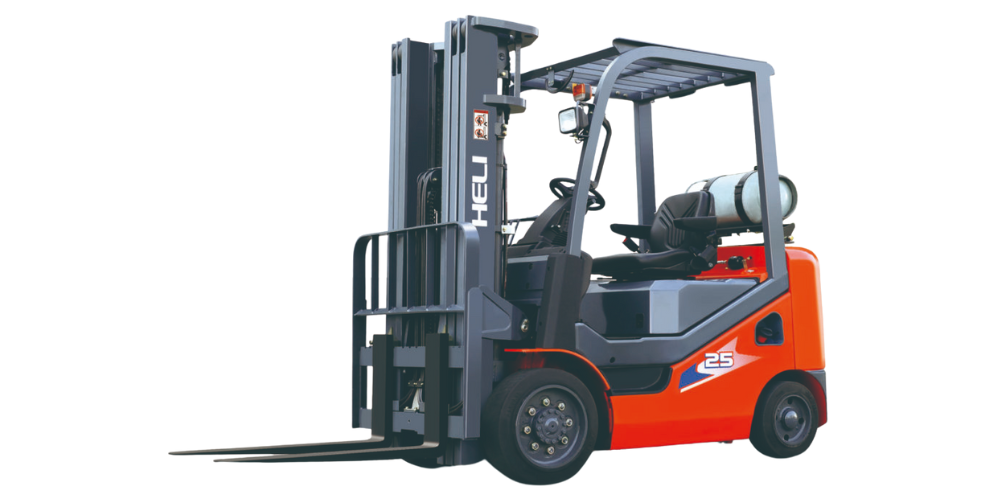

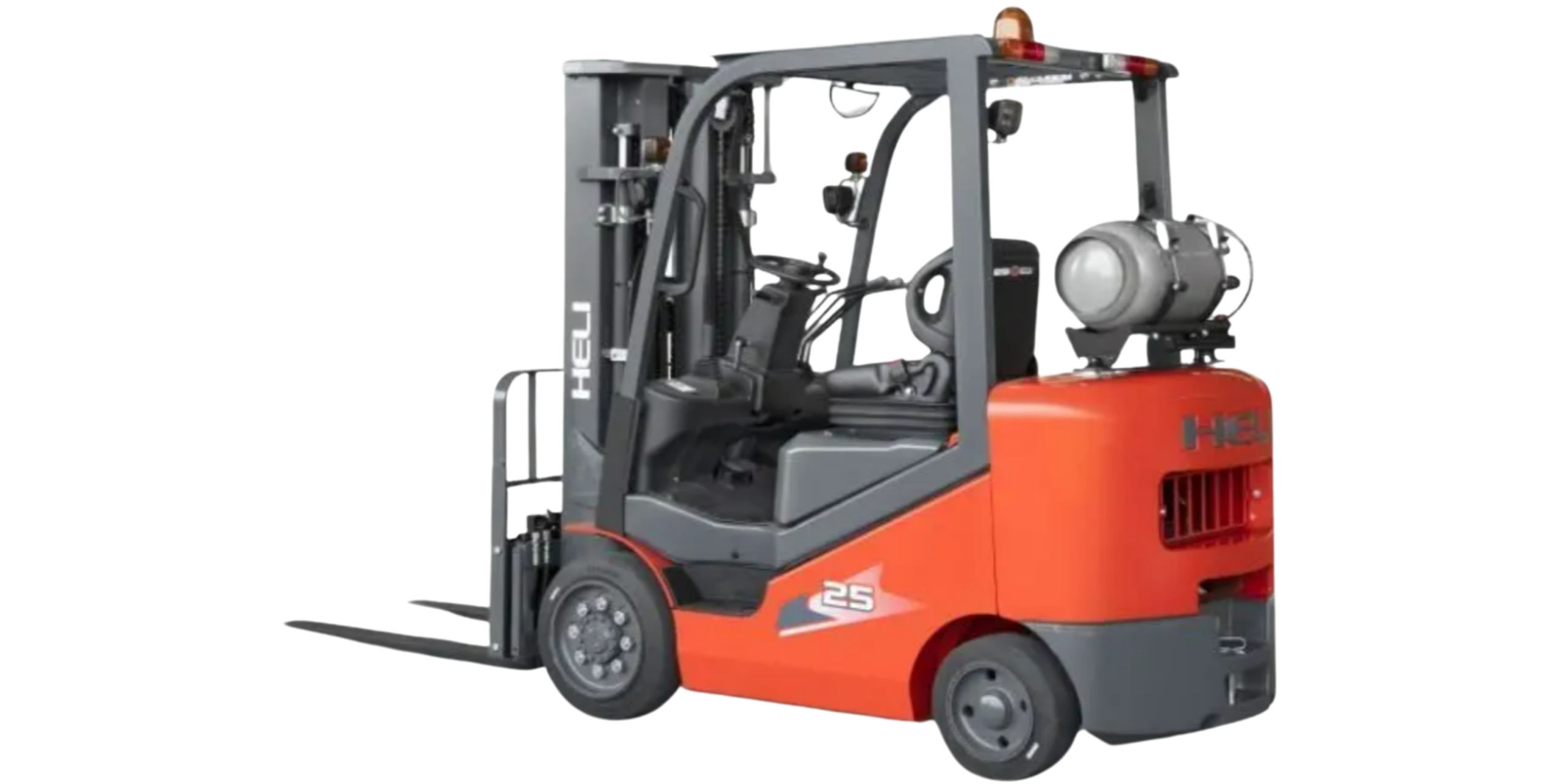

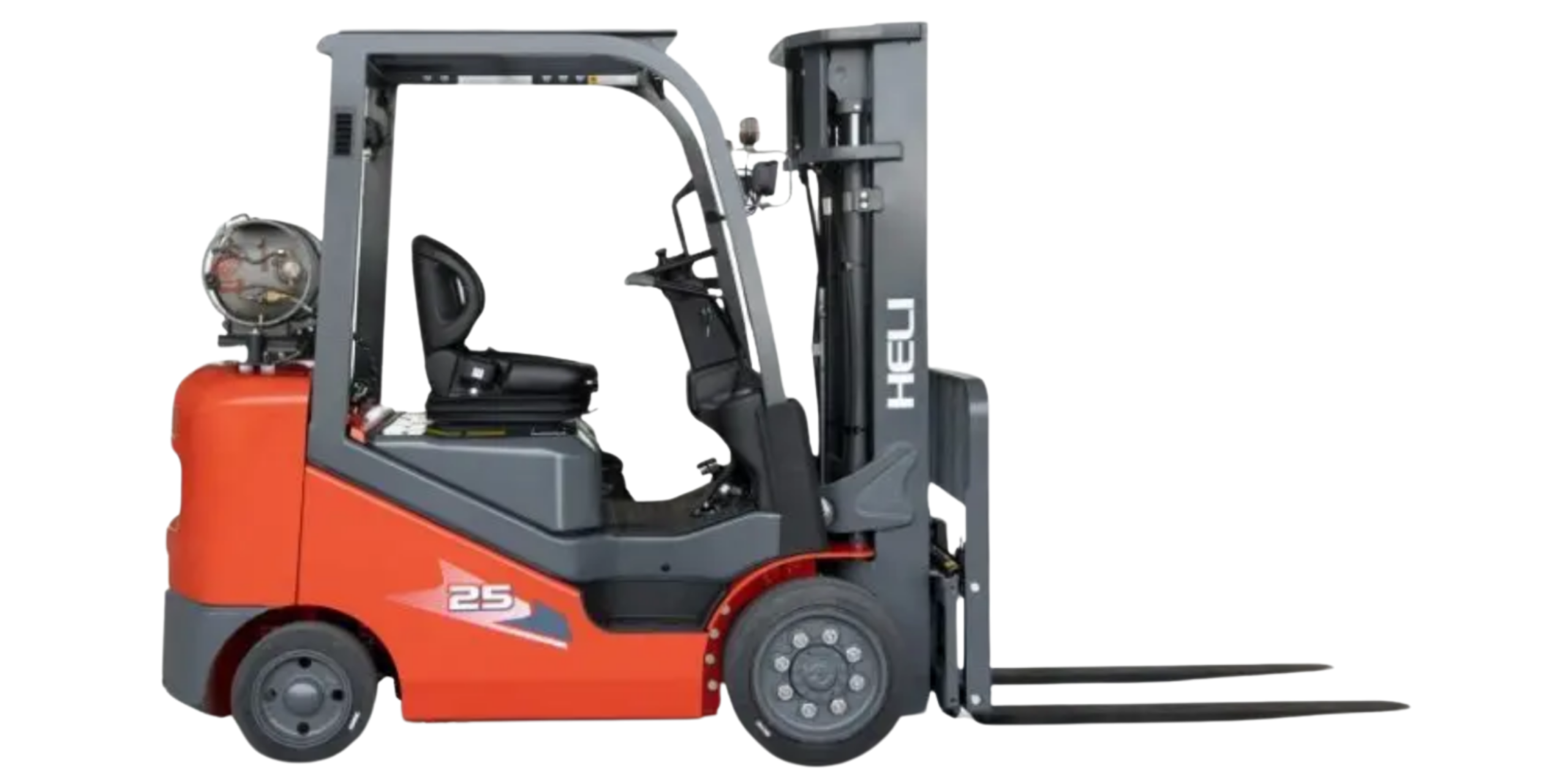

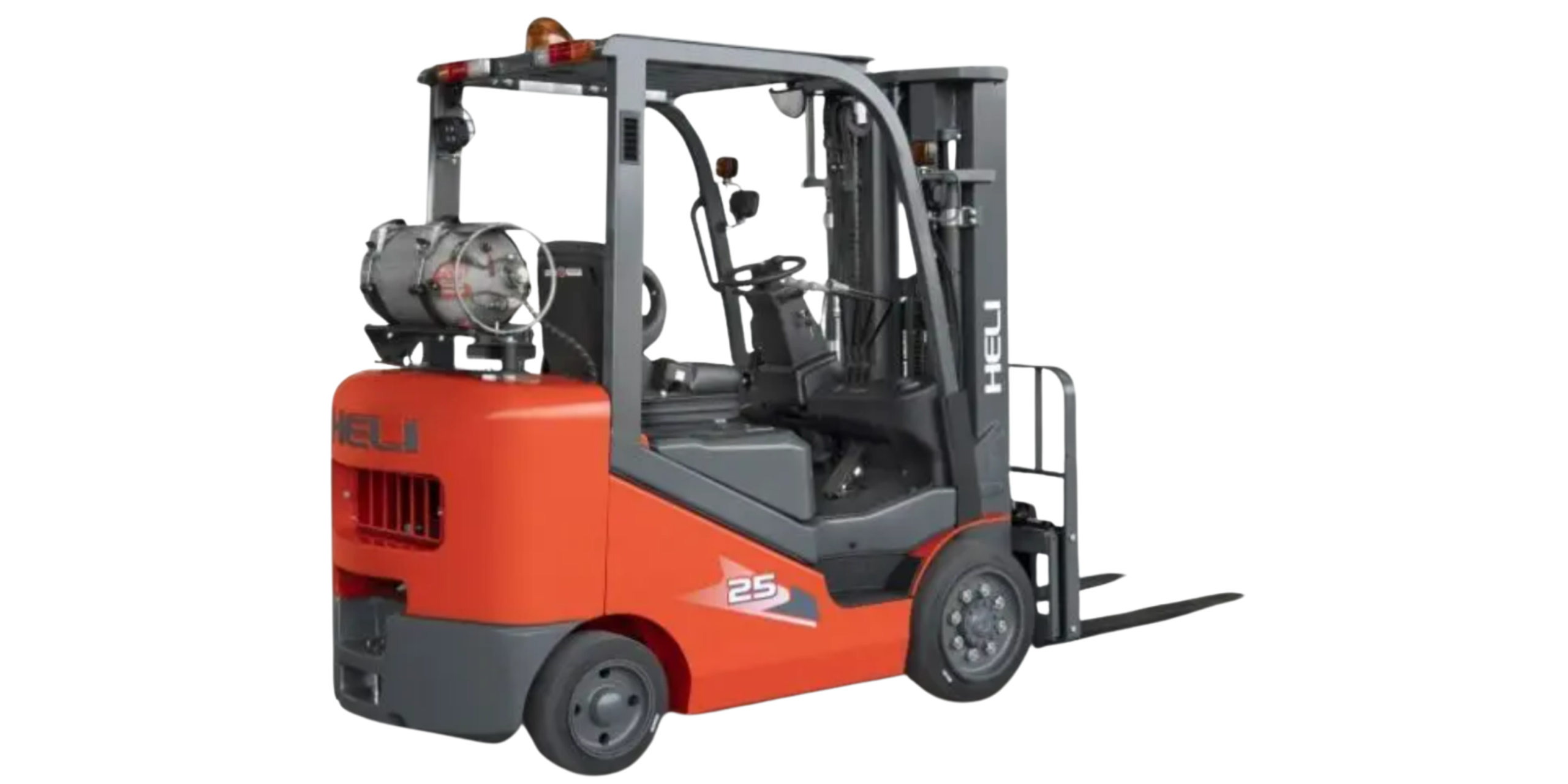

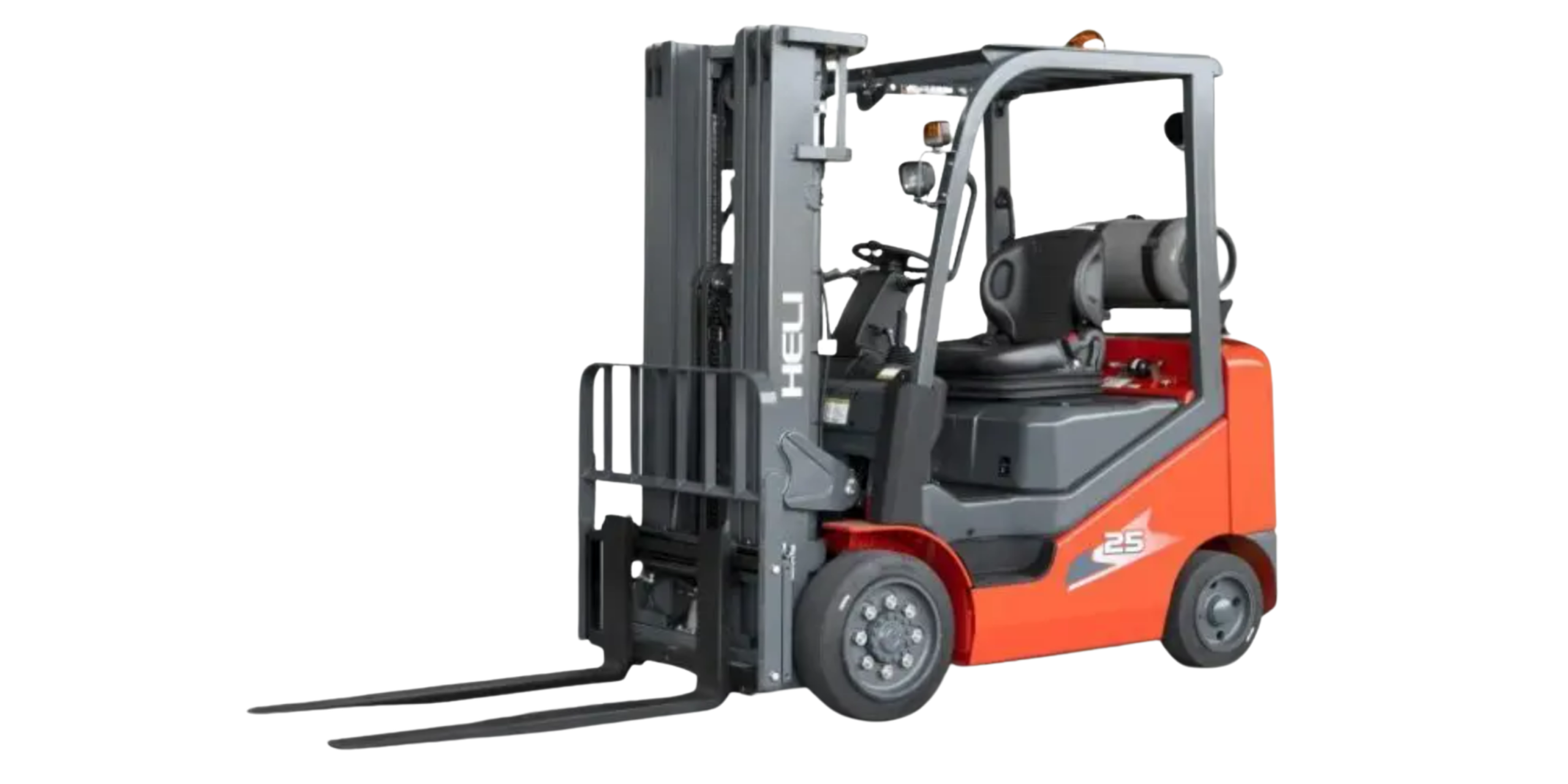

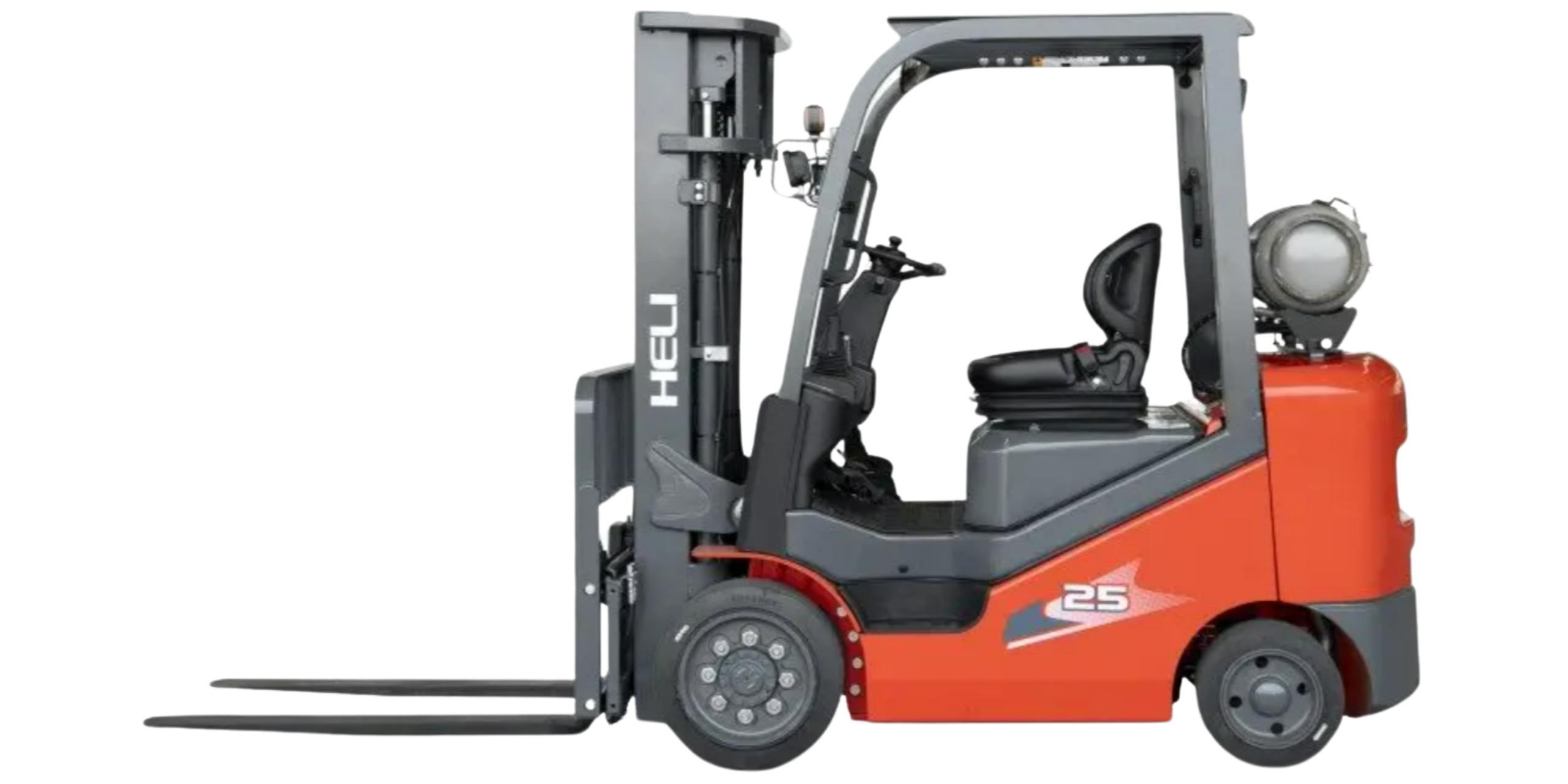

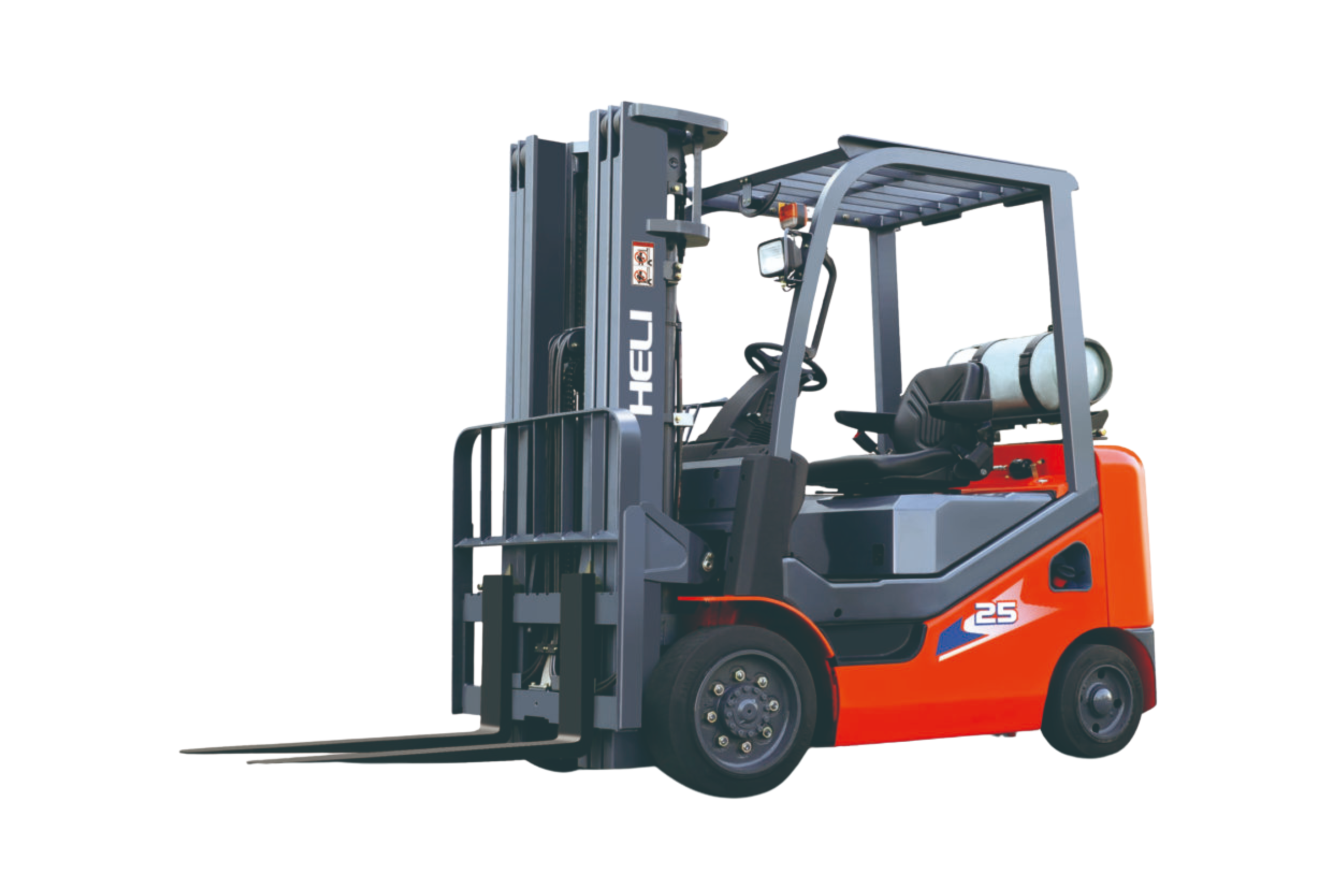

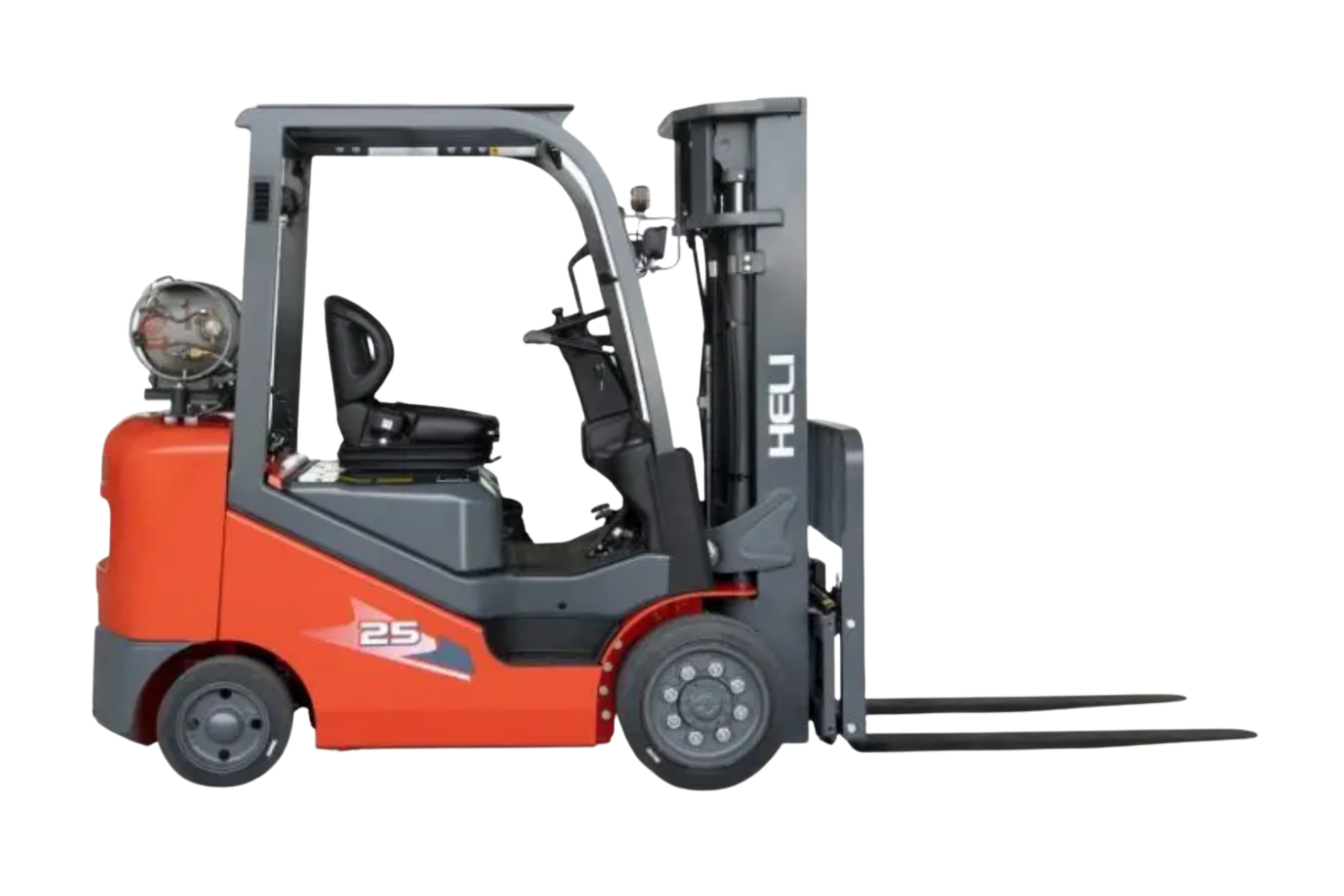

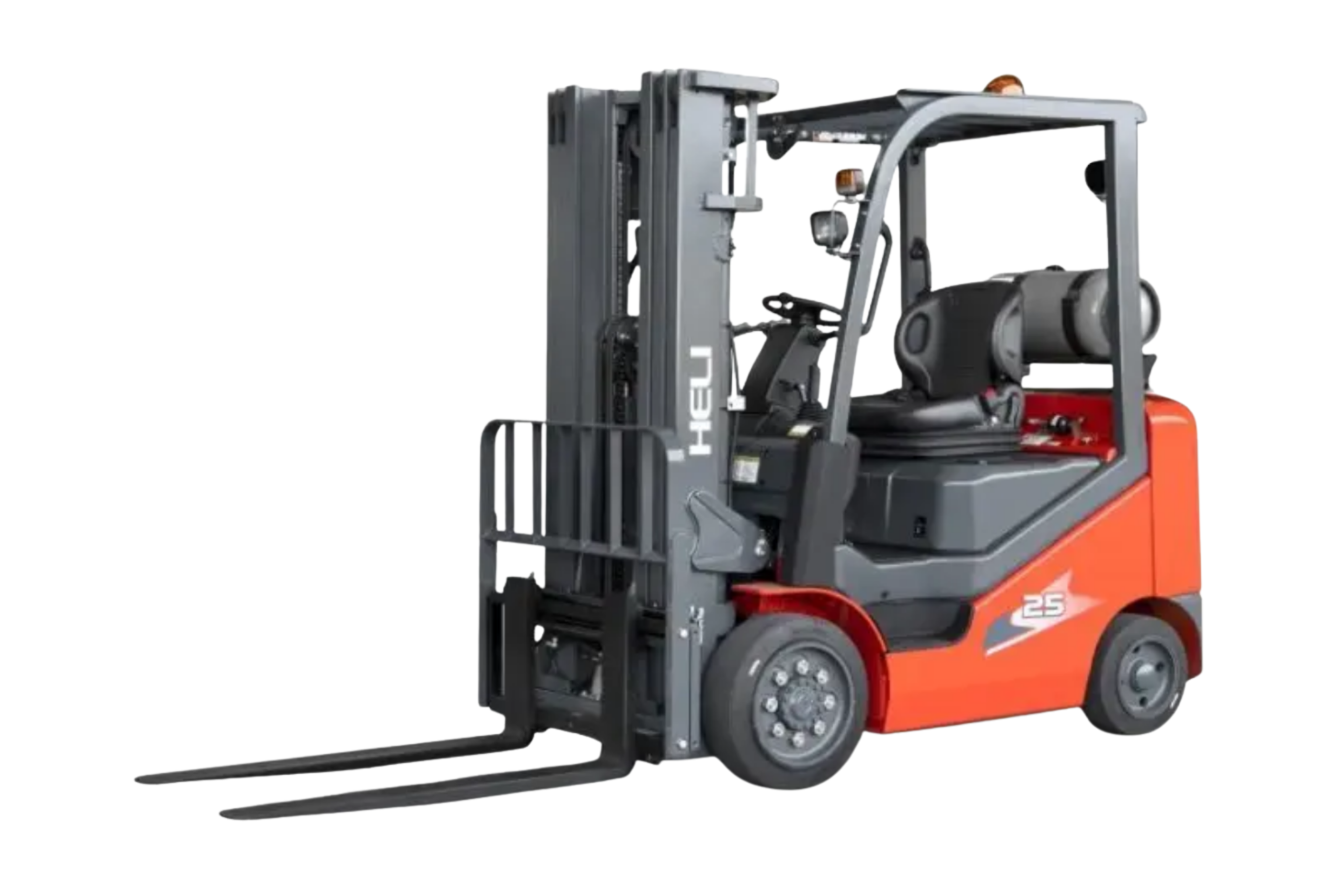

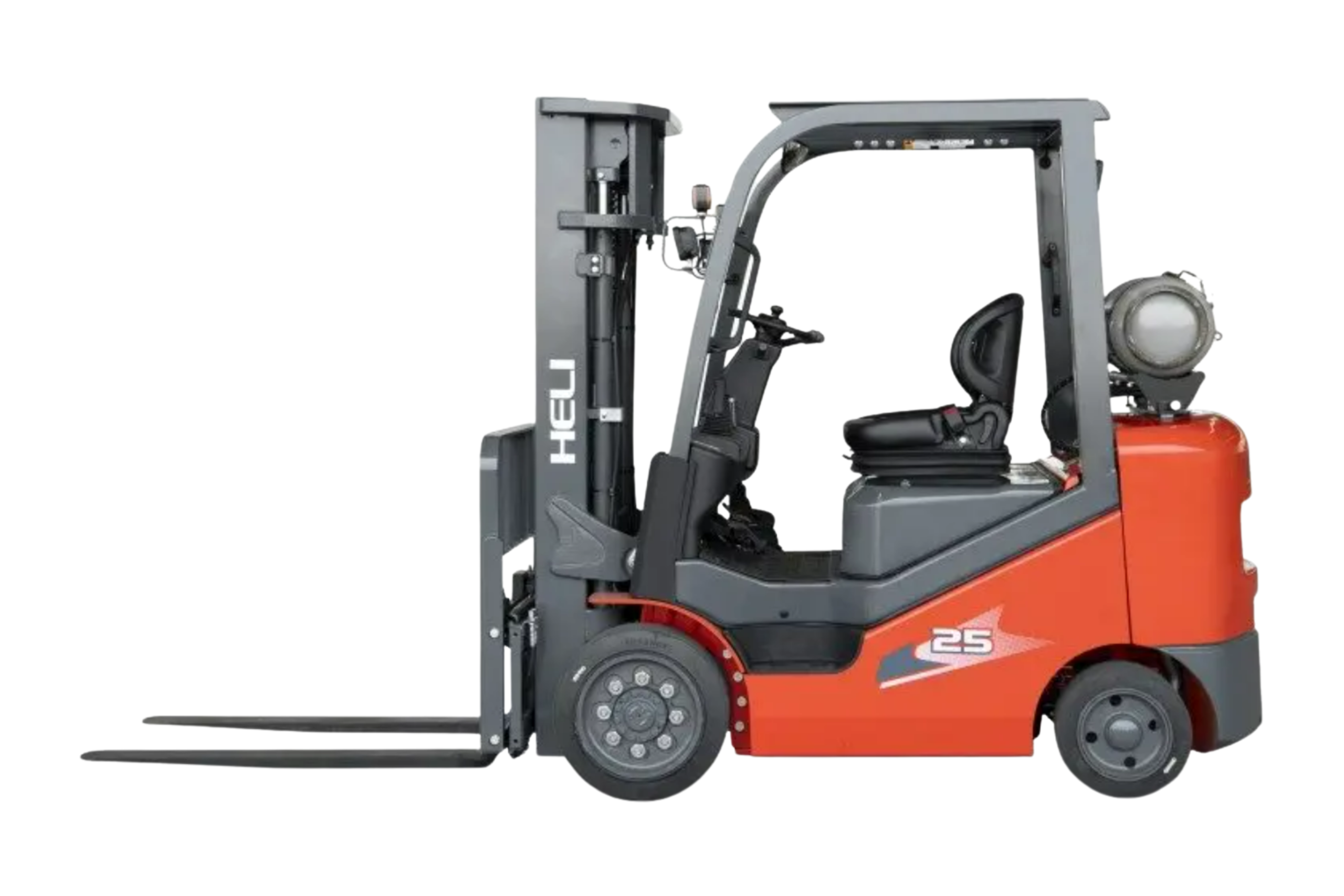

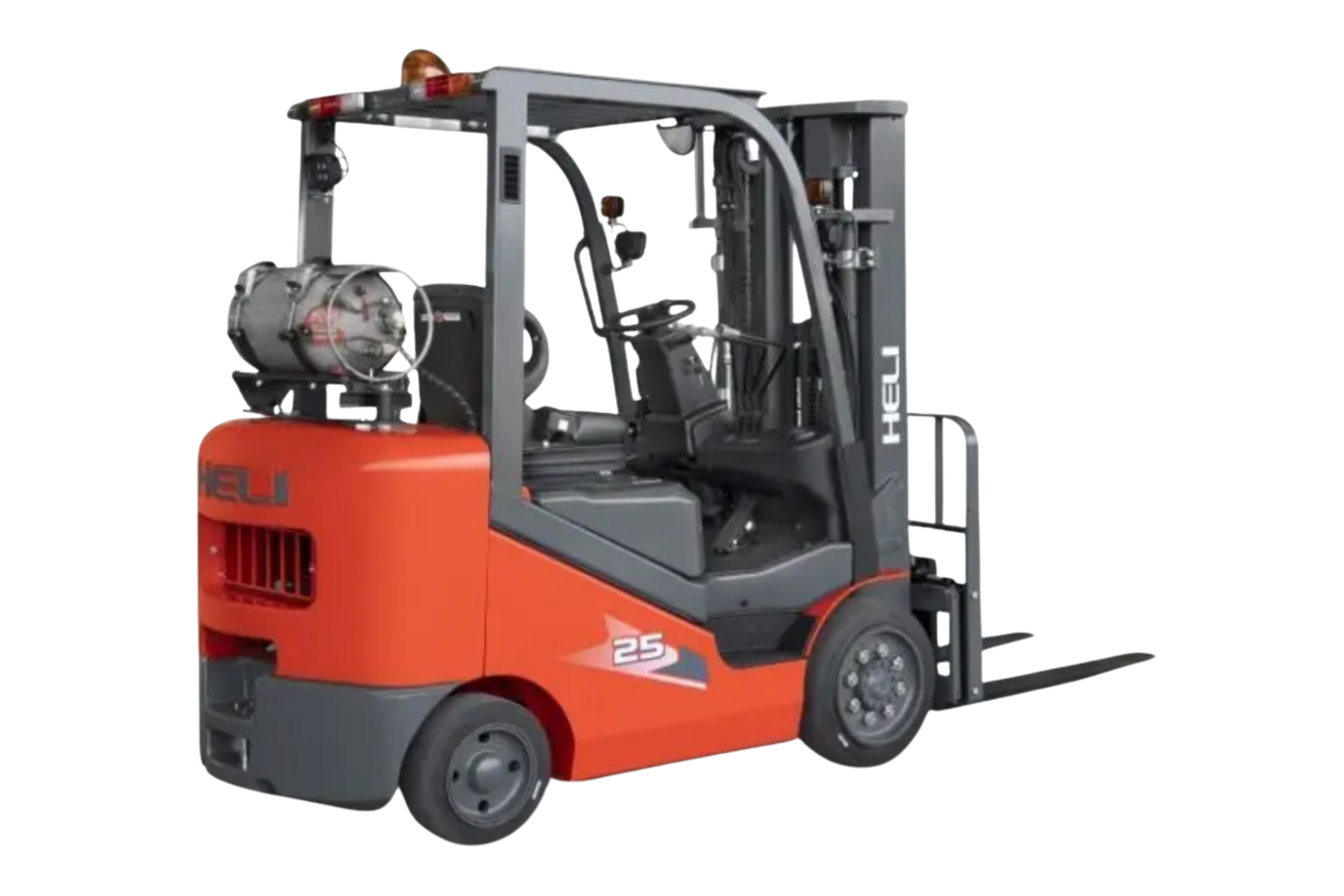

The HELI CPYD25C is a 2.5-ton LPG-powered forklift from HELI’s H3C Series, engineered for high efficiency, operator comfort, and safety in demanding environments such as warehouses, manufacturing plants, and logistics centers. It combines advanced ergonomics, robust construction, and enhanced maneuverability, making it ideal for both indoor and outdoor operations.
| Product Features | Description |
|---|---|
| LPG Power with Kubota WG2503 | Proven 2.5 L LPG industrial engine delivering approximately 58 hp for strong torque and reliable performance in the 5,000 lb (2.5 t) class. |
| Powershift Transmission | 1-1 powershift transmission provides smooth directional shifts and consistent traction for warehouse and yard operations. |
| Wide-View Mast Design | Optimized mast and carriage geometry reduces blind spots and enhances forward visibility during lifting and transport. |
| Stable, Easy Handling | Balanced chassis and optimized steering geometry allow a tight turning radius and stable maneuvering in narrow aisles. |
| Comfort-Focused Operator Area | Ergonomic layout with low-effort levers, adjustable steering, and vibration-dampened seat minimizes operator fatigue during long shifts. |
| Enhanced Cooling & Durability | Engine layout designed for steady heat management and long component life during continuous-duty operations. |
| Core Safety Features | Neutral-start interlock, overhead guard, and clear mast sightlines improve operator and workplace safety. |
| Optional Performance Packages | Available factory options include oil-wet brakes, mini-levers, speed limiter, and fleet-management readiness. |
| Lighting & Visibility Options | LED work lights, beacon, blue-spot, and backup alarm options enhance visibility in active work environments. |
| Attachment-Ready Hydraulics | Auxiliary valve configurations compatible with common attachments such as side-shifters and fork positioners. |
| Specifications | Description |
|---|---|
| Load Capacity | 5,000 lb (2,500 kg) |
| Load Center | 24 in (600 mm) |
| Power / Engine | Kubota WG2503 (LPG) engine delivering approximately 58.3 HP at 2,600 RPM. |
| Rated Torque | Approximately 120.7 lb-ft at 1,800 RPM. |
| Transmission / Drive | 1-1 Powershift Transmission for smooth operation and reliable traction. |
| Maximum Travel Speed (Loaded / Unloaded) | 10.8 mph (17.4 km/h). |
| Lift Speed (Loaded / Unloaded) | 96 / 106 ft/min (0.49 / 0.54 m/s). |
| Lowering Speed (Loaded / Unloaded) | 88 / 98 ft/min. |
| Maximum Gradeability (Laden / Unladen) | 32% / 20%. |
| Tire Type | Cushion Tires – Front 21×7-15, Rear 16×6-10.5. |
| Overall Length (With / Without Forks) | 136.8 in / 94.5 in. |
| Wheelbase | 58 in. |
| Overall Width | 42 in. |
| Turning Radius (Outside) | 78.7 in. |
| Overhead Guard Height | 83 in. |
| Ground Clearance (Mast) | 3.5 in. |
| Fork Size / Dimensions | 42 in × 4.8 in × 1.57 in. |
| Service Weight (Including Battery) | Approximately 9,480 lb (4,300 kg). |
| Mast Tilt Angle (Front / Back) | 6° / 5°. |
| Mast Options | Two-stage (standard), Three-stage (optional), Four-stage (optional, region-specific). |
| Noise Level at Operator Ear | ≤ 75 dB(A). |
| Operator Comfort Features | Ergonomic controls, low-vibration mount system, and wide-view mast for superior visibility. |
| Options | Description |
|---|---|
| Mast Configurations | Two-stage (Standard), Three-stage Full Free Lift, or Four-stage Extended Reach mast options depending on application. |
| Fork Lengths | 42 in (Standard), with optional 45 in or 48 in forks available for various pallet sizes. |
| Attachment Options | Compatible with side shifters, fork positioners, paper roll clamps, bale clamps, and rotator attachments. |
| Cabin / Overhead Guard | Standard overhead guard; optional enclosed operator cabin with heater or fan for outdoor or cold environments. |
| Seat Type | Standard suspension seat; optional full-suspension ergonomic seat with adjustable armrests for enhanced comfort. |
| Lighting & Safety Equipment | LED headlamps, rear combination lights, beacon light, blue safety spotlight, and reverse alarm available as optional safety packages. |
| Tire Options | Standard cushion tires; optional solid pneumatic tires for mixed indoor and outdoor use. |
| Steering Wheel & Control Levers | Standard mechanical levers; optional fingertip mini-lever hydraulic controls for precision handling. |
| Color / Branding | Standard HELI red-orange finish; custom color schemes available for fleet or corporate branding. |
| Engine Configuration | Standard LPG engine; optional dual-fuel system (LPG/Gasoline) for flexible operations. |
| Operator Environment | Optional tilt steering column, rear grab handle with horn button, and fan kit for improved comfort and usability. |
| Cooling & Air Filtration | Optional high-capacity radiator and heavy-duty air filter for operations in dusty or high-temperature environments. |
| Fleet Management Ready | Optional telemetry and fleet tracking system for usage monitoring, performance analytics, and maintenance scheduling. |
The HELI CPYD25C is a 5,000 lb LPG forklift from HELI’s H3C Series, designed for power, comfort, and efficiency in warehouse, manufacturing, and logistics operations. It delivers reliable performance, tight maneuverability, and versatile lifting for both indoor and light outdoor use.
| Product Features | Description |
|---|---|
| LPG Power with Kubota WG2503 | Proven 2.5 L LPG industrial engine delivering approximately 58 hp for strong torque and reliable performance in the 5,000 lb (2.5 t) class. |
| Powershift Transmission | 1-1 powershift transmission provides smooth directional shifts and consistent traction for warehouse and yard operations. |
| Wide-View Mast Design | Optimized mast and carriage geometry reduces blind spots and enhances forward visibility during lifting and transport. |
| Stable, Easy Handling | Balanced chassis and optimized steering geometry allow a tight turning radius and stable maneuvering in narrow aisles. |
| Comfort-Focused Operator Area | Ergonomic layout with low-effort levers, adjustable steering, and vibration-dampened seat minimizes operator fatigue during long shifts. |
| Enhanced Cooling & Durability | Engine layout designed for steady heat management and long component life during continuous-duty operations. |
| Core Safety Features | Neutral-start interlock, overhead guard, and clear mast sightlines improve operator and workplace safety. |
| Optional Performance Packages | Available factory options include oil-wet brakes, mini-levers, speed limiter, and fleet-management readiness. |
| Lighting & Visibility Options | LED work lights, beacon, blue-spot, and backup alarm options enhance visibility in active work environments. |
| Attachment-Ready Hydraulics | Auxiliary valve configurations compatible with common attachments such as side-shifters and fork positioners. |
| Specifications | Description |
|---|---|
| Load Capacity | 5,000 lb (2,500 kg) |
| Load Center | 24 in (600 mm) |
| Power / Engine | Kubota WG2503 (LPG) engine delivering approximately 58.3 HP at 2,600 RPM. |
| Rated Torque | Approximately 120.7 lb-ft at 1,800 RPM. |
| Transmission / Drive | 1-1 Powershift Transmission for smooth operation and reliable traction. |
| Maximum Travel Speed (Loaded / Unloaded) | 10.8 mph (17.4 km/h). |
| Lift Speed (Loaded / Unloaded) | 96 / 106 ft/min (0.49 / 0.54 m/s). |
| Lowering Speed (Loaded / Unloaded) | 88 / 98 ft/min. |
| Maximum Gradeability (Laden / Unladen) | 32% / 20%. |
| Tire Type | Cushion Tires – Front 21×7-15, Rear 16×6-10.5. |
| Overall Length (With / Without Forks) | 136.8 in / 94.5 in. |
| Wheelbase | 58 in. |
| Overall Width | 42 in. |
| Turning Radius (Outside) | 78.7 in. |
| Overhead Guard Height | 83 in. |
| Ground Clearance (Mast) | 3.5 in. |
| Fork Size / Dimensions | 42 in × 4.8 in × 1.57 in. |
| Service Weight (Including Battery) | Approximately 9,480 lb (4,300 kg). |
| Mast Tilt Angle (Front / Back) | 6° / 5°. |
| Mast Options | Two-stage (standard), Three-stage (optional), Four-stage (optional, region-specific). |
| Noise Level at Operator Ear | ≤ 75 dB(A). |
| Operator Comfort Features | Ergonomic controls, low-vibration mount system, and wide-view mast for superior visibility. |
| Options | Description |
|---|---|
| Mast Configurations | Two-stage (Standard), Three-stage Full Free Lift, or Four-stage Extended Reach mast options depending on application. |
| Fork Lengths | 42 in (Standard), with optional 45 in or 48 in forks available for various pallet sizes. |
| Attachment Options | Compatible with side shifters, fork positioners, paper roll clamps, bale clamps, and rotator attachments. |
| Cabin / Overhead Guard | Standard overhead guard; optional enclosed operator cabin with heater or fan for outdoor or cold environments. |
| Seat Type | Standard suspension seat; optional full-suspension ergonomic seat with adjustable armrests for enhanced comfort. |
| Lighting & Safety Equipment | LED headlamps, rear combination lights, beacon light, blue safety spotlight, and reverse alarm available as optional safety packages. |
| Tire Options | Standard cushion tires; optional solid pneumatic tires for mixed indoor and outdoor use. |
| Steering Wheel & Control Levers | Standard mechanical levers; optional fingertip mini-lever hydraulic controls for precision handling. |
| Color / Branding | Standard HELI red-orange finish; custom color schemes available for fleet or corporate branding. |
| Engine Configuration | Standard LPG engine; optional dual-fuel system (LPG/Gasoline) for flexible operations. |
| Operator Environment | Optional tilt steering column, rear grab handle with horn button, and fan kit for improved comfort and usability. |
| Cooling & Air Filtration | Optional high-capacity radiator and heavy-duty air filter for operations in dusty or high-temperature environments. |
| Fleet Management Ready | Optional telemetry and fleet tracking system for usage monitoring, performance analytics, and maintenance scheduling. |
