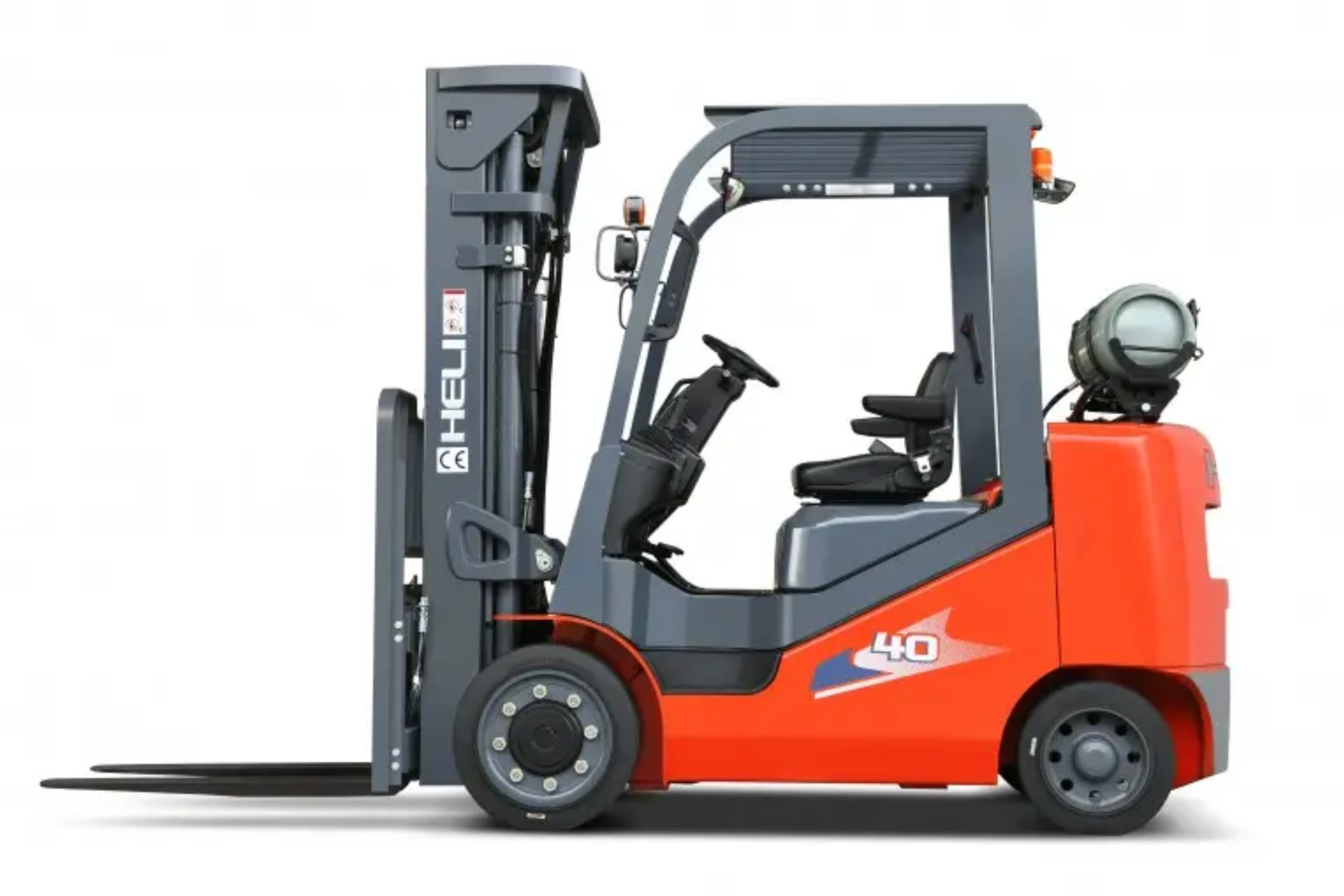

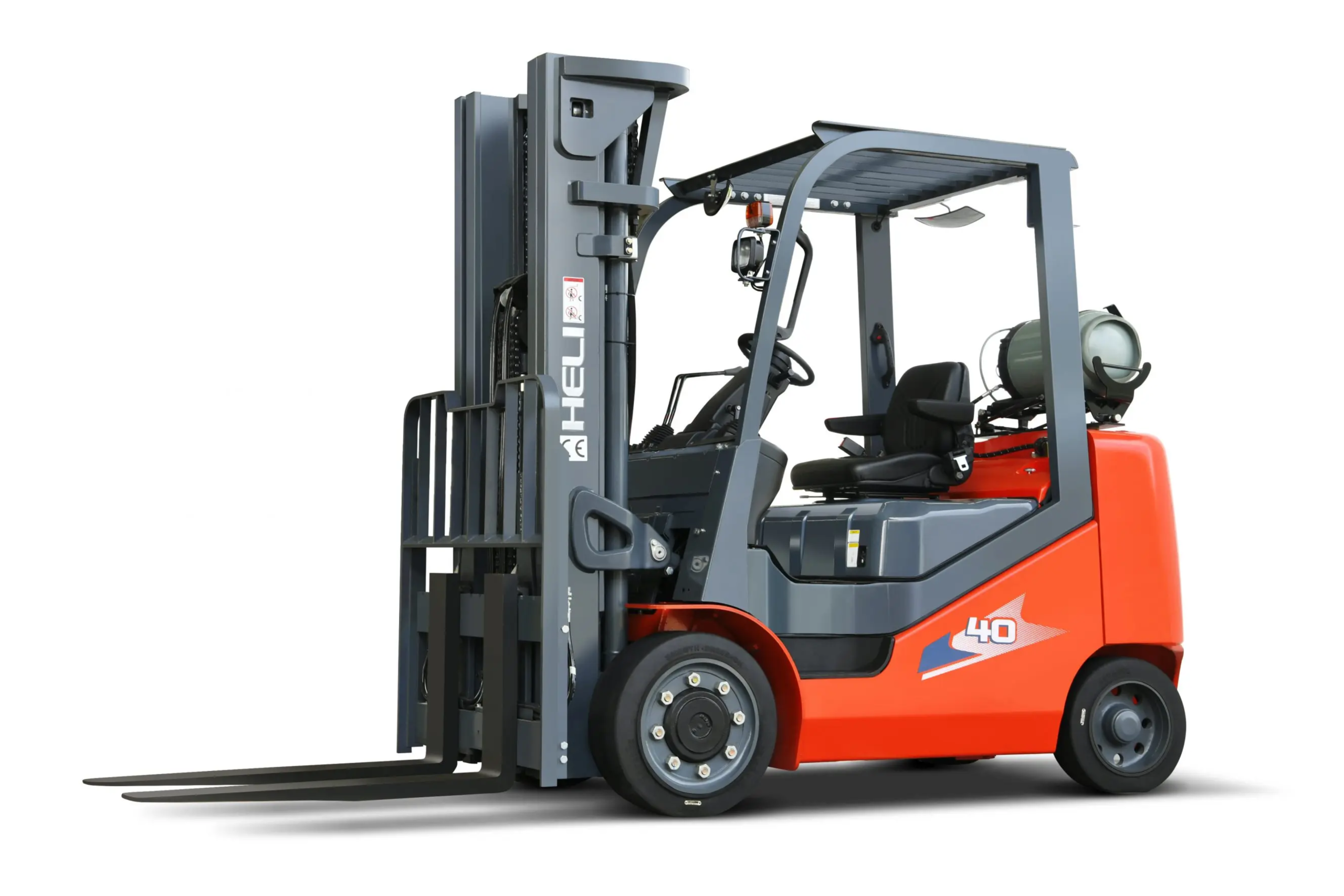

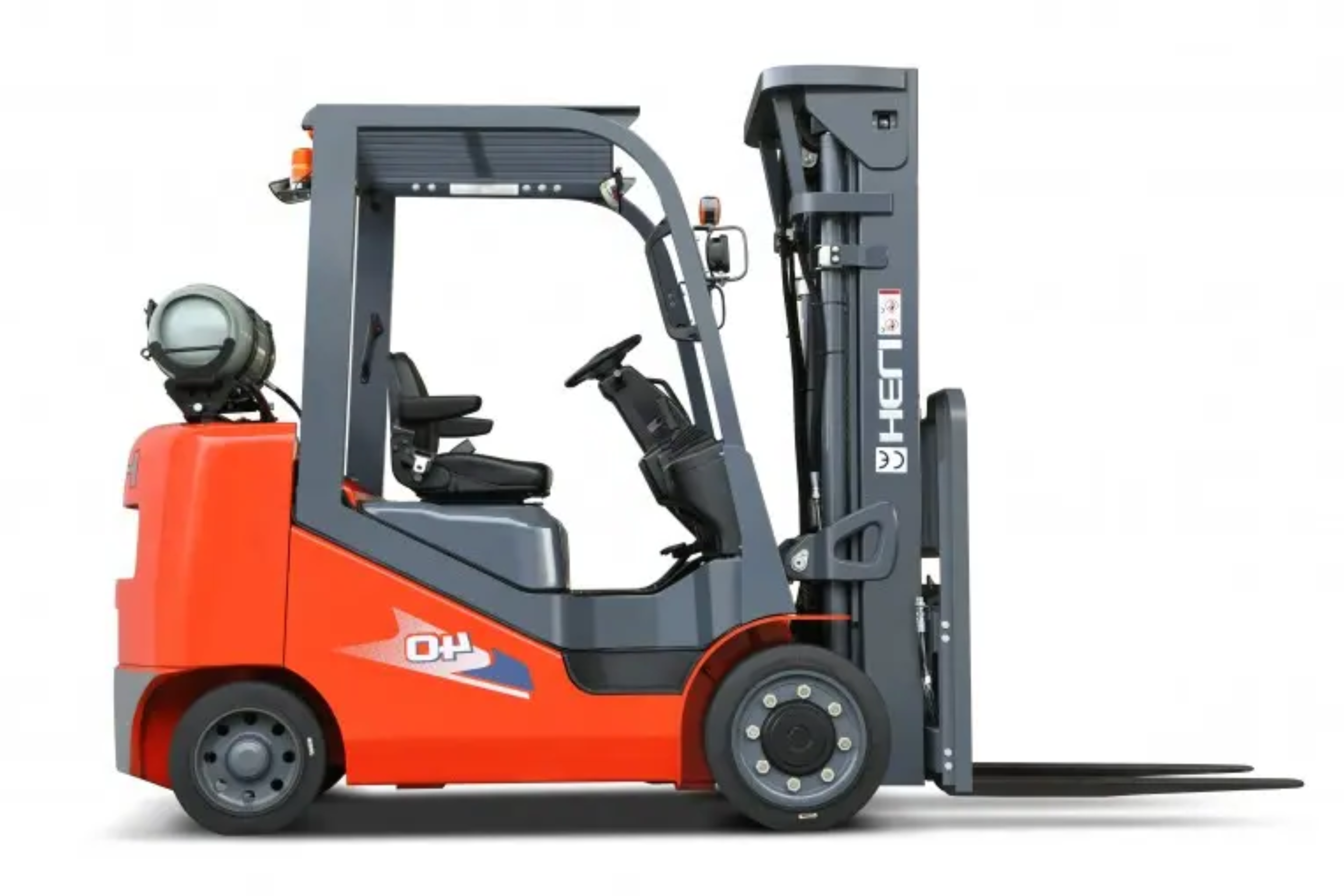

The HELI CPYD40C is a high-capacity sit-down propane (LPG) forklift engineered for demanding material handling tasks. Suitable for warehouses, logistics operations, and industrial environments, this model offers strong lifting capability, stability on rough surfaces, and operator-focused features for comfort and safety.
| Product Feature | Description |
|---|---|
| 8,000 lb Lift Capacity | Handles high-capacity loads, ideal for heavy-duty material handling tasks. |
| LPG / Propane Powered | Clean-burning fuel suitable for both indoor and outdoor use, with fast refueling. |
| Integrated Side Shifter | Allows lateral fork movement without moving the forklift, improving load alignment efficiency. |
| 3rd Hydraulic Valve (W/IHR3) | Supports use of additional hydraulic attachments like rotators and fork positioners. |
| G Series Ergonomic Suspension Seat | Reduces fatigue with adjustable cushioning and includes a built-in document holder. |
| LED Rotating & Blue Safety Lights | Increases visibility and operator awareness in high-traffic or low-light environments. |
| Back-up Alarm & Horn Button | Provides audible warnings for safe reversing and maneuvering. |
| Hydraulic Power Steering | Ensures smooth, responsive steering even when under heavy loads. |
| Steering Wheel Knob & Grab Handle | Improves control and comfort, especially during tight maneuvers. |
| Wide-Opening Engine Hood | Enables quick access for maintenance, reducing service time and improving uptime. |
| Specification | Description |
|---|---|
| Rated Load Capacity | 8,000 lbs |
| Load Center | 24 inches |
| Maximum Lift Height | 185 – 236 inches (15.4 – 19.7 ft), depending on mast |
| Mast Options | 2-stage or 3-stage with full free lift |
| Fuel Type | LPG / Propane |
| Engine | Kubota WG2503 LPG or equivalent |
| Power Output | Approx. 59 HP (43.5 kW) |
| Transmission | Hydraulic automatic transmission |
| Steering | Hydraulic power steering |
| Tires | Solid Pneumatic (standard) / Optional Non-Marking |
| Turning Radius | Approx. 98.4 inches (may vary slightly by model) |
| Travel Speed (Unloaded) | ~11–12 mph (18–20 km/h) |
| Gradeability (Loaded) | Up to 20% |
| Overall Length (w/o forks) | Approx. 107 inches |
| Overall Width | Approx. 51 inches |
| Weight (Unloaded) | Approx. 12,500 – 13,500 lbs |
| Brake System | Hydraulic, wet disc brakes |
| Category | Options |
|---|---|
| Tires | Solid Pneumatic, Pneumatic, Non-Marking Pneumatic |
| Mast Types | 2-Stage Mast, 3-Stage Full Free Lift Mast |
| Attachments | Side Shifter (standard), Fork Positioner, Paper Roll Clamp, Rotator |
| Engine Options | Kubota WG2503 LPG (Euro V Compliant) |
