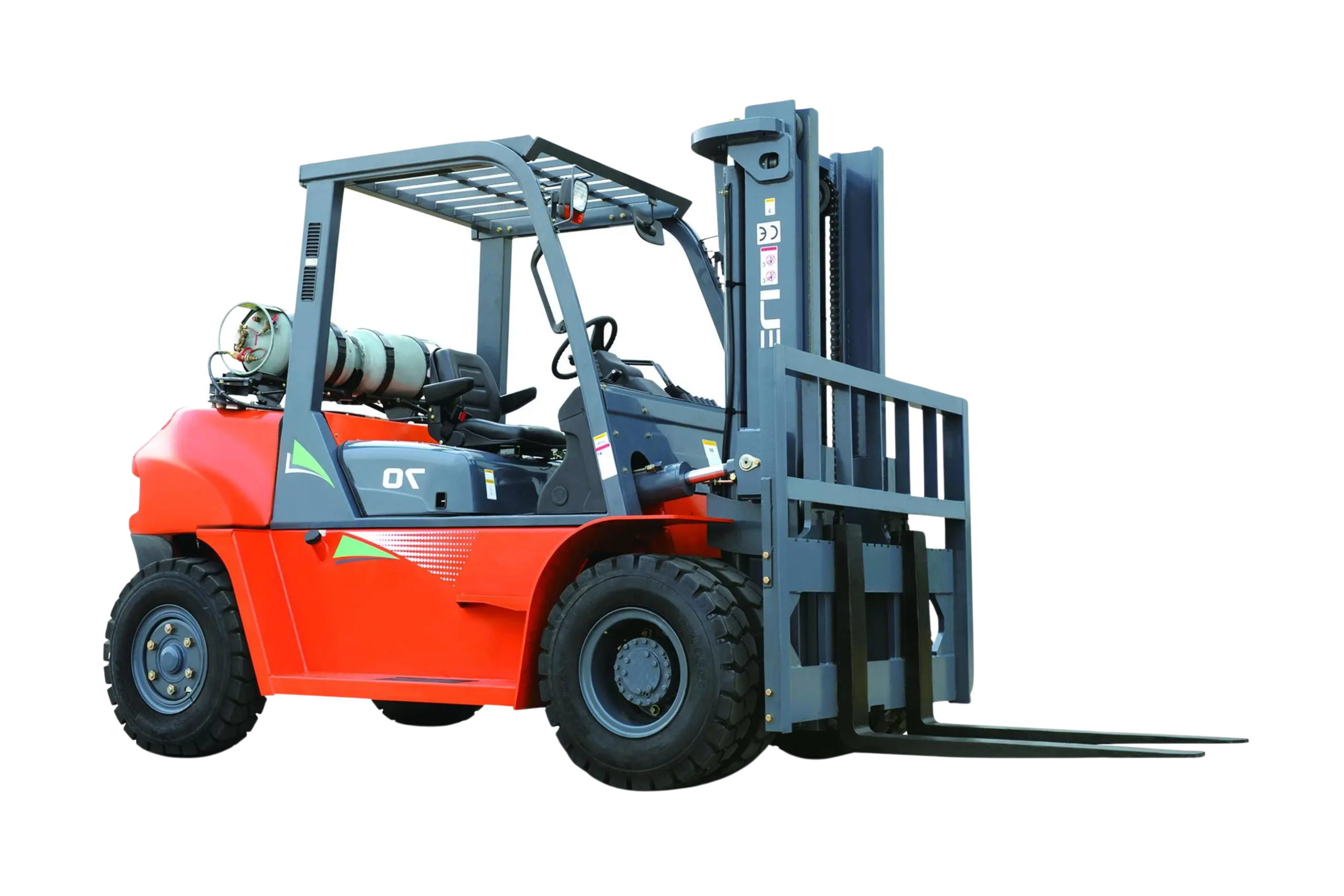

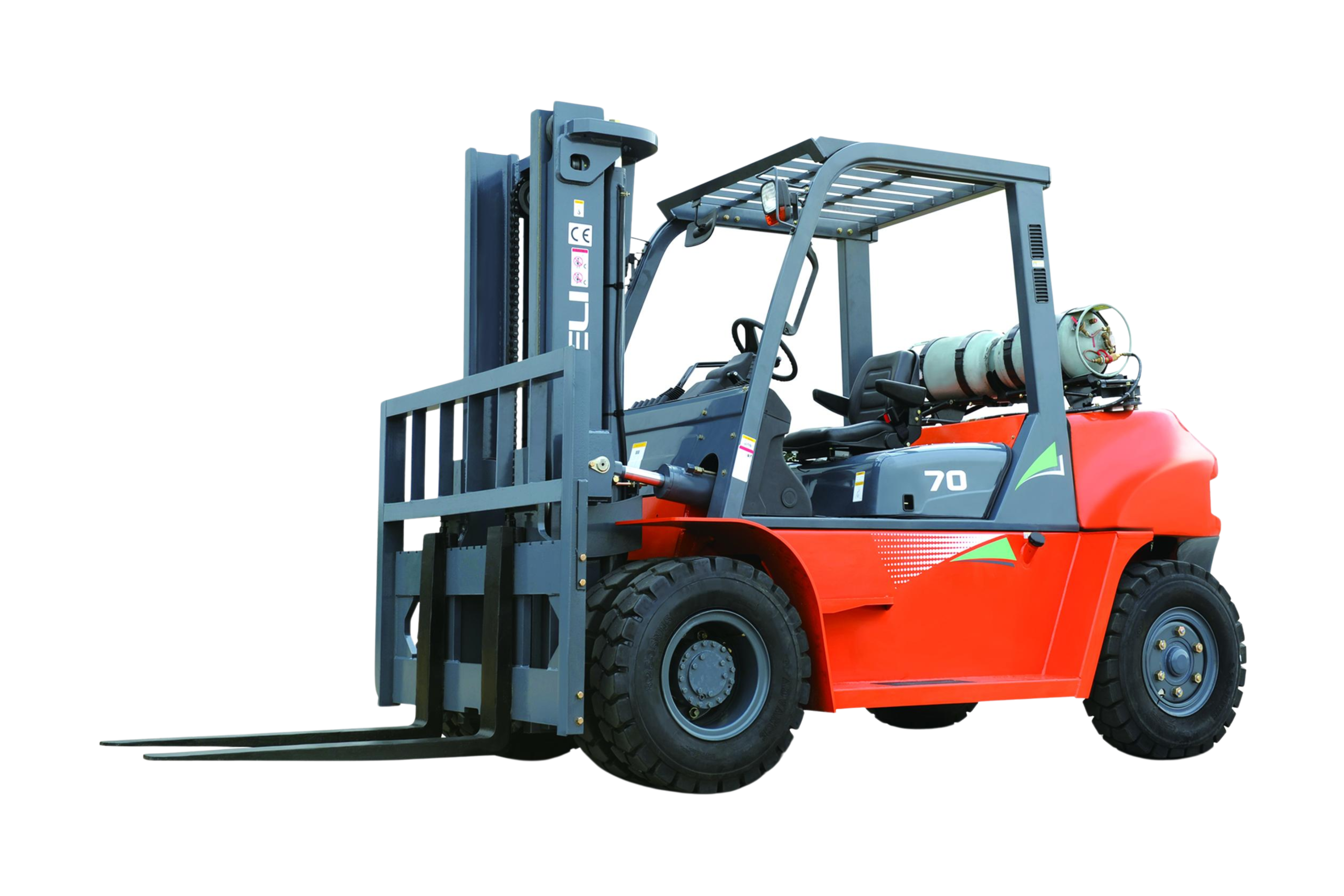

The HELI CPYD70 is a high-performance propane-powered forklift built to handle heavy-duty industrial loads up to 15,500 lbs. Engineered for durability and efficiency, it is ideally suited for operations involving large freight, containers, and high-volume materials. With robust construction, enhanced hydraulic control, and operator-friendly features, the CPYD70 excels in tough environments like freight terminals, heavy manufacturing, and outdoor storage yards. Its LPG engine offers reliable performance with reduced emissions, making it suitable for both indoor and outdoor use under strict operational demands.
| Product Features | Description |
|---|---|
| 15,500 lb Lift Capacity | Heavy-duty lifting power designed for industrial applications such as steel handling, containers, and construction materials. |
| LPG / Propane Powered | Clean-burning, high-torque engine provides consistent power indoors or outdoors with low emissions. |
| Hydraulic Power Steering | Ensures smooth maneuverability under full load, reducing operator fatigue and improving control. |
| 3rd Hydraulic Valve (W/IHR3) | Allows operation of heavy-duty attachments such as rotators, fork positioners, or clamps. |
| Integral Side Shifter | Permits lateral fork movement for precise pallet positioning without repositioning the truck. |
| G Series Ergonomic Seat | Suspension-type seat with vibration reduction and comfort features for improved operator efficiency. |
| LED Rotating Light & Blue Safety Light | Enhances visibility and alerts nearby personnel in active loading zones. |
| Backup Alarm & Overhead Horn Button | Built-in safety components minimize risk during reversing and operations in high-traffic areas. |
| Reinforced Chassis & Heavy-Duty Mast | Rugged structural frame provides stability and durability for large-capacity lifting. |
| Parameter | Description |
|---|---|
| Rated Load Capacity | 15,500 lb |
| Load Center | 24 in |
| Maximum Lift Height | Varies by mast option (needs confirmation) |
| Fuel Type | LPG / Propane (or dual fuel in some markets) |
| Engine Model / Make | Kubota or equivalent (exact model depends on region) |
| Power Output | ≈ 63.2 HP (LPG) (approximate) (published spec) |
| Transmission | Powershift / automatic / gear shift (check local variant) |
| Steering | Hydraulic Power Steering |
| Brake Type | Hydraulic (wet disc in some variants; verify region) |
| Tire Type | Pneumatic tires (some markets offer solid / non-marking options) |
| Turning Radius (Internal) | ~132 in (approx.) |
| Travel Speed (Unloaded) | ~8.3 mph (approx) (published value) |
| Travel Speed (Loaded) | ~8.9 mph (approx) (published value) |
| Gradeability (Loaded) | (Verify with Heli performance data) |
| Overall Length (without forks) | 142 in (approx) (published in spec source) |
| Overall Width | 80.5 in (approx) |
| Unloaded Weight | ~20,569 lb (varies with configuration) |
| Options | Description |
|---|---|
| Multiple Mast Configurations | Available in 2-stage and 3-stage full free-lift masts with lift heights up to approximately 236 in (6 m). |
| Cab Options | Standard overhead guard, partial or full cabin with heater / A/C for outdoor operation. |
| Fork Lengths | Standard 48 in forks; optional 60 in, 72 in, or 96 in lengths available. |
| Attachment-Ready Hydraulics | 3rd and 4th hydraulic function lines for use with rotators, fork positioners, or clamps. |
| Side Shifter / Fork Positioner | Integral or hook-on types for enhanced pallet handling and reduced maneuvering time. |
| Lighting & Safety Package | LED headlamps, blue pedestrian safety light, amber strobe beacon, and reverse alarm. |
| Seat & Operator Comfort | Suspension seat with lumbar support, document holder, and optional armrest upgrades. |
| Tire Options | Pneumatic (standard), solid pneumatic, or non-marking tires for indoor environments. |
| Cold / Dust Protection Package | Includes pre-cleaner, radiator screen, and enhanced sealing for harsh site conditions. |
| Fire Extinguisher & Tool Kit | Optional safety accessories for on-site compliance and maintenance convenience. |
