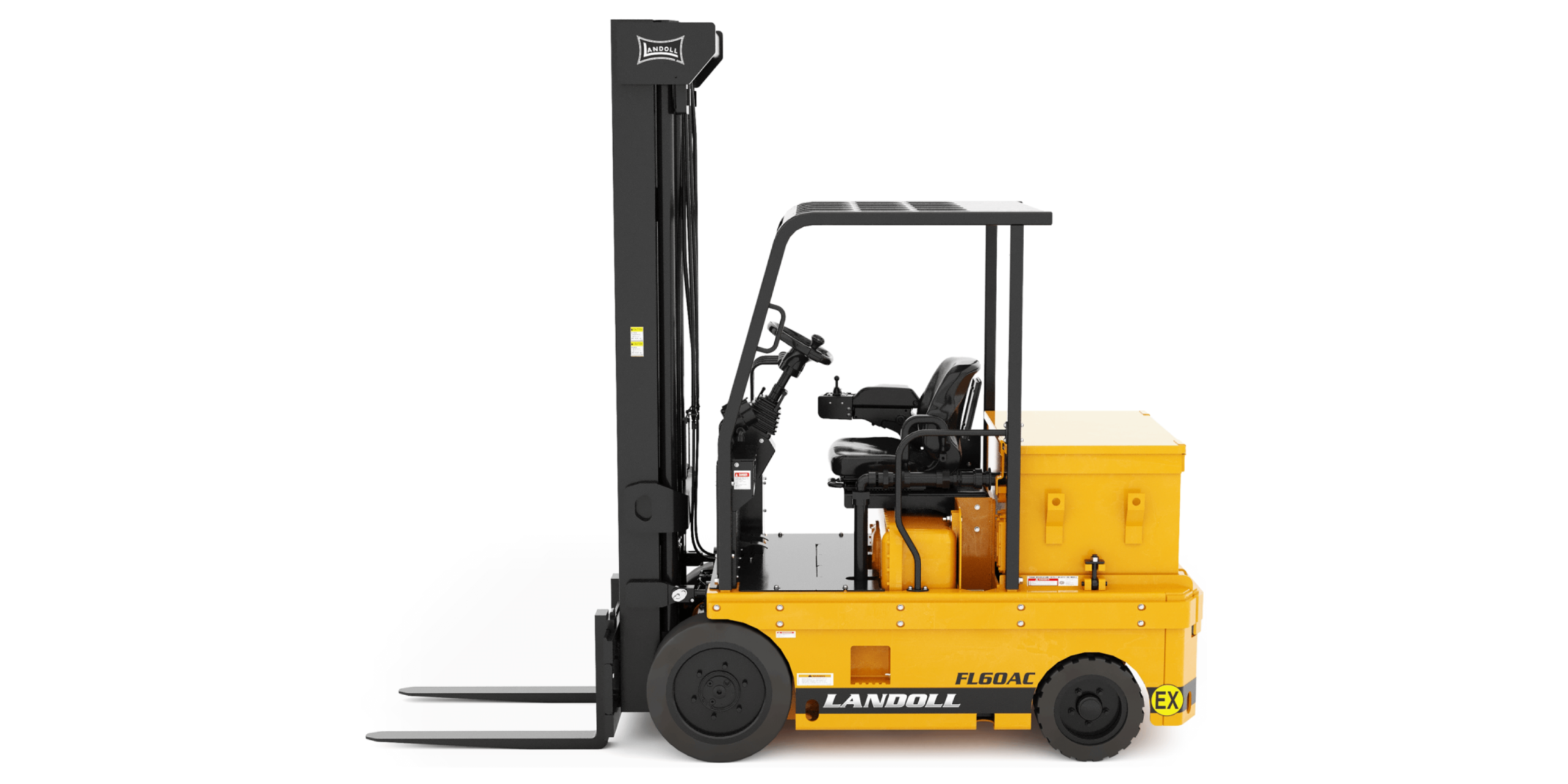

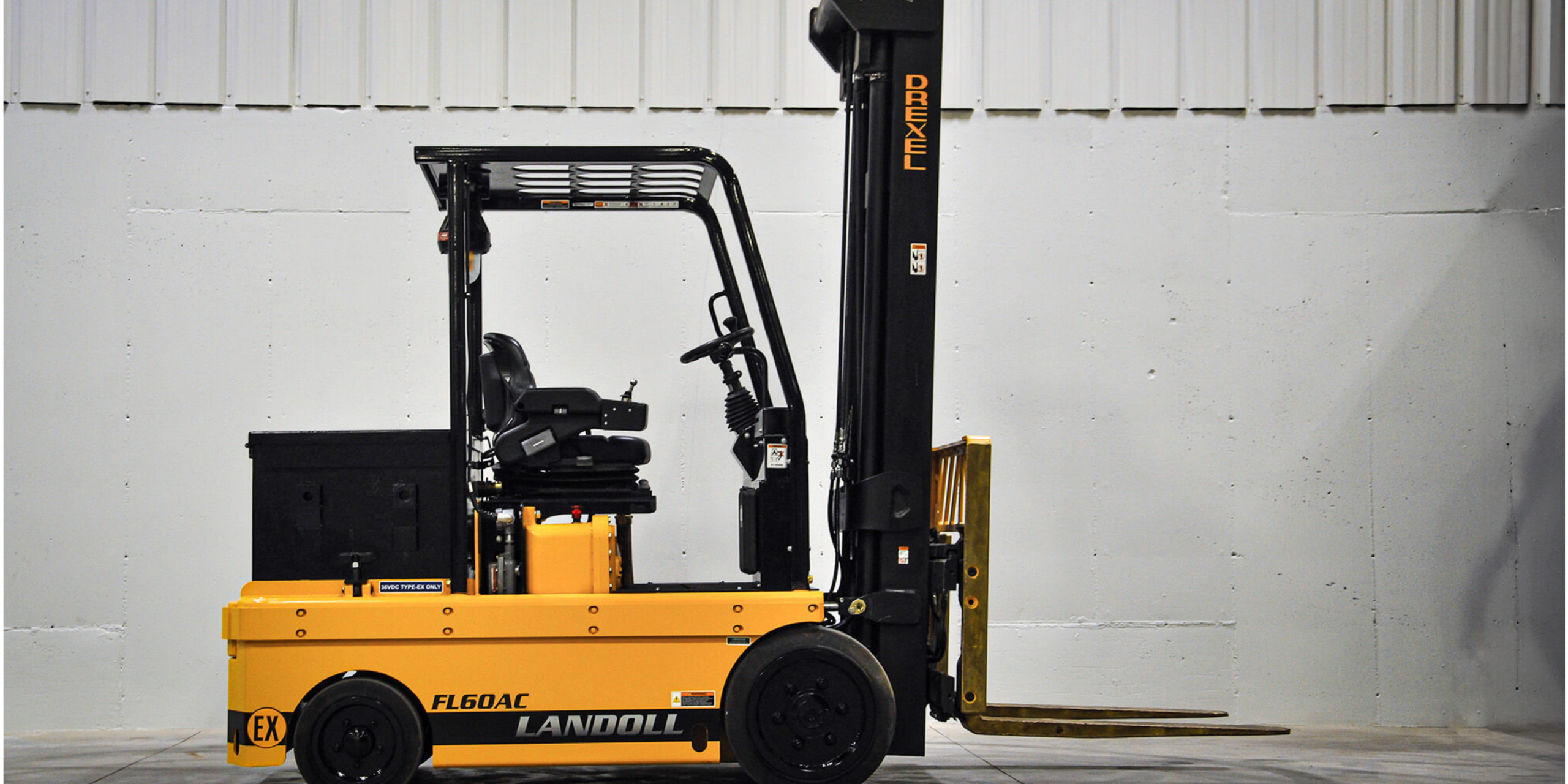

The Drexel FL40-EX and FL60-EX are explosion-proof, electrically powered, front-loading, 4-wheel electric forklifts designed for operation in hazardous environments. These models are UL listed for use in Type EX Class I, Division I, Group D and Class II, Division I, Group G flammable hazardous areas .
| Product Feature | Description |
|---|---|
| Explosion-Proof Design | Certified for use in hazardous environments with flammable gases or dust. |
| Four-Wheel Configuration | Independently driven front wheels with rear-wheel steering for enhanced maneuverability. |
| 36 Volt Electrical System | Powers AC traction and hydraulic motors for efficient operation. |
| Curtis AC Controls | Provide precise control over traction and hydraulic functions. |
| Hydrostatic Power Steering | Ensures smooth and responsive steering. |
| Safety Features | Includes safety seat switch, seat belts, emergency power disconnect switch, and fire extinguisher. |
| Brass Clad Components | Forks and load backrest are brass clad to prevent sparking. |
| Static Grounding | Steer tires are statically grounded to dissipate static electricity. |
| Overhead Guard | Protects the operator from falling objects. |
| Regenerative Service Brakes | Enhance energy efficiency and control. |
| Specification | FL40-EX | FL60-EX |
|---|---|---|
| Load Capacity | 4,000 lbs | 6,000 lbs |
| Truck Weight | 7,700 lbs | 8,950 lbs |
| Load Center | 19 in | 19 in |
| Travel Speed | 4 mph | 4 mph |
| Lift Speed (Loaded) | 34 fpm | 25 fpm |
| Mast Options | 2, 3, or 4-stage | 2, 3, or 4-stage |
| Max Lift Height | 250 in (20 ft 10 in) | 250 in (20 ft 10 in) |
| Battery | 36V, EX-rated | 36V, EX-rated |
| Gradeability | 15% | 15% |
| Wheelbase | 48 in (4 ft) | 48 in (4 ft) |
| Overall Width | 41 in (3 ft 5 in) | 41 in (3 ft 5 in) |
| Overall Height | 84 in (7 ft) | 84 in (7 ft) |
| Available Option | Description |
|---|---|
| Strobe Warning Light | Enhances visibility and safety in the work area. |
| Hydraulic Attachments | Various attachments to suit specific material handling needs. |
| EX Rated 36 Volt, 765 AH Battery | Provides extended operation time. |
| Electric Backup Alarm | Alerts nearby personnel when the forklift is in reverse. |
| Battery Compartment Rollers | Facilitate easier battery replacement and maintenance. |
| Side Shifter | Allows forks to move 4 inches (10 cm) either side of center for precise positioning. |
| Folding Forks | Enable compact storage and maneuvering in tight spaces. |
