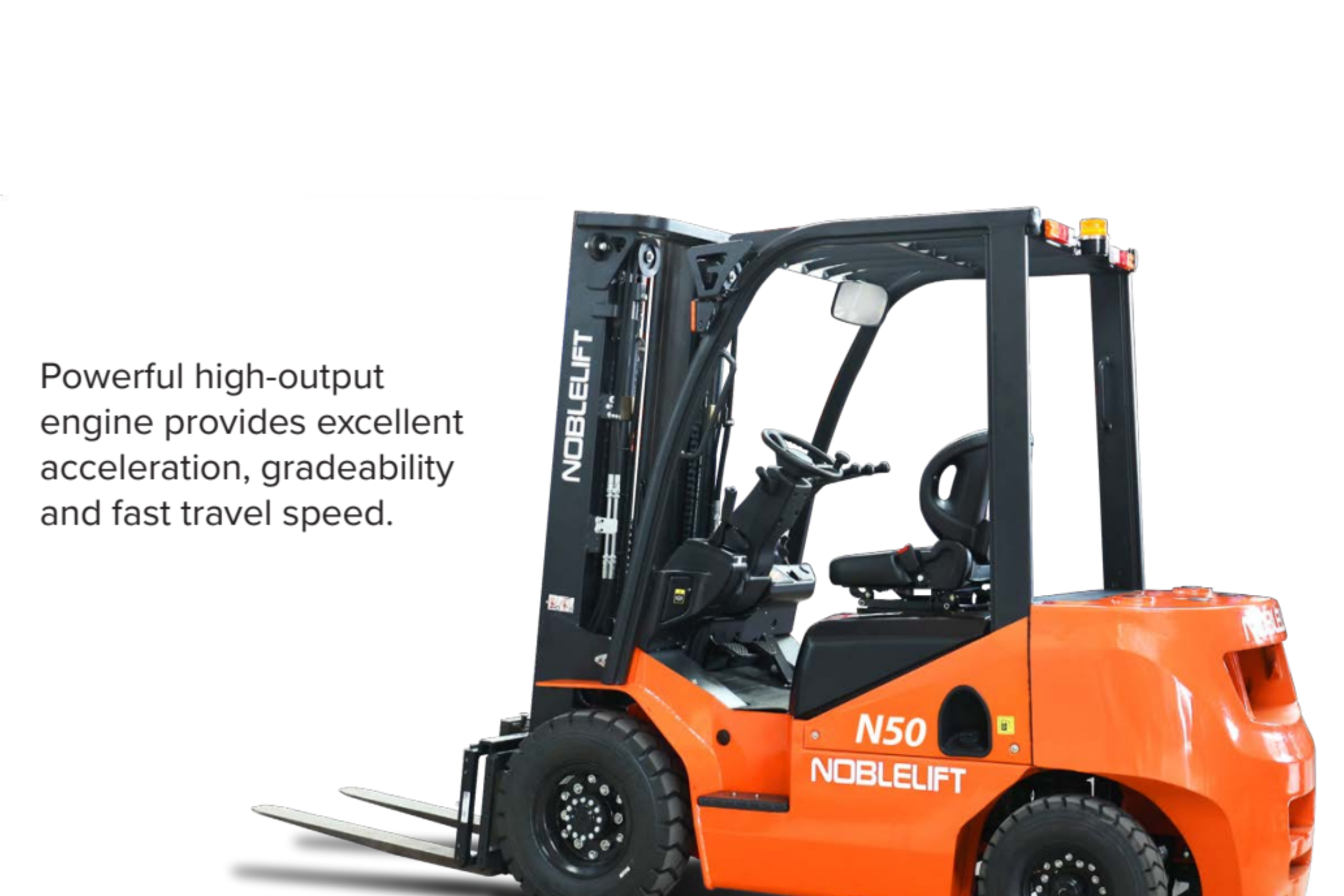

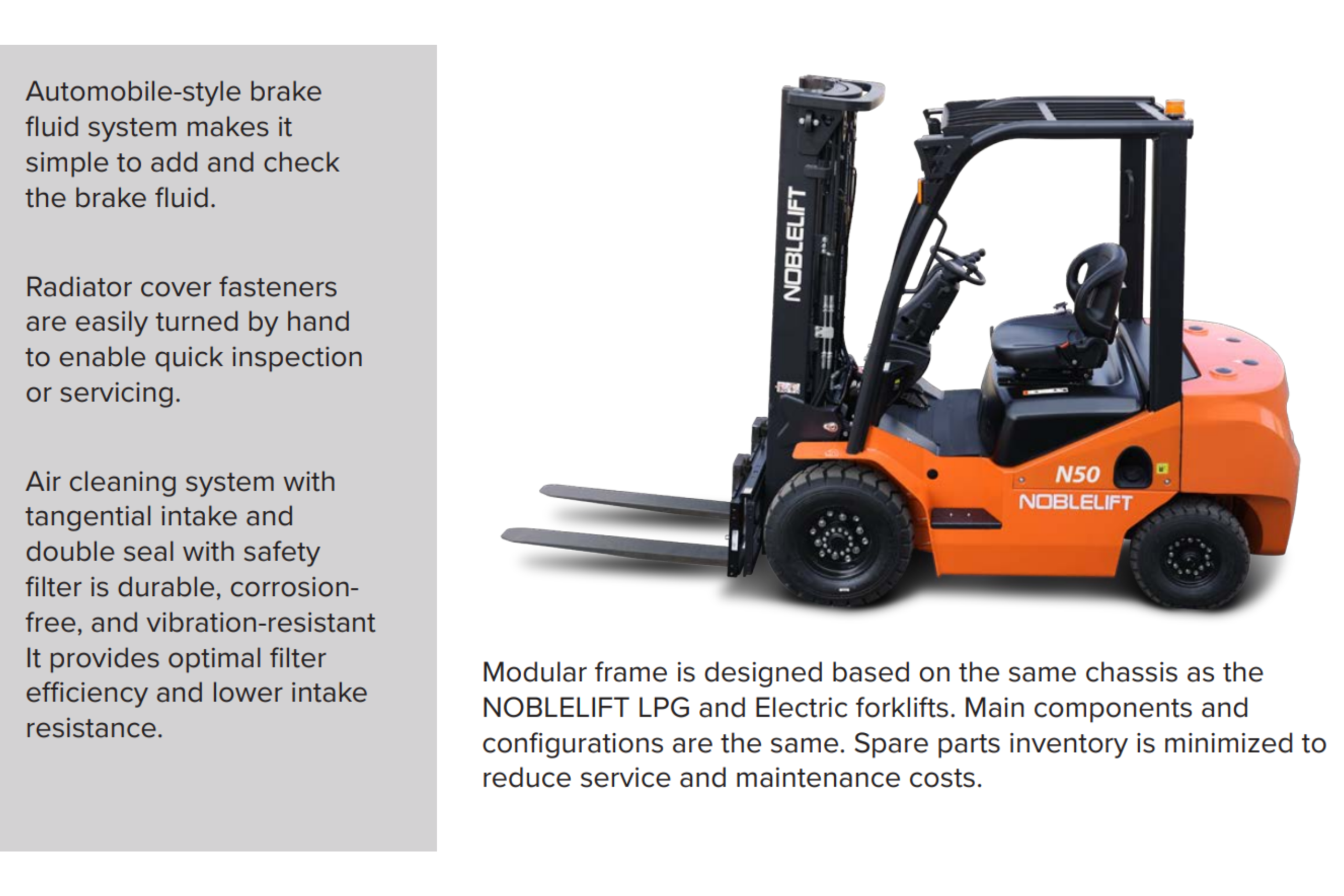

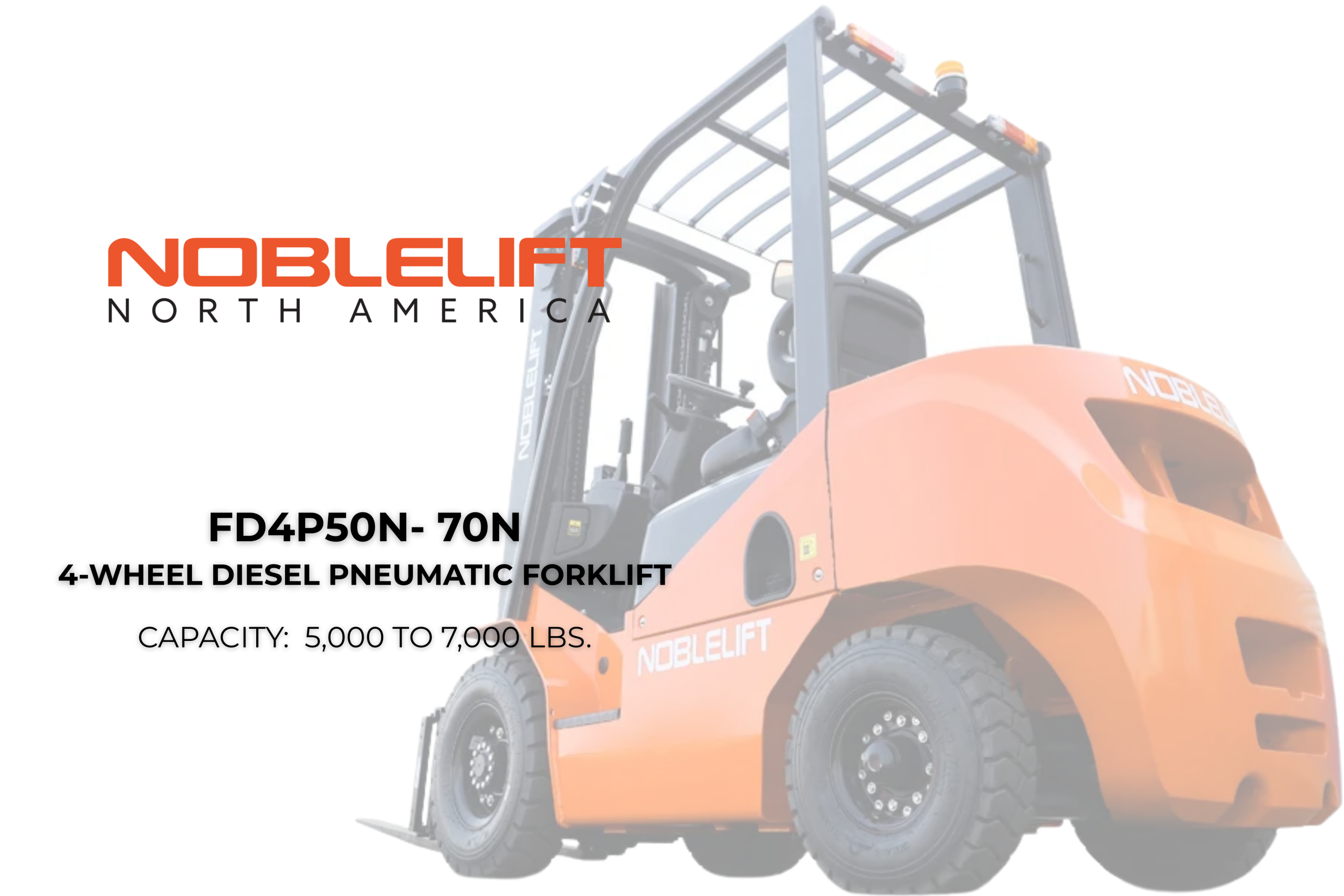

The FD4P50N 70N Series delivers 5,000 to 7,000 lb load capacity in a rugged diesel pneumatic forklift designed for high volume, heavy duty operations. Built with a reinforced mast, heavy duty chassis, and robust front and rear axles, this series is engineered to perform reliably in the toughest working conditions.
Ideal for lumber yards, brick and stone distribution, manufacturing facilities, and industrial warehouses, these forklifts combine durability with low maintenance and consistent productivity.

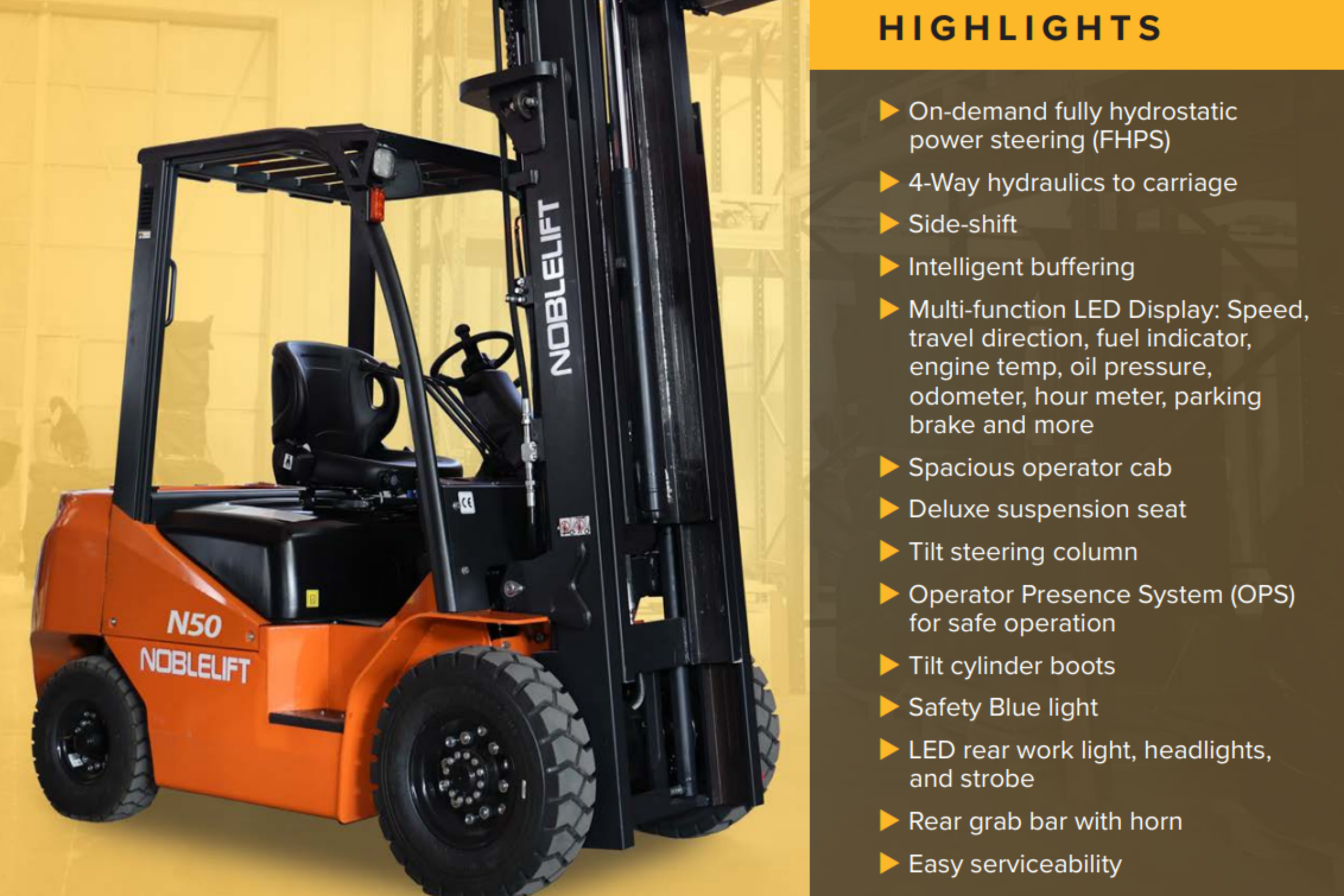

Operators benefit from On Demand Fully Hydrostatic Power Steering (FHPS), intelligent buffering, a deluxe suspension seat, solid pneumatic tires, and an Operator Presence System (OPS) to ensure comfort, safety, and control throughout long shifts.
Powerful. Durable. Proven value for demanding applications.
| Product Features | Description |
|---|---|

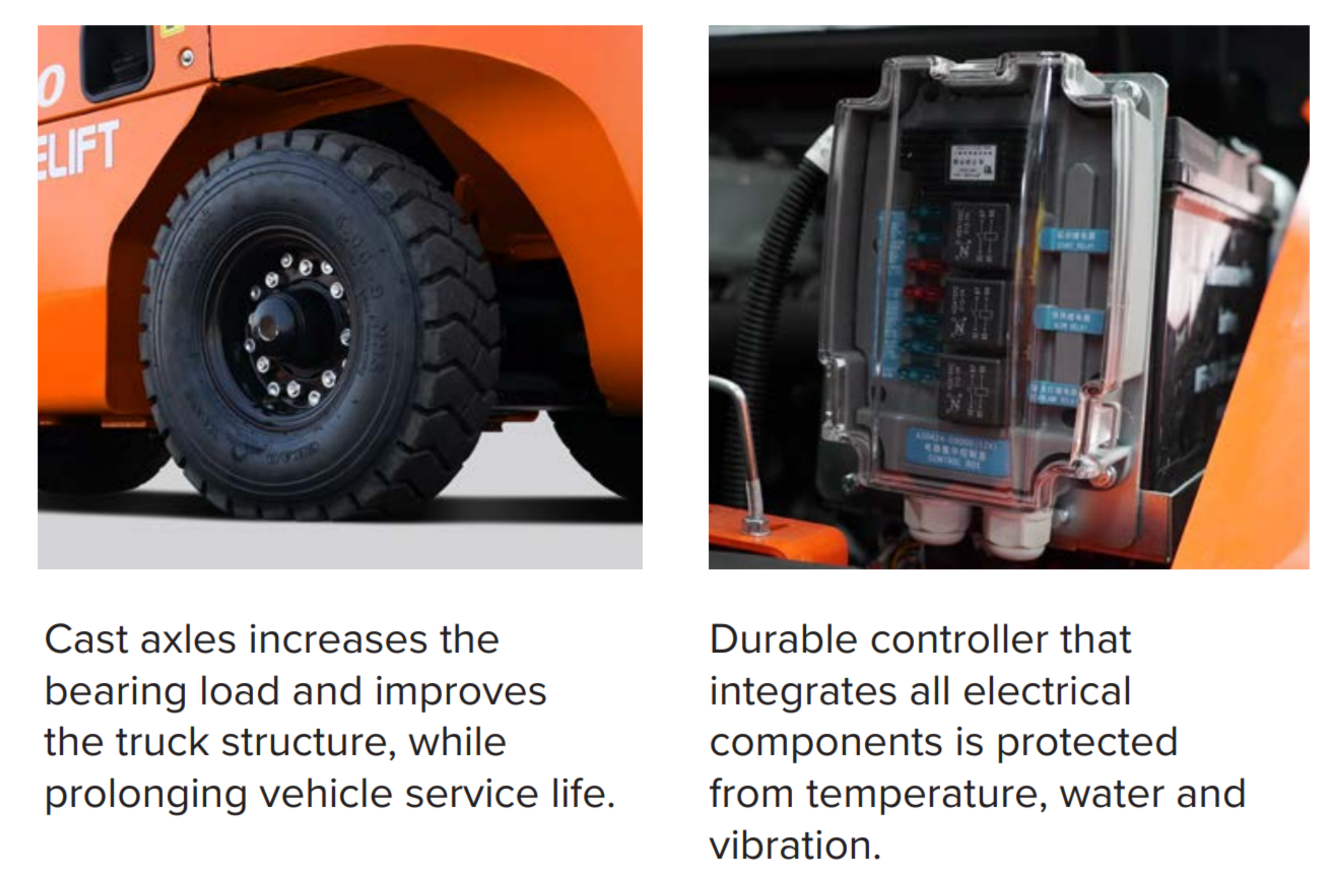

| Heavy-Duty Construction | Heavy-duty steel chassis, cast axles, mast, and overhead guard provide high strength and stability for high lifting heights and heavy loads. |

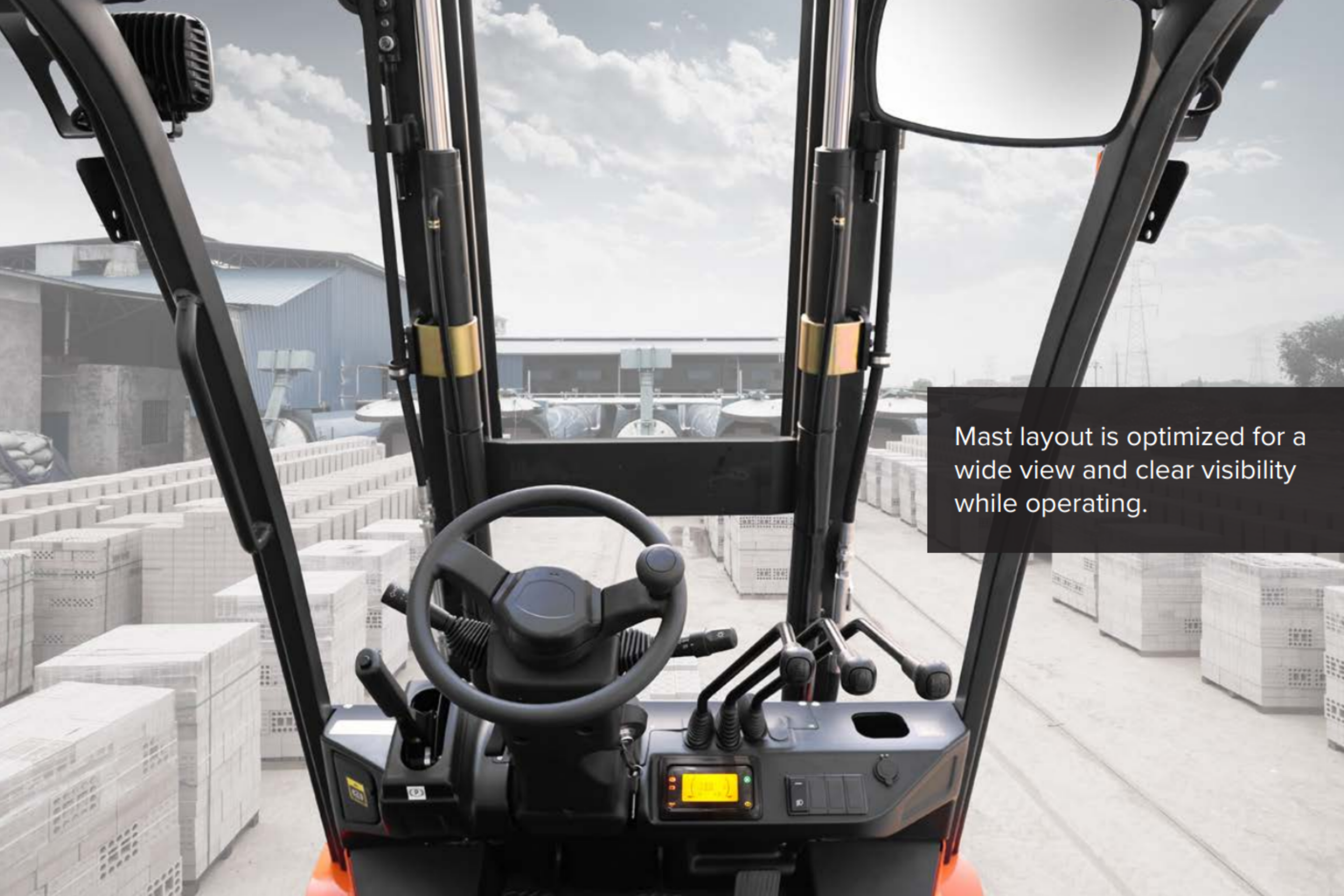

| Wide Mast View | Optimized mast layout delivers a wide field of view and clear visibility during operation. |

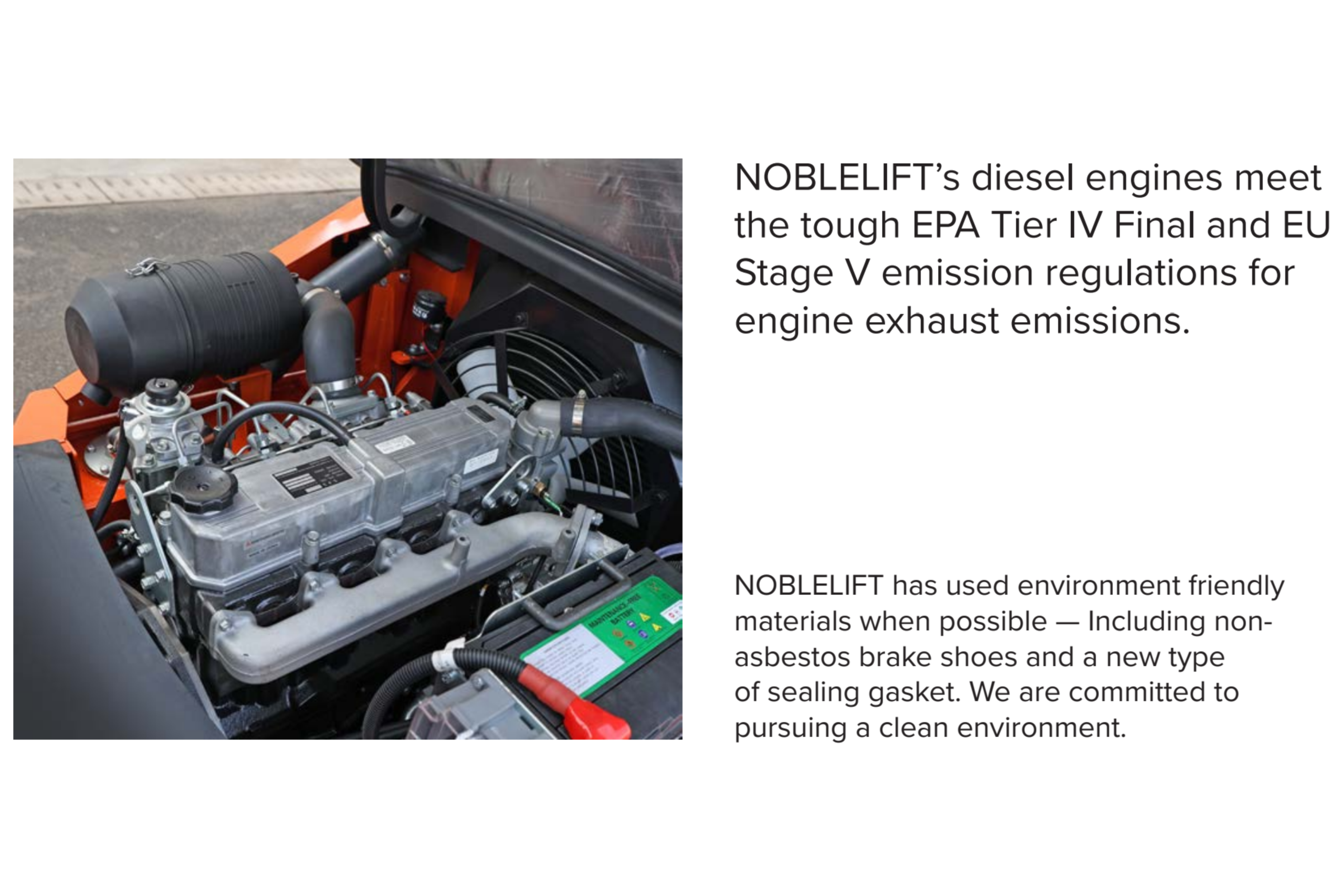

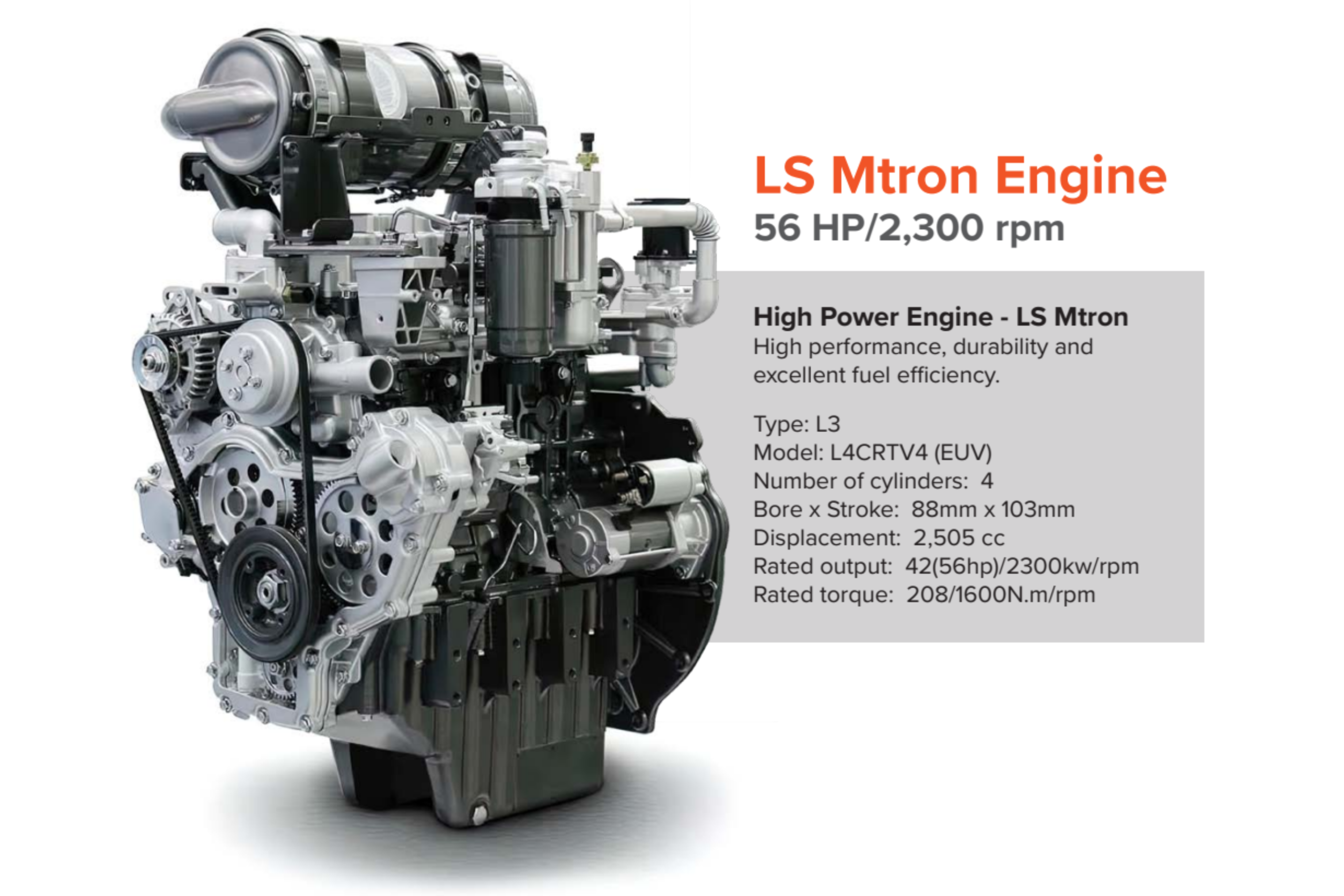

| Environment-Friendly Engine | High-performance LS Mtron diesel engine offers durability, excellent fuel efficiency, and compliance with EPA Tier IV Final and EU Stage V emission standards. |

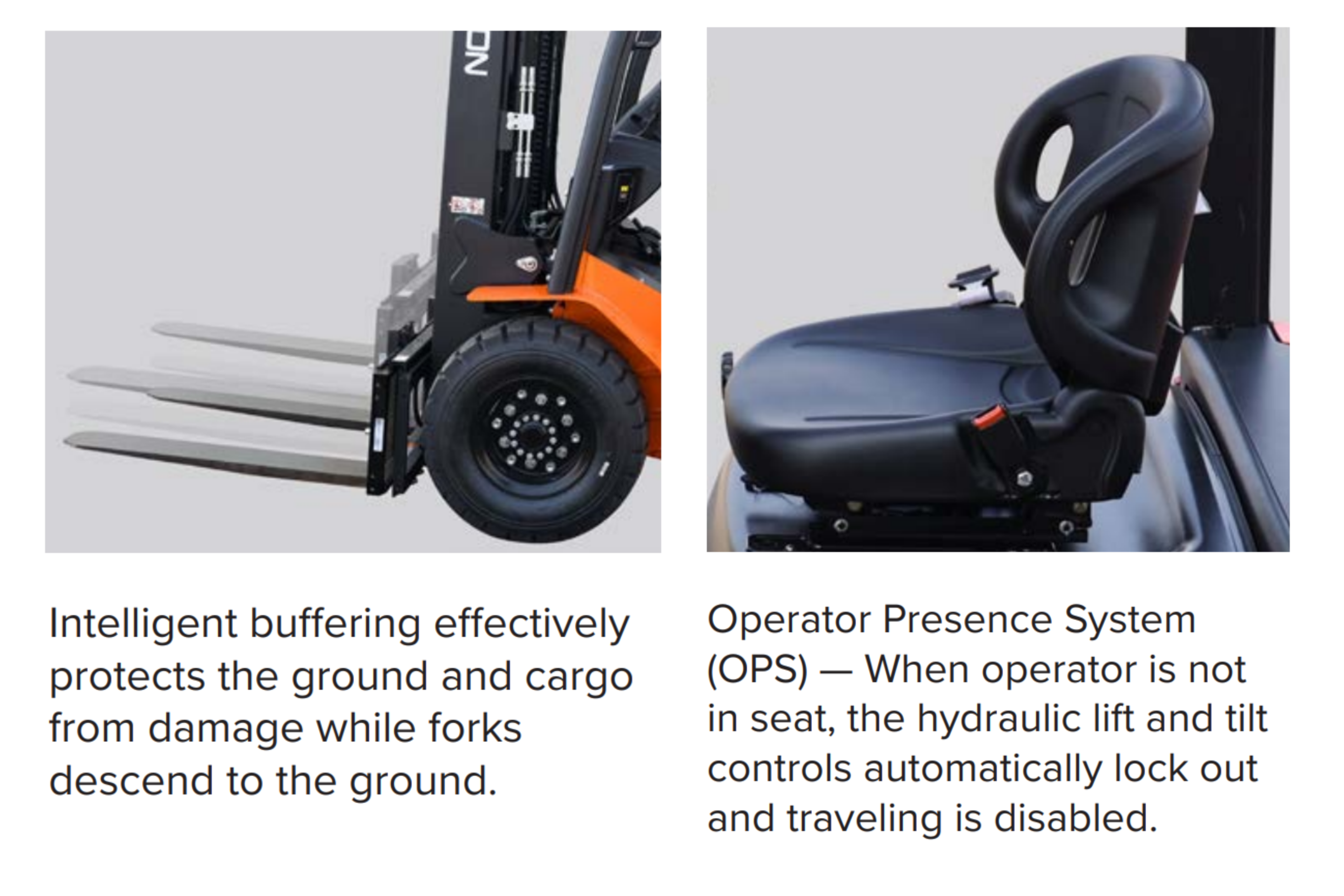

| Intelligent Buffering | Automatically protects the ground and cargo by controlling fork descent near ground level. |
| On-Demand Fully Hydrostatic Power Steering (FHPS) | Ensures smooth steering while preventing over-run and kickback. Spinner knob allows easy one-handed operation. |

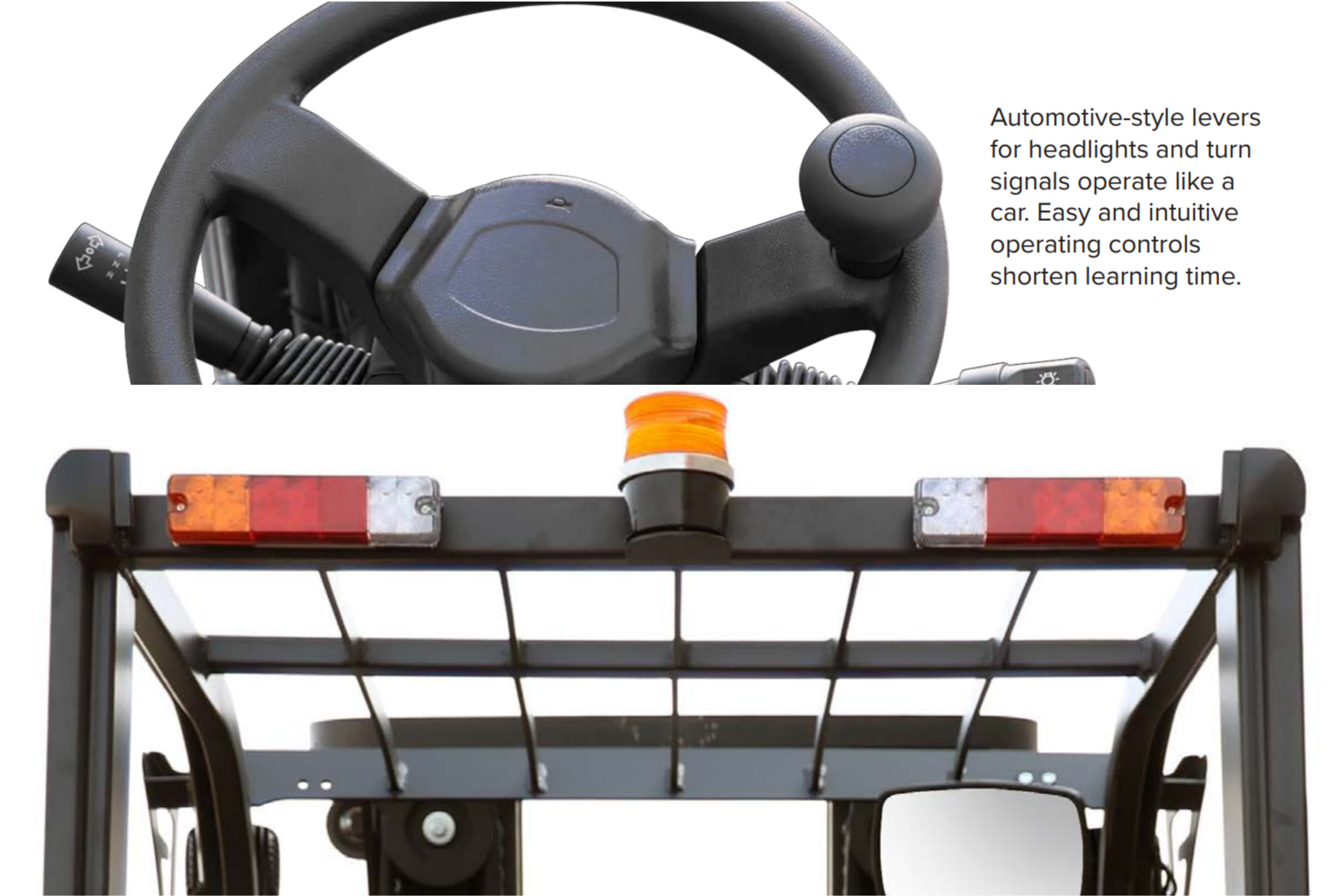

| Automotive-Style Controls | Headlight and turn signal levers operate like a car, providing intuitive controls and reducing operator learning time. |
| USB Connectors | Two USB ports allow charging and powering of additional devices during operation. |
| Operator Presence Sensing & Restraint System | Forklift functions are disabled when the operator is not seated. Retractable seat belt enhances operator safety. |

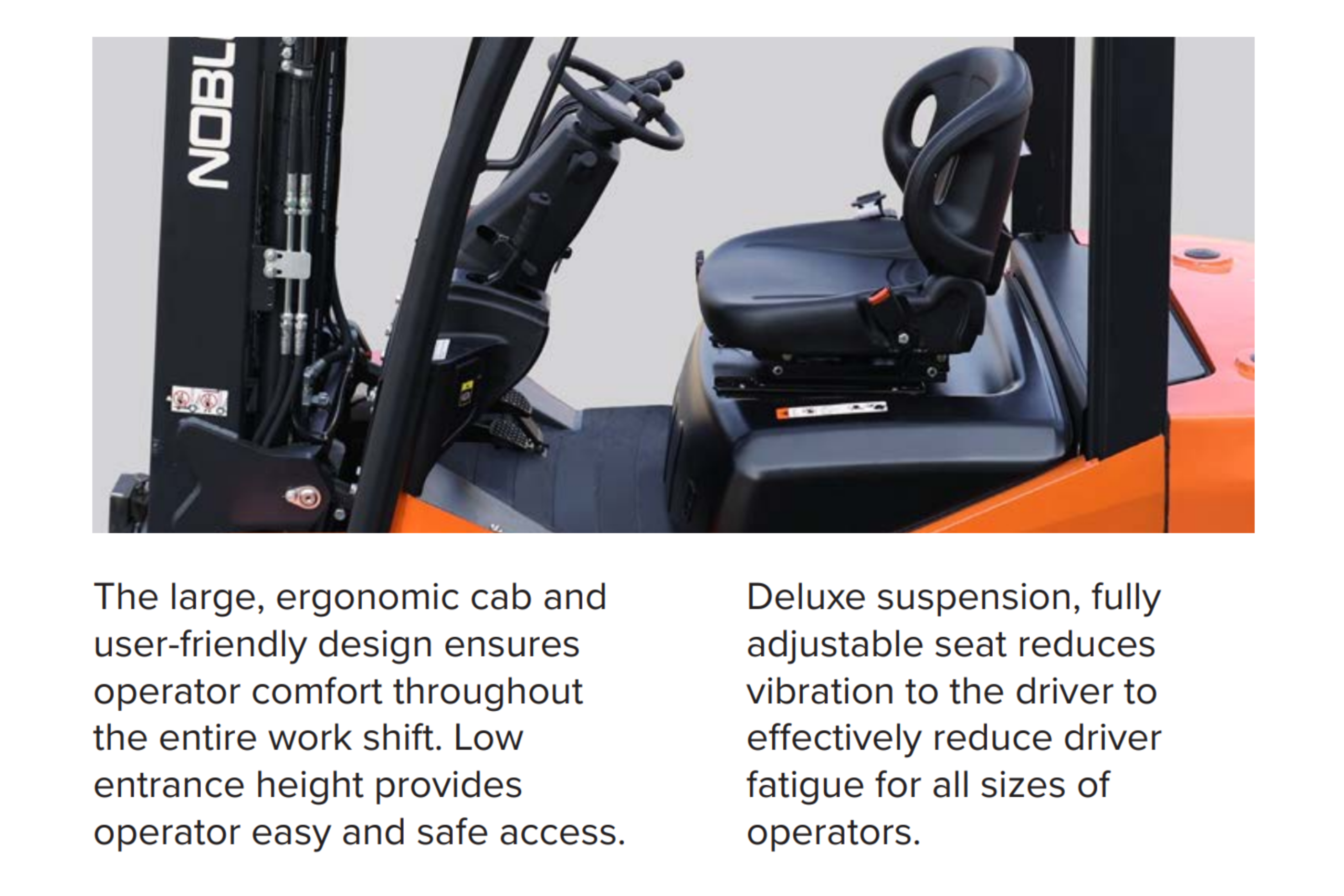

| Comfort & Ergonomics | Ergonomic design includes a small-diameter steering wheel, anti-slip step area, large hand grip, and a fully adjustable deluxe suspension seat to reduce operator fatigue. |

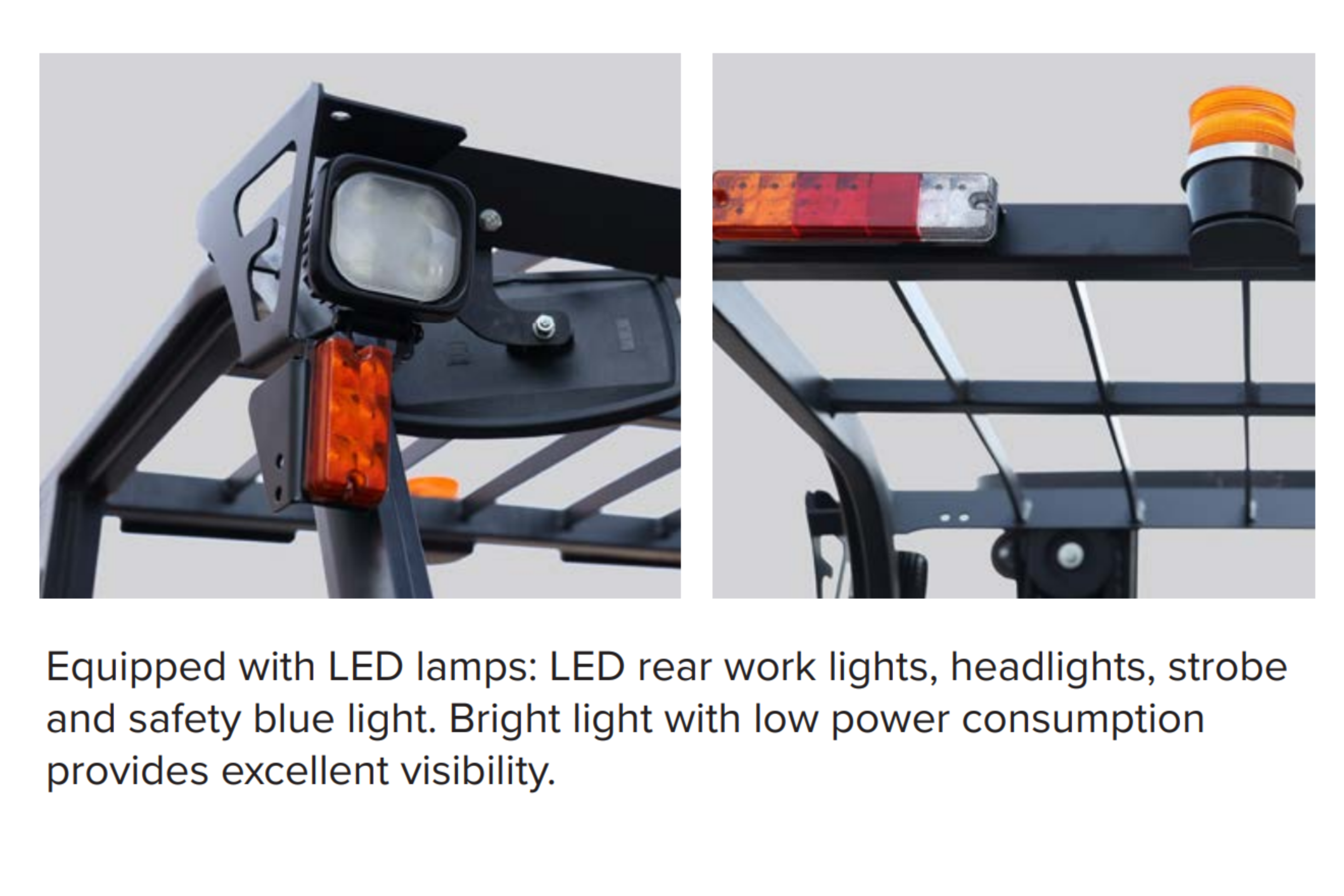

| LED Lighting System | Equipped with LED headlights, rear work lights, strobe, and blue safety light for excellent visibility with low power consumption. |

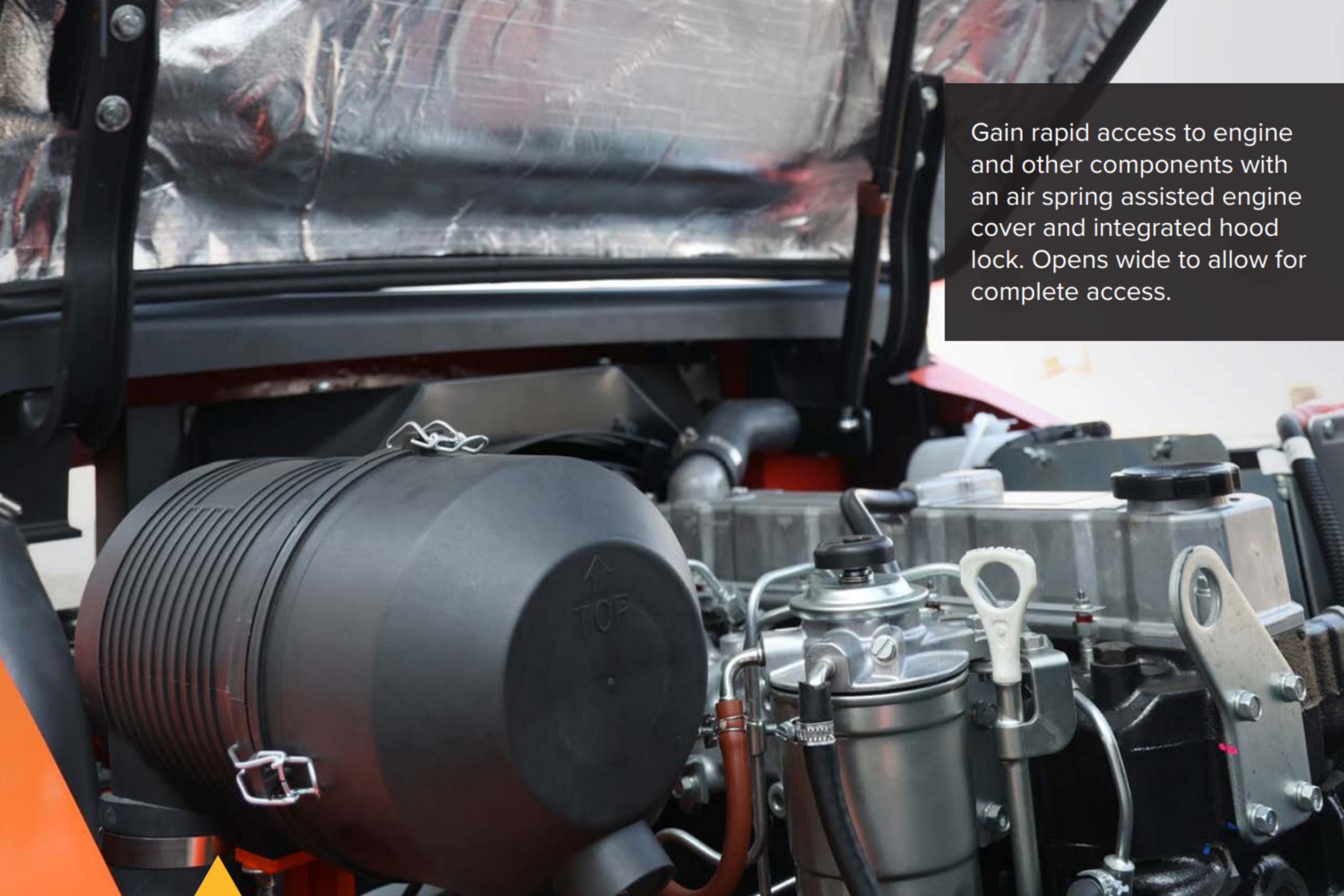

| Easy Maintenance Access | Air spring-assisted engine cover and integrated hood lock open wide for quick and convenient access to key components. |
| Specification | FD4P50N | FD4P60N | FD4P70N |
|---|---|---|---|
| Unit Type | 4-Wheel Diesel Pneumatic Forklift | ||
| Load Capacity | 5,000 lb | 6,000 lb | 7,000 lb |
| Load Center | 24" | ||
| Power | Diesel Engine – 56 HP @ 2,300 rpm | ||
| Tires | Solid Pneumatic | ||
| Fork Dimensions | 42" Standard | ||
| Lift Height | 118" – 275" | ||
| Collapsed Height | 80.9" | 81.7" | 86" |
| Mast Stages | 2 or 3 | ||
| Turning Radius | 87.8" | 96.5" | 99" |
| Options | Description |
|---|---|
| Cab | Standard overhead guard or enclosed cab configuration for improved operator protection. |
| Cab with Heat and/or Air Conditioning | Fully enclosed cab with heating and optional air conditioning for all-weather operation. |
| White Non-Marking Solid Pneumatic Tires | Non-marking tires ideal for indoor facilities or finished concrete floors. |
| Front Blue Light | Projects a visible blue safety light to alert pedestrians in active work zones. |
| Fire Extinguisher | Mounted fire extinguisher for enhanced workplace safety and compliance. |
| Optional Fork Lengths | Forks available in multiple lengths to suit different pallet sizes and load requirements. |
