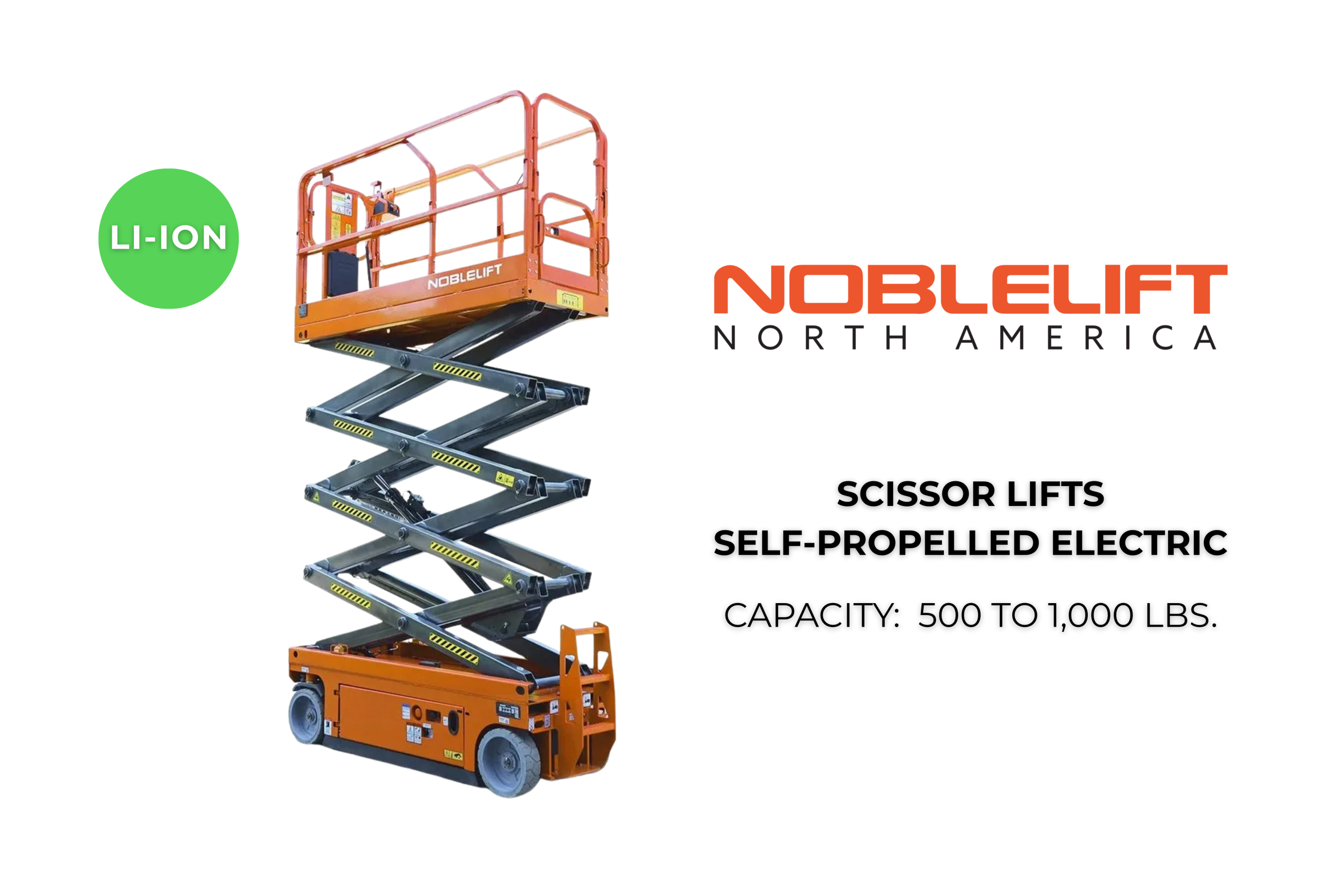

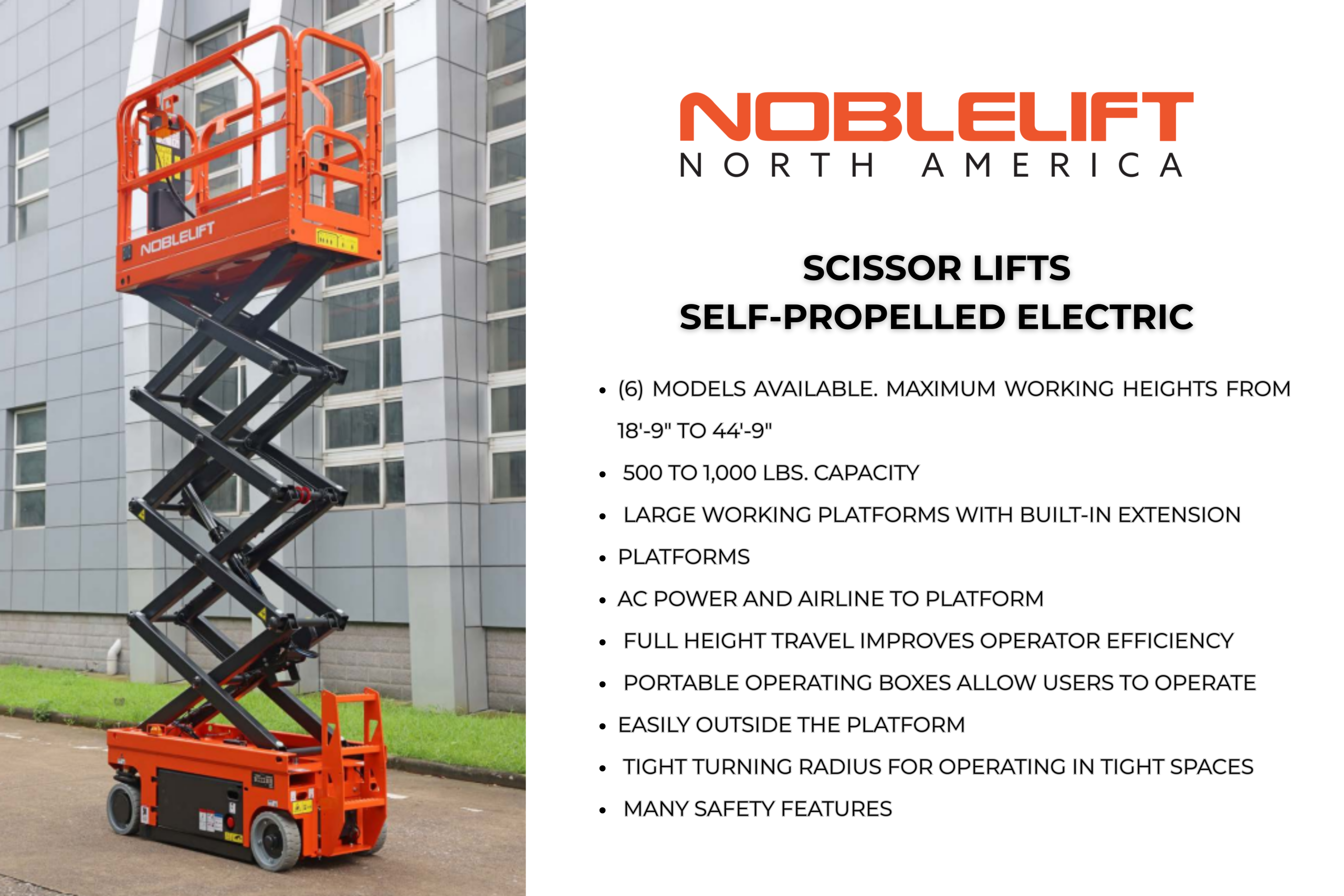

The Noblelift SC Series Lithium Self-Propelled Scissor Lift is a compact electric lift designed for safe, efficient work at height. Its lithium battery system provides fast charging, quiet operation, and zero emissions for indoor and light outdoor use.
With self-propelled drive at full height, a tight turning radius, and non-marking tires, the SC Series is ideal for warehouses, factories, and maintenance applications.
| PRODUCT FEATURE | DESCRIPTION |
|---|---|

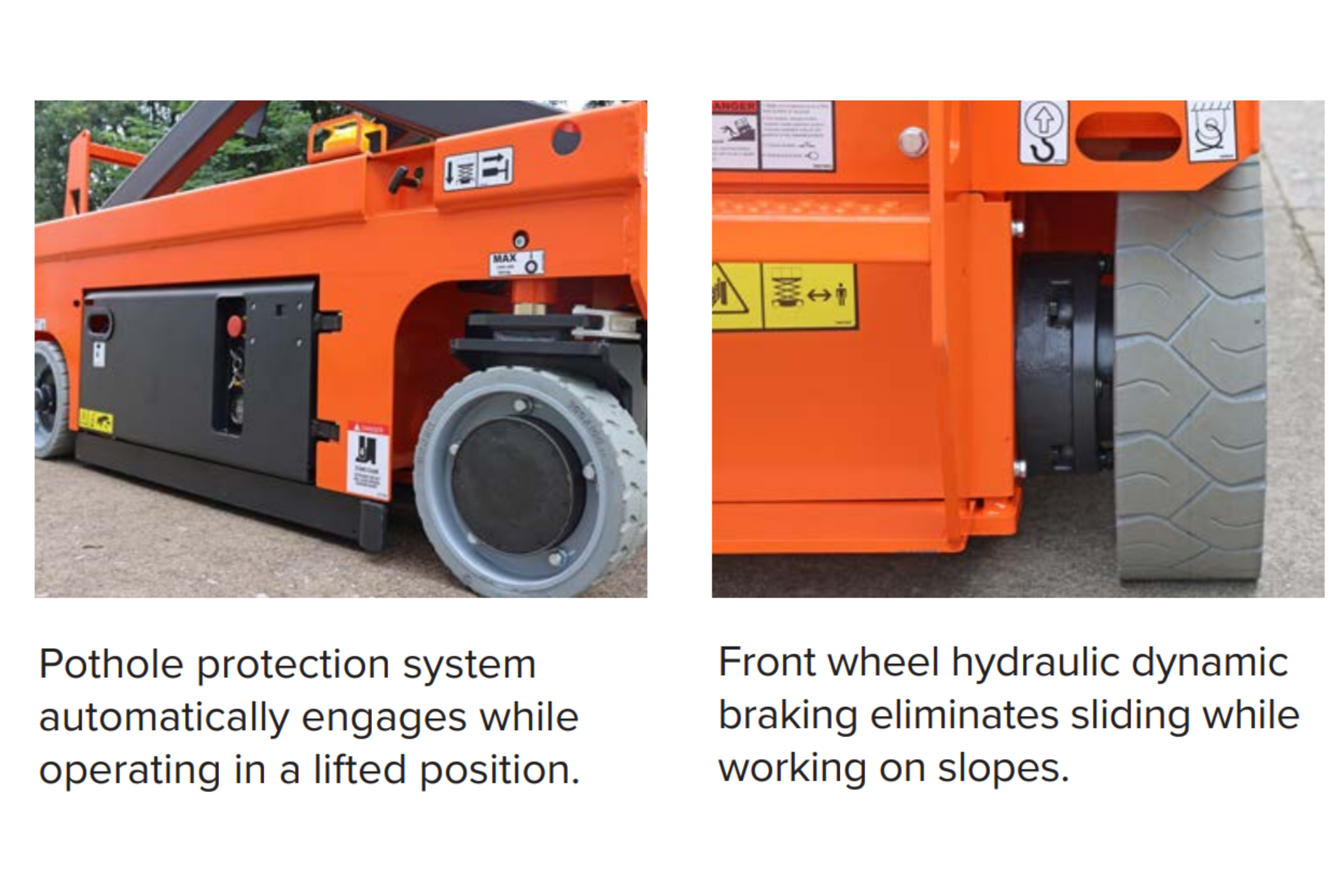

| Pot Hole Protection System | When the lift is raised, the pot hole protection board automatically deploys to improve stability during elevated operation. |
| Self-Locking Platform Door | Self-locking platform entry helps protect operators and improves safety while working at height. |

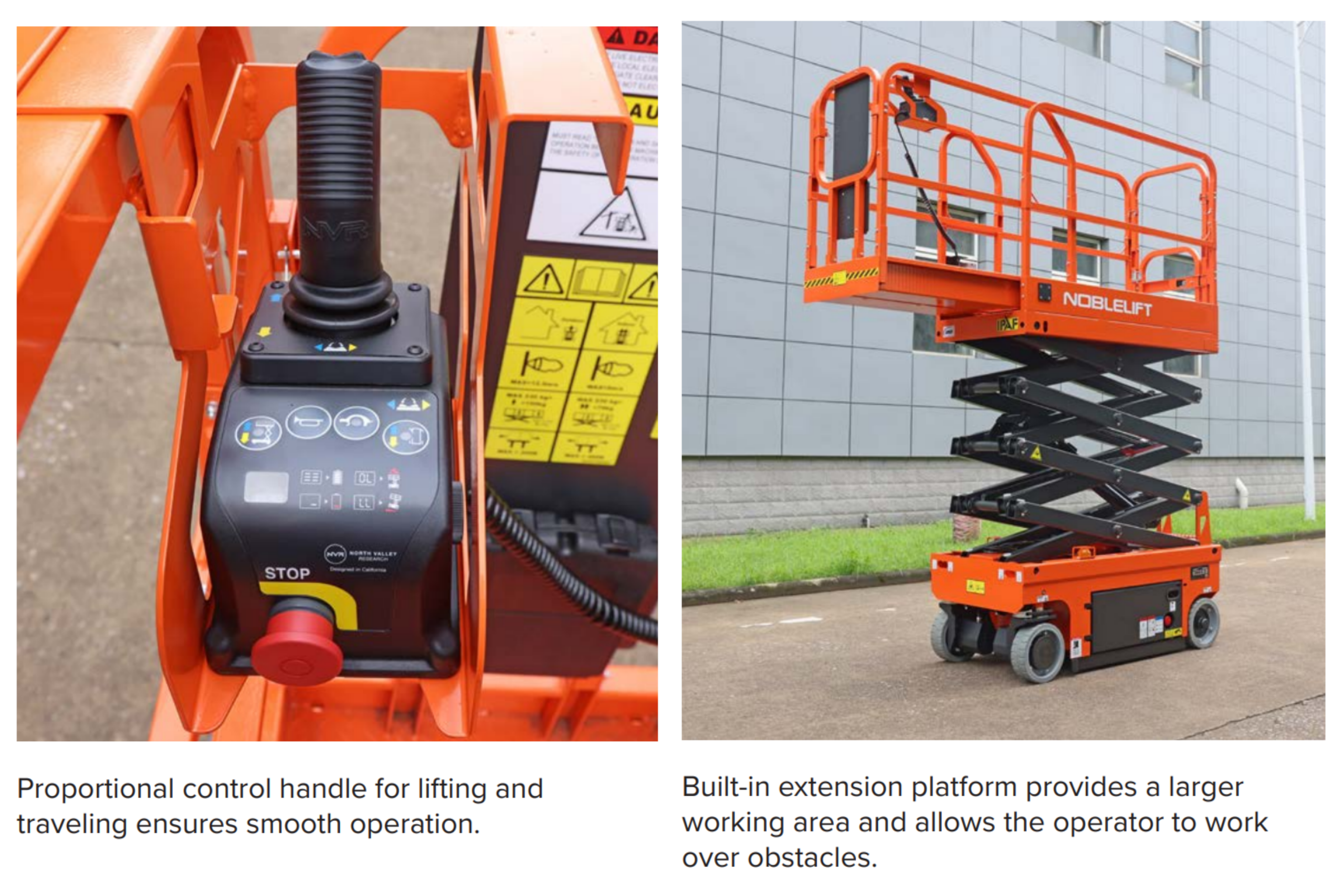

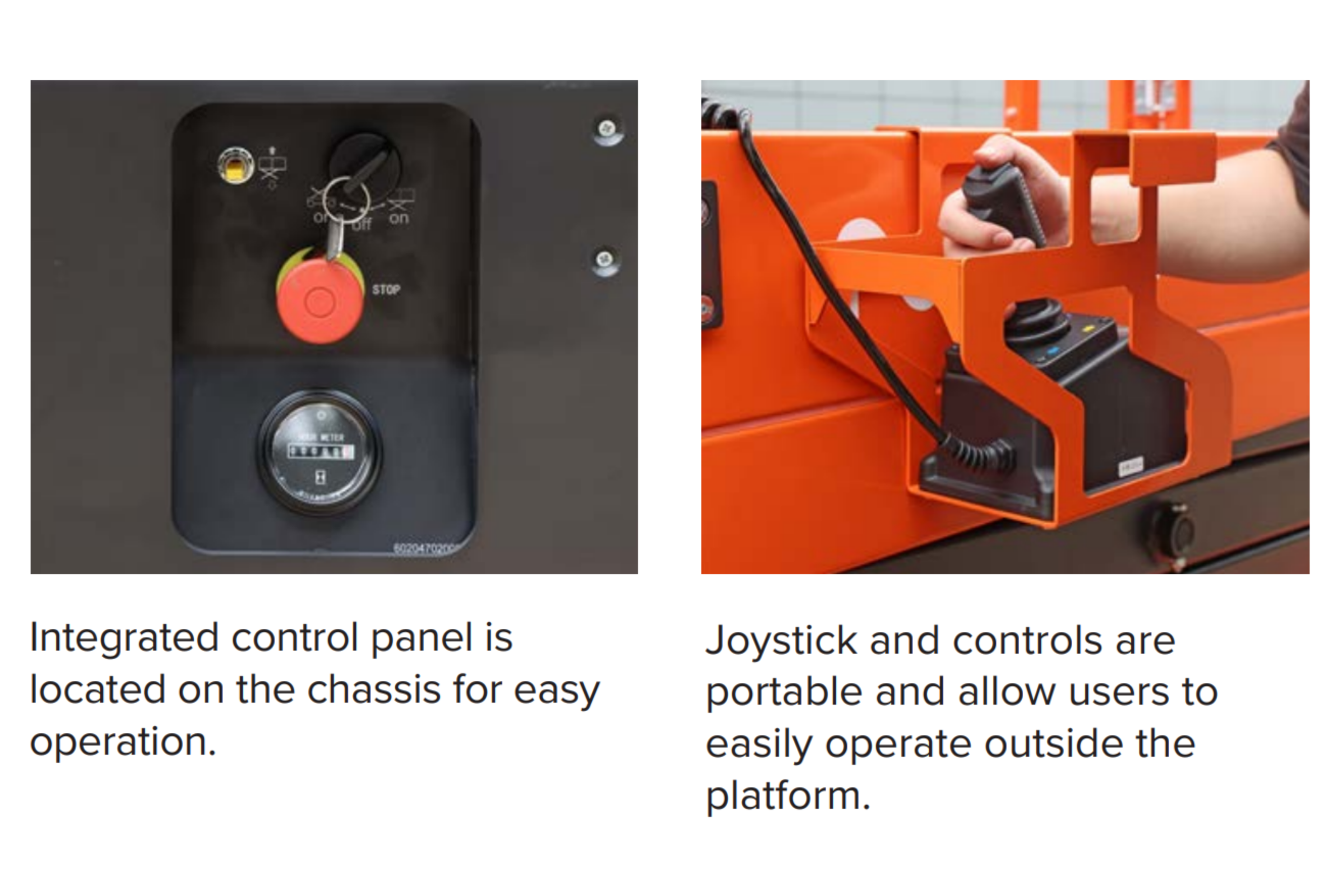

| Proportional Control Handle | Proportional lift and travel controls provide smoother movement and more precise positioning. |
| Incline Protection | If the lift exceeds the maximum safe working angle, an alarm activates and all functions are disabled to prevent unsafe operation. |
| Swing-Out Component Trays | Swing-out trays on both sides of the chassis provide easier access for servicing and maintenance. |

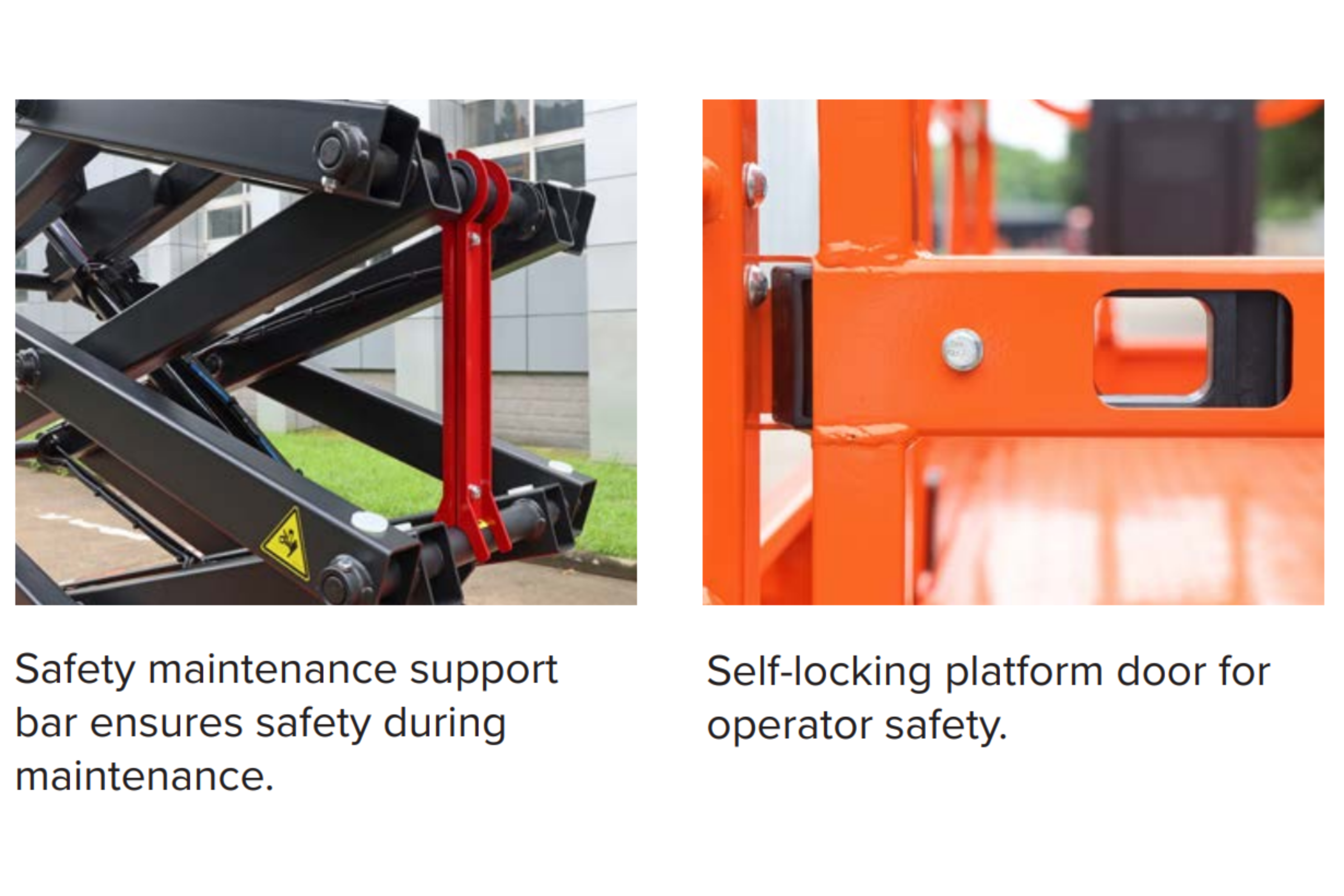

| Safety Maintenance Support Bar | Provides secure support during maintenance to help protect technicians and improve service safety. |
| Front Wheel Hydraulic Dynamic Braking | Helps prevent sliding and improves control when operating on sloped surfaces. |

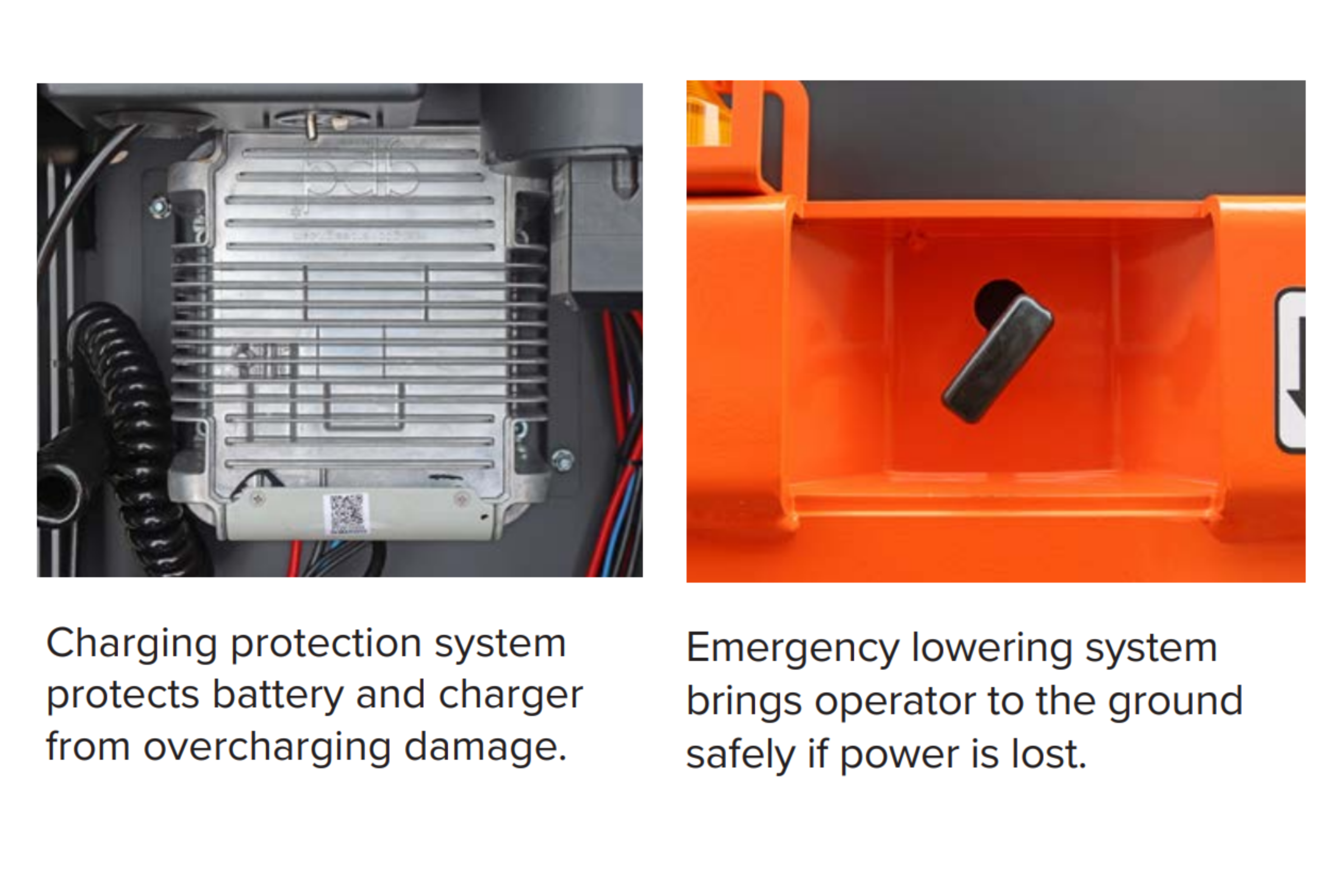

| Emergency Lowering System | In the event of power loss, the emergency lowering function safely returns the platform to ground level. |

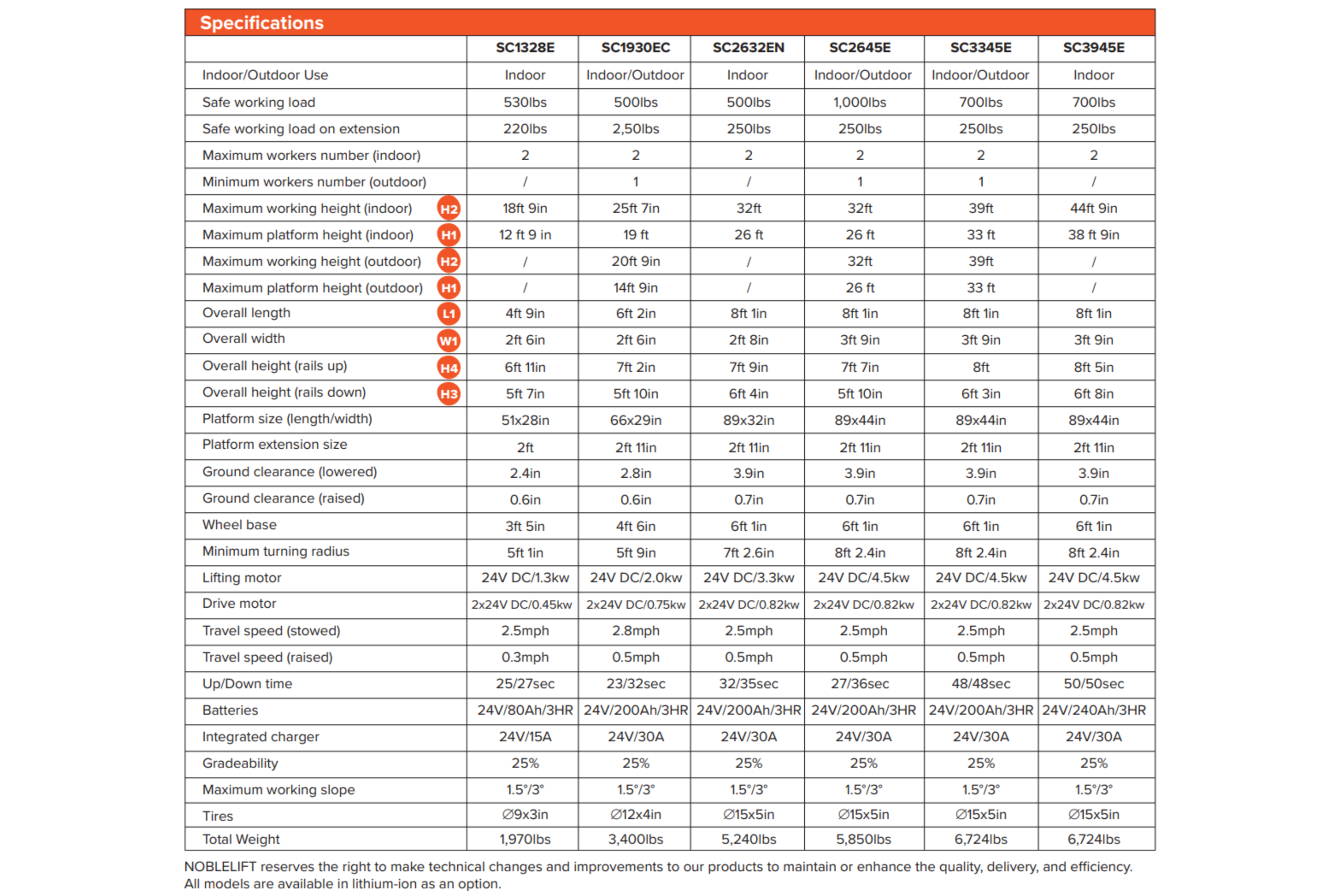

| SPECIFICATIONS | SC1328E | SC1930EC | SC2632EN | SC2645E | SC3345E | SC3945E |
|---|---|---|---|---|---|---|
| UNIT TYPE | ELECTRIC SELF-PROPELLED SCISSOR LIFT, FRONT-WHEEL (LITHIUM-ION AVAILABLE ON ALL MODELS) | |||||
| LOAD CAPACITY | 530 lb | 500 lb | 500 lb | 1,000 lb | 700 lb | 700 lb |
| MAX WORKING HEIGHT (INDOOR) | 18 ft 9 in | 25 ft 7 in | 32 ft | 32 ft | 39 ft | 44 ft 9 in |
| MAX WORKING HEIGHT (OUTDOOR) | N/A | 20 ft 9 in | N/A | 32 ft | 39 ft | N/A |
| POWER | 24V / 80Ah | 24V / 200Ah | 24V / 200Ah | 24V / 200Ah | 24V / 200Ah | 24V / 240Ah |
| INTEGRATED CHARGER | 24V / 15A | 24V / 30A | 24V / 30A | 24V / 30A | 24V / 30A | 24V / 30A |
| PLATFORM SIZE (L × W) | 51 × 28 in | 66 × 29 in | 89 × 32 in | 89 × 44 in | 89 × 44 in | 89 × 44 in |
| MAX GRADEABILITY | 25% | |||||
| MAX WORKING SLOPE | 1.5° / 3° | |||||
| TURNING RADIUS | 5 ft 1 in | 5 ft 9 in | 7 ft 2.6 in | 8 ft 2.4 in | 8 ft 2.4 in | 8 ft 2.4 in |
| INDOOR / OUTDOOR USE | Indoor | Indoor / Outdoor | Indoor | Indoor / Outdoor | Indoor / Outdoor | Indoor |
| OPTIONS | DESCRIPTION |
|---|---|
| Lithium-Ion Battery Upgrade | All models are available with lithium-ion battery configuration for fast charging, opportunity charging, and maintenance-free operation. |
| Extendable Platform | Slide-out platform extension increases reach and workspace without repositioning the lift. |

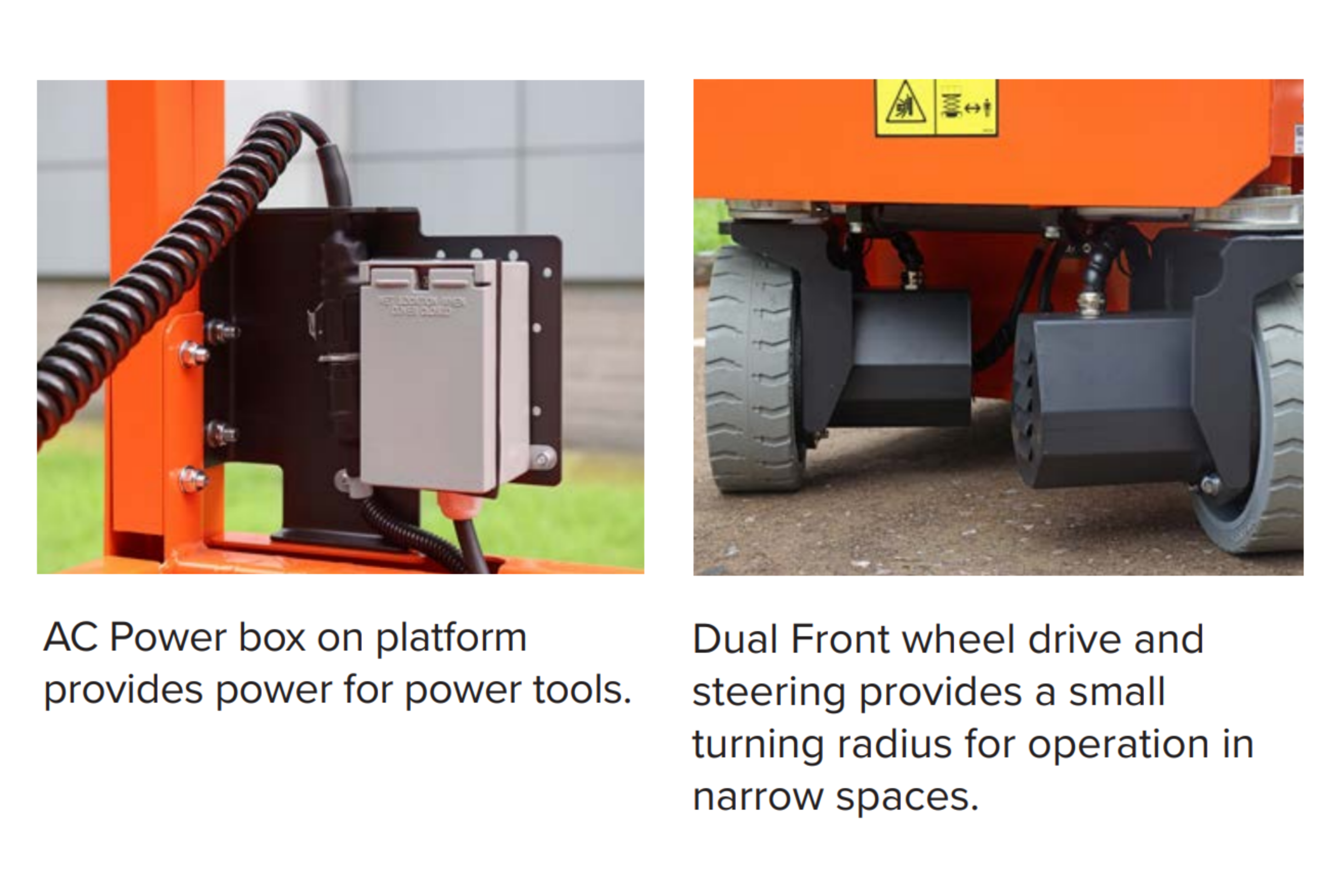

| AC Power Outlet on Platform | Provides onboard power for electric tools and equipment while working at height. |
| Air Line to Platform | Integrated air line supports the use of pneumatic tools for maintenance and installation tasks. |

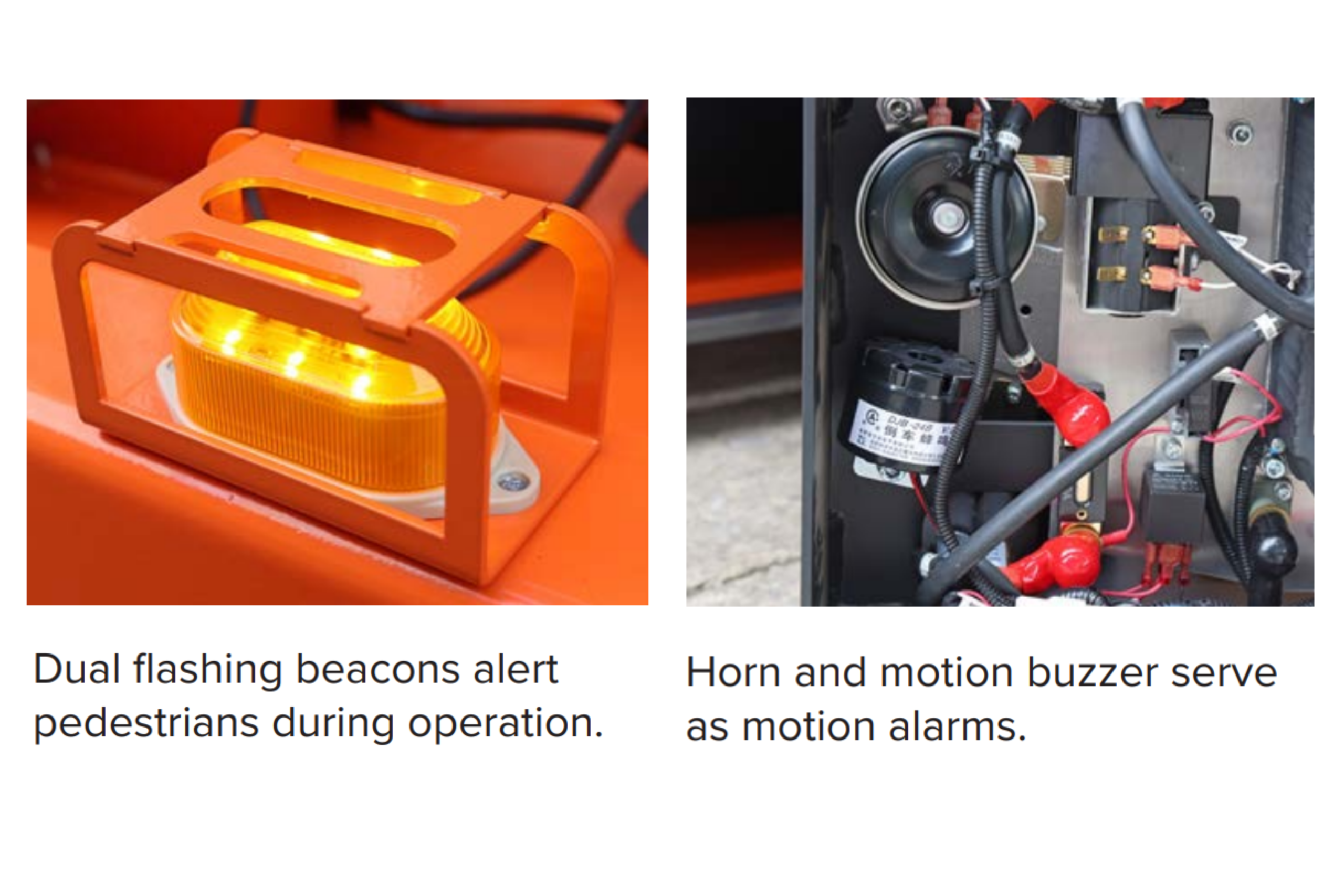

| Flashing Beacon / Warning Light | Improves visibility and safety when operating in busy or shared work areas. |

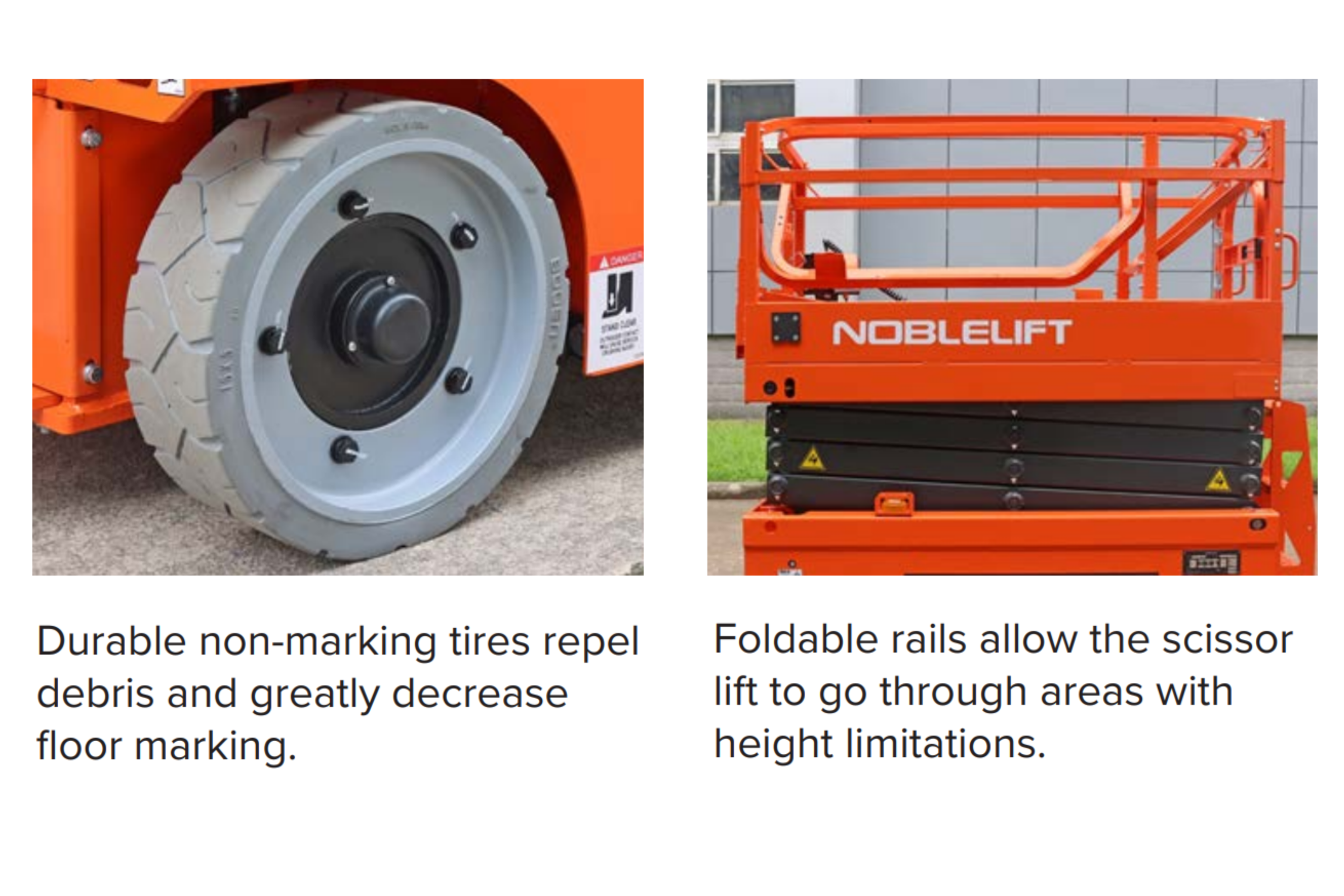

| Non-Marking Tires | Optional tire compound designed to protect finished floors in warehouses, retail spaces, and facilities with sensitive flooring. |
| Cold-Weather Package | Optimized components and battery performance for operation in low-temperature environments. |
| Overhead Guard / Pipe Rack | Optional rack or guard for carrying pipes, tools, or materials at height. |
| Custom Color / Branding | Available custom paint colors or logo branding to match fleet or facility requirements. |
