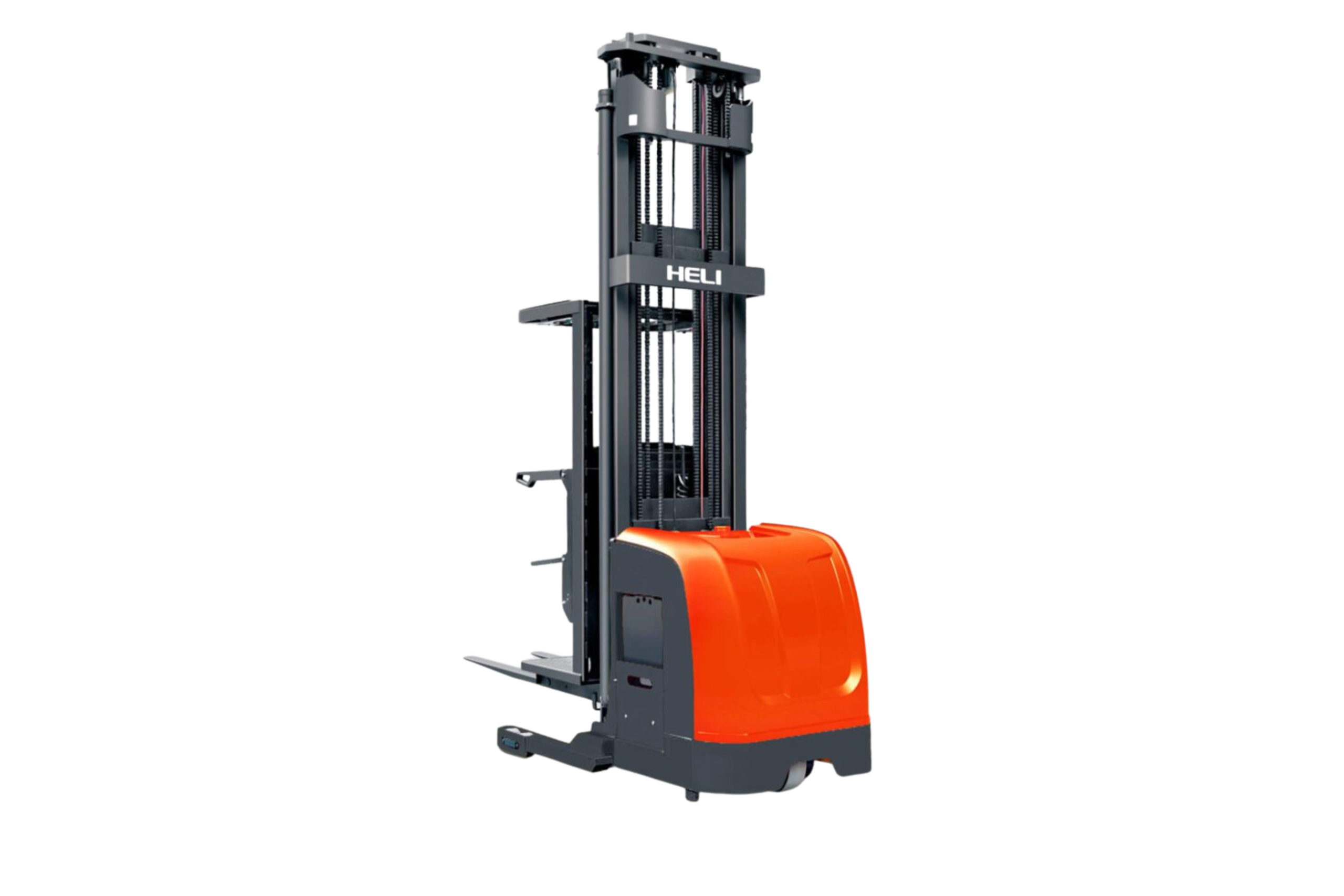

The HELI OPS15 is a high-level electric order picker built for precision, performance, and safety in warehouse operations. With a 1,500 kg load capacity, advanced AC drive, and ergonomic design, it delivers exceptional stability and maneuverability for efficient high-rack picking.
| Product Features | Description |
|---|---|
| 1,500 kg Load Capacity | Supports up to 3,307 lbs of load, ideal for efficient high-level order picking. |
| High-Lift Three-Stage Mast | Provides lifting heights up to 11.2 m, suitable for high-racking warehouse operations. |
| Electric Power Steering (EPS) | Delivers precise, low-effort steering and improved control in confined spaces. |
| Electromagnetic Braking | Ensures responsive, low-wear braking for smooth and safe operation. |
| Side-Extraction Battery Design | Allows quick battery swaps and easy maintenance for multi-shift workflows. |
| Automatic Deceleration System | Reduces speed during turns and at higher lift levels to enhance operator safety. |
| Ergonomic Operator Platform | Features stable footing, intuitive controls, and clear visibility for safe picking. |
| LED Work Lighting | Improves visibility for both operator and surrounding pedestrians. |
| Specifications | Description |
|---|---|
| Model | OPS15 |
| Mast Type | 3-stage mast |
| Rated Load Capacity | 1,500 kg (≈ 3,307 lb) |
| Load Centre Distance | 600 mm |
| Lift Heights | 5,000 / 7,000 / 9,000 mm (masts) |
| Mast Extended Heights | 7,230 / 9,230 / 11,230 mm |
| Mast Lowered Heights | 2,410 / 3,080 / 3,750 mm |
| Platform Height | 230 mm |
| Ground Clearance (Fork Lower to Ground) | 80 mm |
| Fork Dimensions | 45 / 100 / 1,220 mm (thickness / width / length) |
| Overall Length | 3,200 mm |
| Overall Width | 1,100 / 1,352 mm |
| Width Across Forks | 530 / 715 mm |
| Overhead Guard Height | 2,290 mm |
| Turning Radius | 1,800 mm |
| Options | Description |
|---|---|
| Fork Configurations | Custom fork lengths and widths to accommodate different pallet sizes. |
| Mast Configurations | 5 m, 7 m, or 9 m lift height options with 3-stage mast designs. |
| Battery System | Standard lead-acid or optional lithium-ion battery with side-extraction design. |
| Platform Features | Ergonomic standing platform with optional fall-protection guardrails. |
| Safety Enhancements | Emergency stop switch, backup alarm, blue pedestrian safety light, and deceleration assist. |
| Visibility Aids | Optional mast-mounted camera and LED lighting for improved visibility. |
| Telematics & Tracking | Hour meter, battery management system, and optional fleet monitoring interface. |
| Cold-Storage Package | Heated components and seals for reliable low-temperature operation. |
