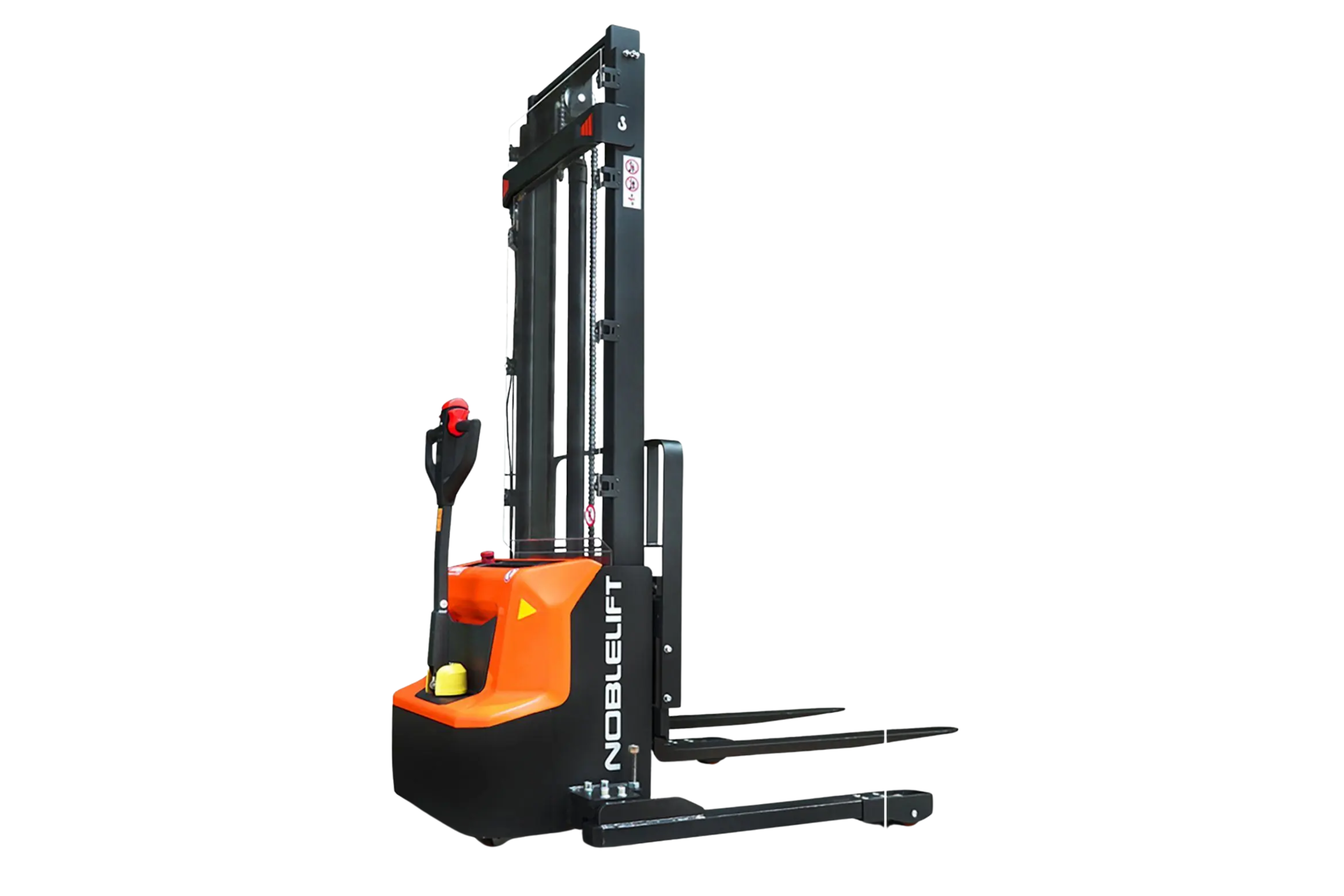

The Noblelift PSE26N is a lithium-electric walkie straddle stacker with a 2,600 lb (≈1,180 kg) capacity, designed for light-duty and highly maneuverable applications such as mezzanines and tight aisles. Compact in build and agile in use, it features a fast-charging, maintenance-free LiFePO₄ battery with built-in charger, an ergonomic tiller with vertical “pin-wheel”-style turning, adjustable straddle legs to accommodate varied pallet sizes and a wide-clear-view mast for enhanced operator visibility.
| Product Feature | Description |
|---|---|
| Maintenance-Free Lithium Battery | Equipped with a fast-charging, maintenance-free lithium battery and built-in charger that supports opportunity charging during breaks for increased uptime. |
| Integrated Battery Management System (BMS) | Monitors temperature, voltage, and cell performance to ensure optimal battery protection, longer life, and reliable operation. |
| Ergonomic Smart Tiller | Features an ergonomic handle with PIN code and RFID access for multi-operator security and efficient control during operation. |
| Turtle Speed & Pin-Wheel Mode | Allows precise control and ultra-tight turning radius with the handle in an upright position, perfect for confined areas or narrow aisles. |
| Adjustable Straddle Legs | Adjustable width straddle legs accommodate various pallet sizes, enhancing versatility and load stability. |
| Wide Mast Visibility | Engineered with a wide-clear-view mast design to improve visibility, minimize blind spots, and increase operator safety. |
| Easy Maintenance Access | Simplified design provides quick access to key components without the need for special tools, minimizing service time and downtime. |
| CAN-Bus Controller System | Uses advanced CAN-bus control technology for precise motor regulation, diagnostics, and performance optimization with reduced downtime. |
| 3-Point Chassis Design | Tri-support chassis structure with drive and side support wheels provides maximum traction, improved balance, and superior stability during operation. |

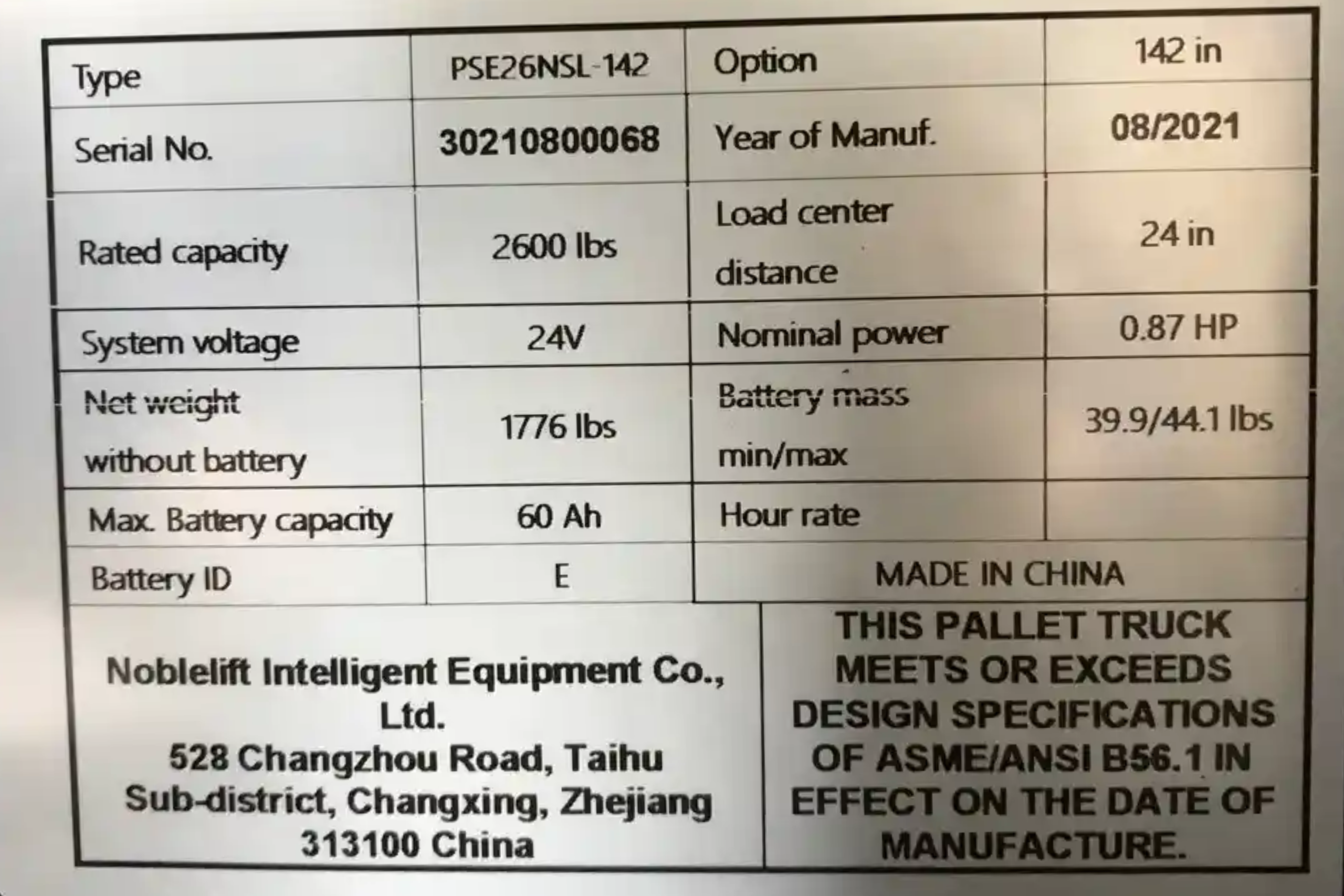

| Specification | Value |
|---|---|
| Load Capacity | 2,600 lb (1,180 kg) |
| Load Center | 23.6 in (600 mm) |
| Unit Type | Lithium-Electric Walkie Straddle Stacker |
| Battery | 24 V / 60 Ah Lithium-Iron (LiFePO₄) |
| Built-in Charger | 24 V / 25 A internal smart charger |
| Standard Fork Length | 42 in (1,070 mm) |
| Maximum Lift Height Options | 74 in (1,880 mm) / 114 in (2,900 mm) / 124 in (3,150 mm) / 140 in (3,550 mm) |
| Minimum Fork Height | 2 in (50 mm) |
| Mast Stage | 2-stage mast design for stability and clear visibility |
| Turning Radius | 53 in (1,345 mm) |
| Device Application | Light-duty material handling; ideal for warehouses, mezzanines, and narrow aisles |
| Option | Description |
|---|---|
| Fork-Over Type Option | Available in a fork-over leg design for handling open-bottom pallets, allowing greater compatibility with various load types. |
| Tire Configuration Options | Offered with standard traction tires or non-marking tire options to meet different indoor floor surface requirements. |
| Multiple Lift Height Options | Available with lift heights of 74″, 114″, 124″, and 140″ to accommodate different stacking and warehouse storage needs. |
