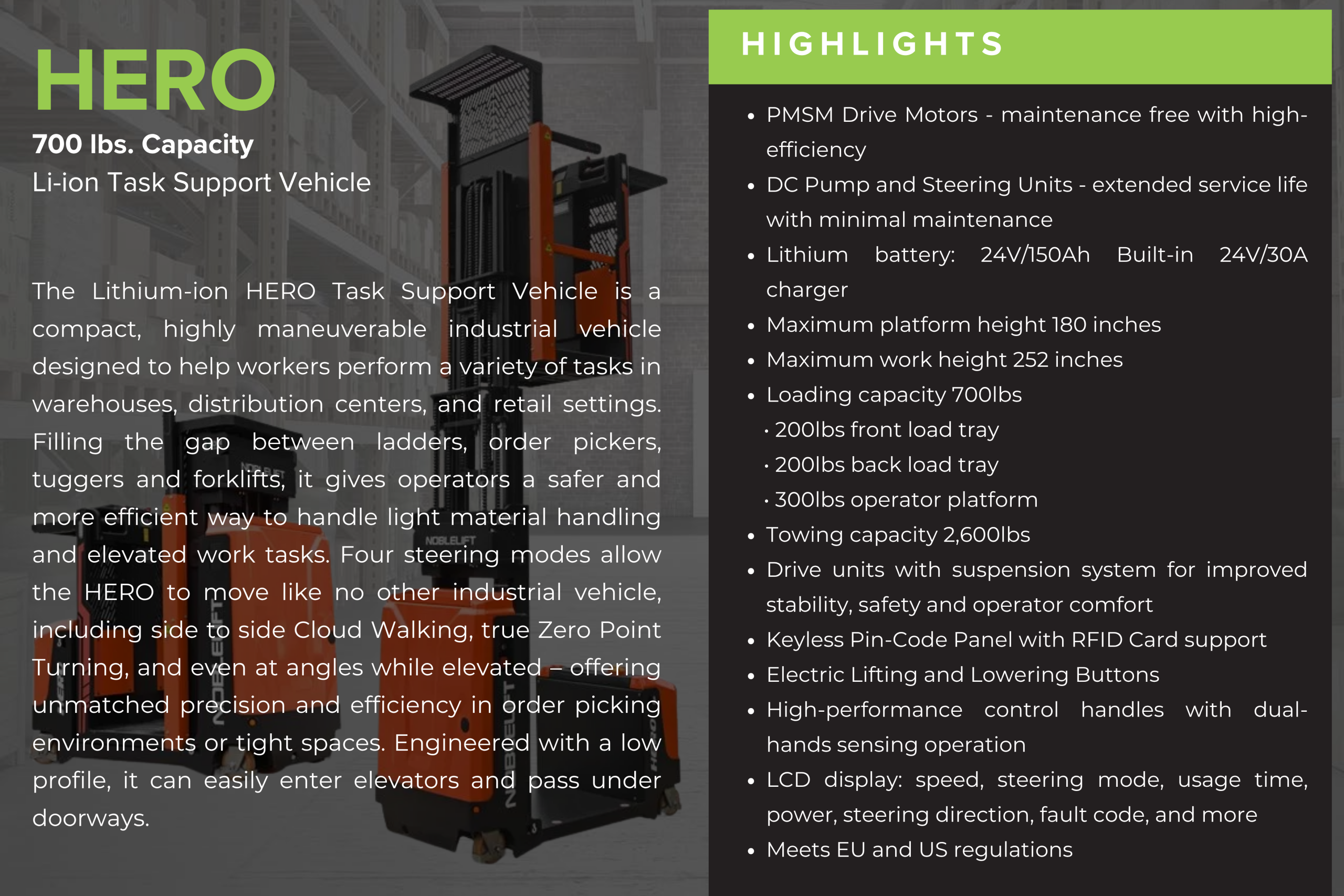

The Lithium-ion HERO Task Support Vehicle, with a 700 lbs capacity, is a compact, highly maneuverable industrial vehicle designed to help workers perform a variety of tasks in warehouses, distribution centers, and retail settings. Filling the gap between ladders, order pickers, tuggers and forklifts, it gives operators a safer and more efficient way to handle light material handling and elevated work tasks.

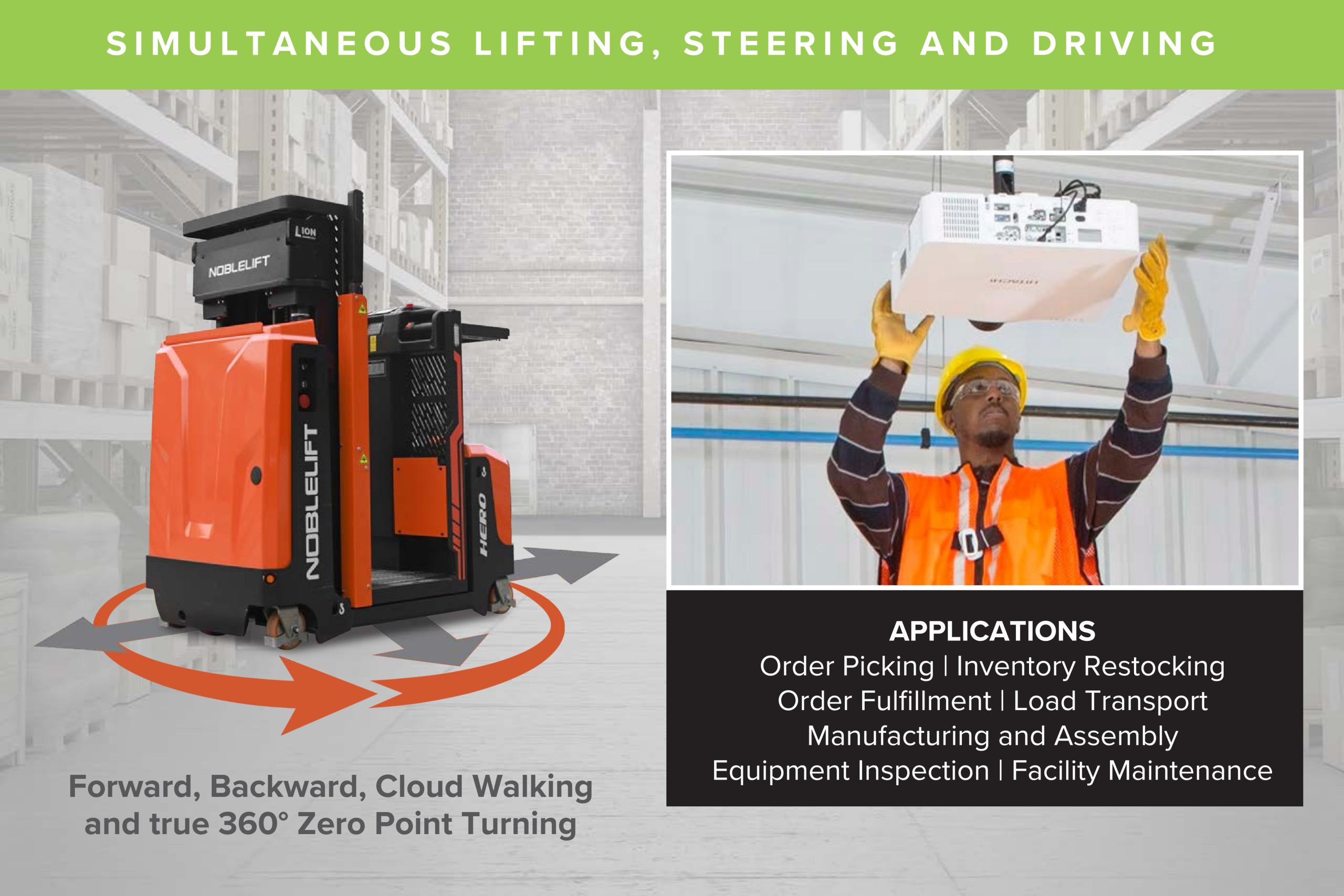

Four steering modes allow the HERO to move like no other industrial vehicle, including side to side Cloud Walking, true Zero Point Turning, and even at angles while elevated – offering unmatched precision and efficiency in order picking environments or tight spaces. Engineered with a low profile, it can easily enter elevators and pass under doorways.
| Product Features | Description |
|---|---|

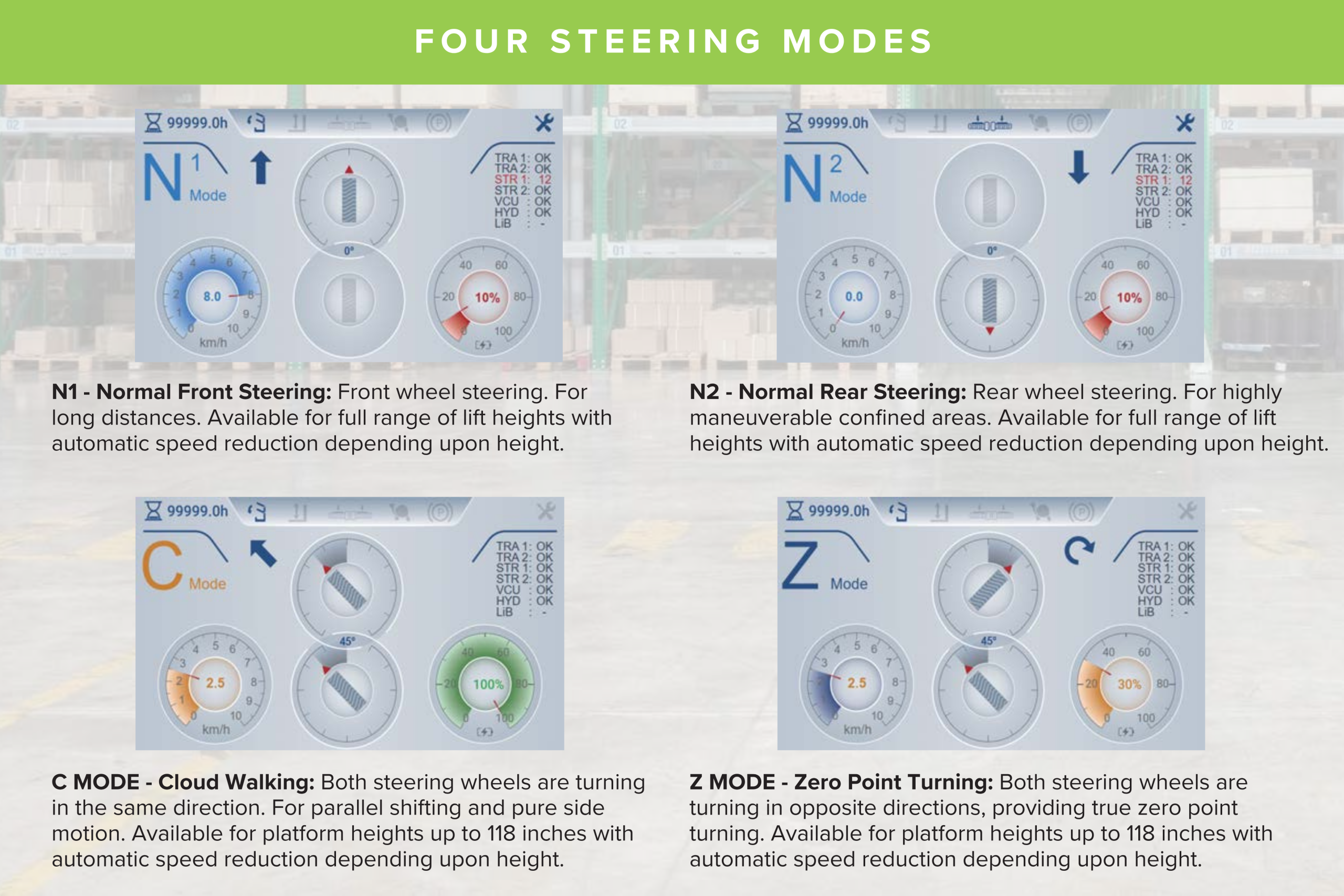

| 4 Steering Modes | Multiple steering configurations optimize performance for different applications, with automatic speed reduction based on lift height. |
| Normal Front Steering (N1) | Front wheel steering ideal for long-distance travel, available across full lift range with automatic speed adjustment. |
| Normal Rear Steering (N2) | Rear wheel steering provides excellent maneuverability in confined spaces with automatic speed control. |
| Cloud Walking Mode (C Mode) | Both wheels turn in the same direction for lateral movement and parallel shifting, available up to 118" platform height. |
| Zero Point Turning (Z Mode) | Wheels turn in opposite directions for true zero-radius turning, improving maneuverability in tight areas. |
| Dual-Hand Control Handles | High-performance dual-hand sensing controls enhance productivity while maintaining advanced safety. |
| Telescopic Load Tray | Extends from 13.6" to 20.7" to increase load capacity while maintaining clear operator visibility. |

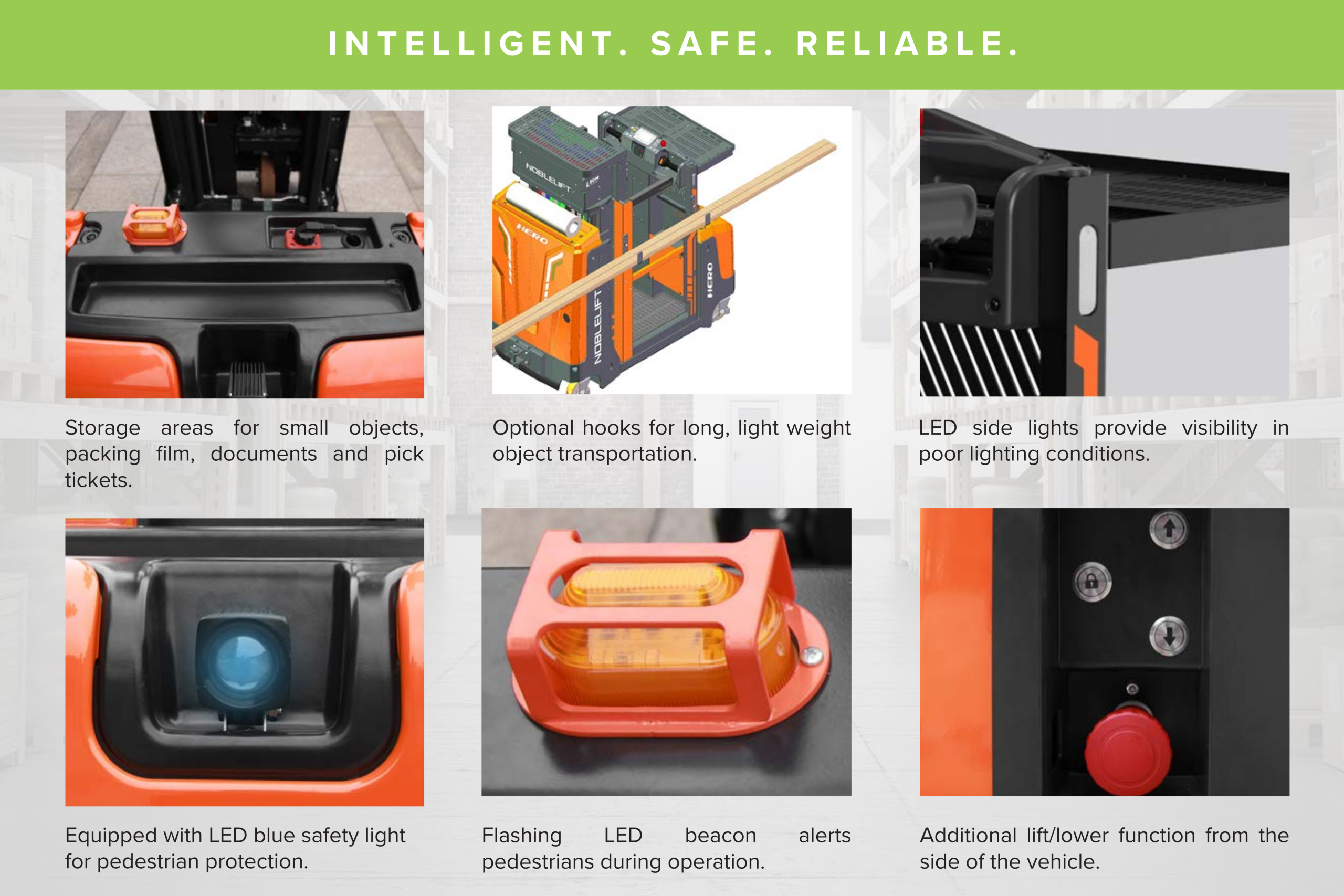

| Integrated Storage Areas | Dedicated compartments for tools, documents, packing materials, and pick tickets. |
| Towing Connector | Allows towing of carts, trailers, or dollies with a capacity of up to 2,600 lb. |
| LED Side Lights | Improves visibility in low-light environments for safer operation. |
| Blue Safety Light | Projects a visible warning light to enhance pedestrian awareness and safety. |

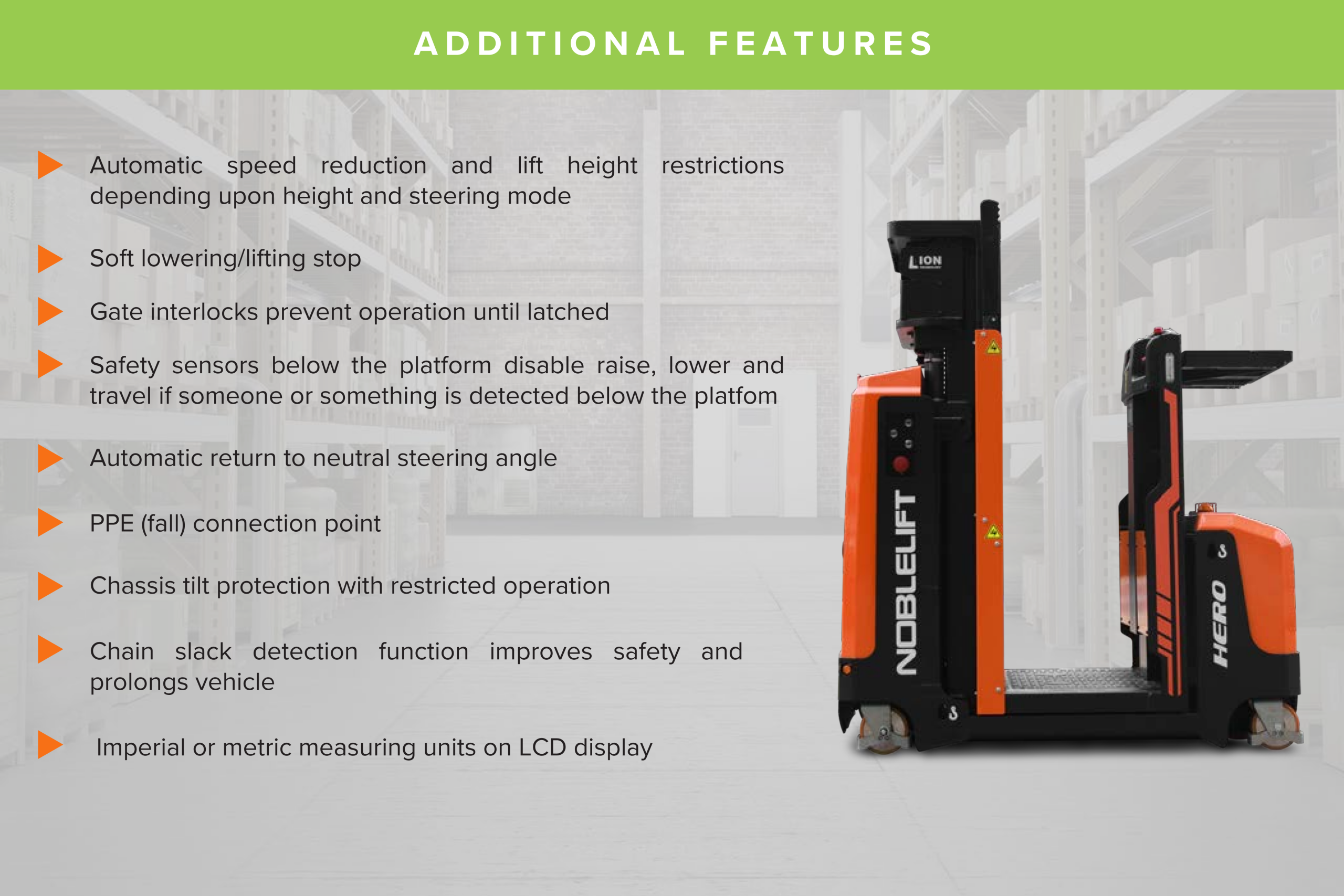

| Gate Interlock System | Prevents operation until safety gates are securely latched. |
| Platform Safety Sensors | Detects objects or personnel below the platform and disables lift and travel functions for safety. |
| Chain Slack & Grade Monitoring | Advanced monitoring systems ensure safe operation by detecting chain slack and incline conditions. |
| Automatic Speed Reduction | Automatically adjusts travel speed when operating at elevated heights for enhanced stability. |
| CAN-BUS Technology | Enables easy diagnostics, system monitoring, and troubleshooting. |
| Lithium-Iron Battery | Fast-charging, maintenance-free battery supports opportunity charging and continuous multi-shift operation without battery changes. |
| Keyless Access System | PIN code or RFID card access simplifies operation for multiple users while enhancing security. |
| Specification | Details |
|---|---|
| Unit Type | Task Support Vehicle - Lithium-Ion |
| Load Capacity |
700 lb total capacity
• 200 lb Front Load Tray • 200 lb Back Load Tray • 300 lb Operator Platform |
| Power | Lithium-ion: 24V / 150Ah |
| Battery Charger | 24V / 30A Built-in Charger |
| Max Platform Height | 180" |
| Max Working Height | 252" |
| Lowered Height | 65.3" |
| Towing Capacity | 2,600 lb |
| Turning Radius | True Zero Point Turning |
| Category | Description |
|---|---|
| Steering Modes |
Normal Front: Standard travel Normal Rear: High maneuverability Crab Mode (Cloud Walking): Side-to-side / parallel shifting Zero Point: Zero-radius rotation |
| Optional Add-Ons |
Towing Connector: Pull loads up to 2,600 lb Material Hooks: Secure long items Safety Beacon: Flashing LED for high-traffic areas Auxiliary Controls: Exterior lift and lower controls |
| Power | 24V / 150Ah lithium battery with integrated 110V fast charger |
| Technology | RFID or PIN code access, USB and 12V power sockets, and color LCD dashboard |
| Load Trays | Telescopic front tray extends from 13.6" to 20.7" with fixed rear tray for additional storage |
| Capacity | 700 lb total capacity (300 lb operator, 200 lb front tray, 200 lb rear tray) |
The Lithium-ion HERO Task Support Vehicle, with a 700 lbs capacity, is a compact, highly maneuverable industrial vehicle designed to help workers perform a variety of tasks in warehouses, distribution centers, and retail settings. Filling the gap between ladders, order pickers, tuggers and forklifts, it gives operators a safer and more efficient way to handle light material handling and elevated work tasks.
Four steering modes allow the HERO to move like no other industrial vehicle, including side to side Cloud Walking, true Zero Point Turning, and even at angles while elevated – offering unmatched precision and efficiency in order picking environments or tight spaces. Engineered with a low profile, it can easily enter elevators and pass under doorways.
| Product Features | Description |
|---|---|
| 4 Steering Modes | Multiple steering configurations optimize performance for different applications, with automatic speed reduction based on lift height. |
| Normal Front Steering (N1) | Front wheel steering ideal for long-distance travel, available across full lift range with automatic speed adjustment. |
| Normal Rear Steering (N2) | Rear wheel steering provides excellent maneuverability in confined spaces with automatic speed control. |
| Cloud Walking Mode (C Mode) | Both wheels turn in the same direction for lateral movement and parallel shifting, available up to 118" platform height. |
| Zero Point Turning (Z Mode) | Wheels turn in opposite directions for true zero-radius turning, improving maneuverability in tight areas. |
| Dual-Hand Control Handles | High-performance dual-hand sensing controls enhance productivity while maintaining advanced safety. |
| Telescopic Load Tray | Extends from 13.6" to 20.7" to increase load capacity while maintaining clear operator visibility. |
| Integrated Storage Areas | Dedicated compartments for tools, documents, packing materials, and pick tickets. |
| Towing Connector | Allows towing of carts, trailers, or dollies with a capacity of up to 2,600 lb. |
| LED Side Lights | Improves visibility in low-light environments for safer operation. |
| Blue Safety Light | Projects a visible warning light to enhance pedestrian awareness and safety. |
| Gate Interlock System | Prevents operation until safety gates are securely latched. |
| Platform Safety Sensors | Detects objects or personnel below the platform and disables lift and travel functions for safety. |
| Chain Slack & Grade Monitoring | Advanced monitoring systems ensure safe operation by detecting chain slack and incline conditions. |
| Automatic Speed Reduction | Automatically adjusts travel speed when operating at elevated heights for enhanced stability. |
| CAN-BUS Technology | Enables easy diagnostics, system monitoring, and troubleshooting. |
| Lithium-Iron Battery | Fast-charging, maintenance-free battery supports opportunity charging and continuous multi-shift operation without battery changes. |
| Keyless Access System | PIN code or RFID card access simplifies operation for multiple users while enhancing security. |
| Specification | Details |
|---|---|
| Unit Type | Task Support Vehicle - Lithium-Ion |
| Load Capacity |
700 lb total capacity
• 200 lb Front Load Tray • 200 lb Back Load Tray • 300 lb Operator Platform |
| Power | Lithium-ion: 24V / 150Ah |
| Battery Charger | 24V / 30A Built-in Charger |
| Max Platform Height | 180" |
| Max Working Height | 252" |
| Lowered Height | 65.3" |
| Towing Capacity | 2,600 lb |
| Turning Radius | True Zero Point Turning |
| Category | Description |
|---|---|
| Steering Modes |
Normal Front: Standard travel Normal Rear: High maneuverability Crab Mode (Cloud Walking): Side-to-side / parallel shifting Zero Point: Zero-radius rotation |
| Optional Add-Ons |
Towing Connector: Pull loads up to 2,600 lb Material Hooks: Secure long items Safety Beacon: Flashing LED for high-traffic areas Auxiliary Controls: Exterior lift and lower controls |
| Power | 24V / 150Ah lithium battery with integrated 110V fast charger |
| Technology | RFID or PIN code access, USB and 12V power sockets, and color LCD dashboard |
| Load Trays | Telescopic front tray extends from 13.6" to 20.7" with fixed rear tray for additional storage |
| Capacity | 700 lb total capacity (300 lb operator, 200 lb front tray, 200 lb rear tray) |
