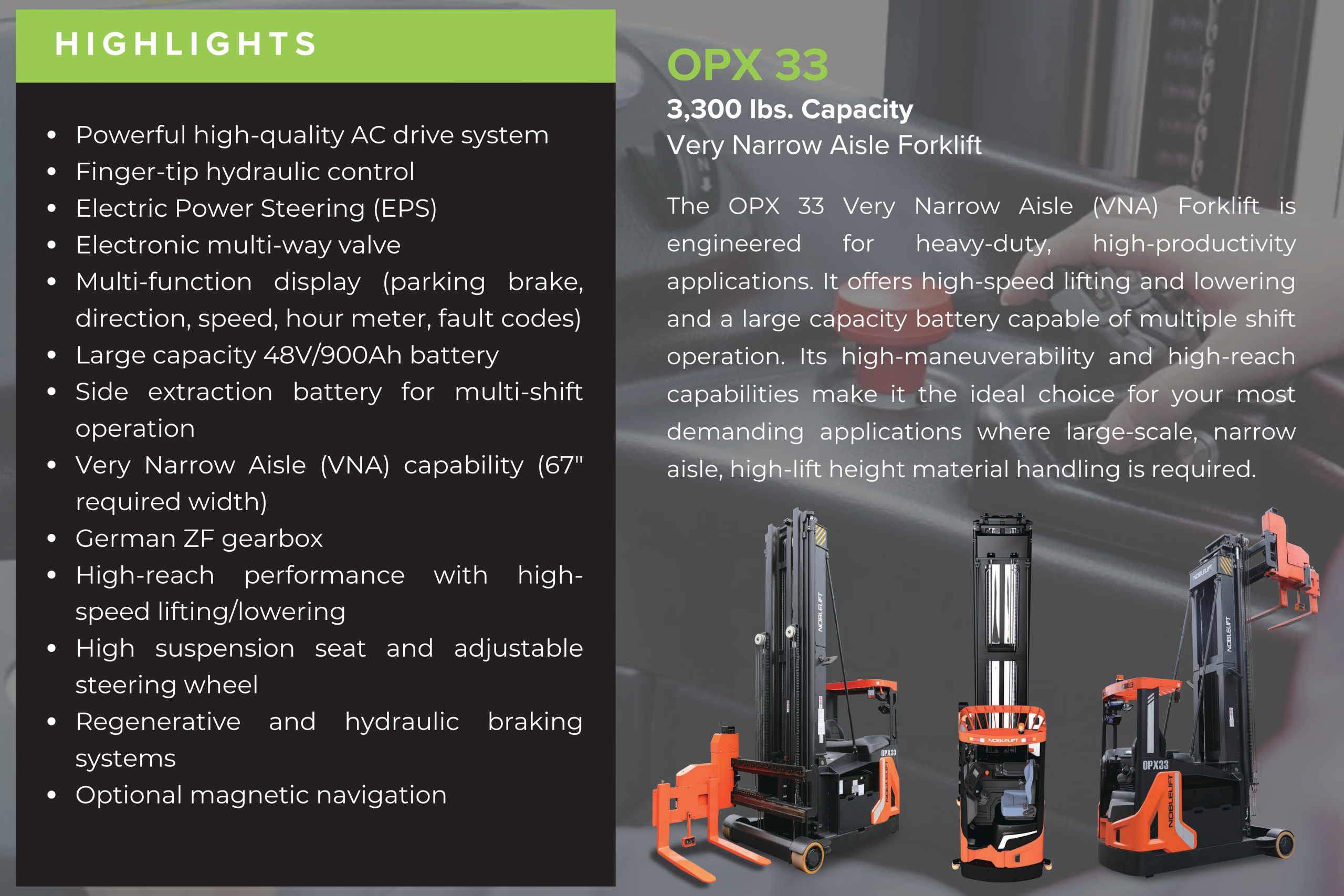

The OPX 33 3,300lb capacity, very narrow aisle forklift, offers high-speed lifting and lowering to improve productivity. The large capacity battery provides multiple shift operation. It’s centralized control console, with fingertip proportional control delivers smooth and accurate operation. A spacious and ergonomic cab with fully-adjustable, high-suspension seat provides optimal operator comfort. Its high-maneuverability and high-reach capabilities make it the ideal choice for your most demanding applications where large-scale, narrow aisle, high-lift height material handling is required.
This very narrow aisle forklift is equipped with high-quality German components, maintenance free AC Drive system, EPS-Electric Power Steering system and many safety features. High efficiency – Heavy duty!
| Product Features | Description |
|---|---|
| Advanced Components | Integrated AC system, Schabmuller motor, and Curtis control system with high-precision gearbox deliver flexible steering and high-quality driving performance. |

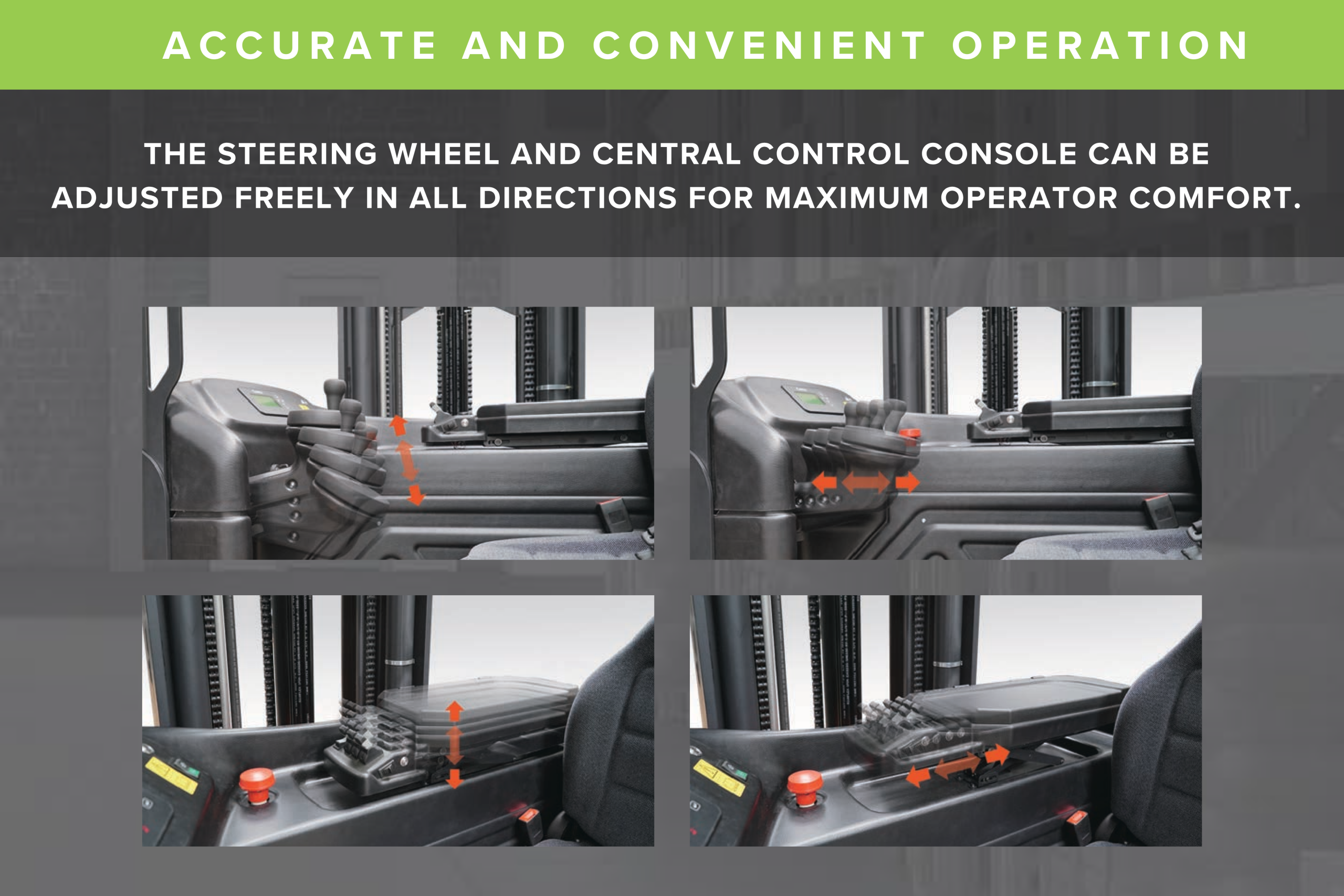

| Centralized Control Console | Fingertip proportional controls provide smooth and accurate operation, while high-speed lifting and lowering improve productivity. |
| Multi-Function Color LCD Display | Displays steering position, battery status, alarms, fault codes, working hours, and travel speed for real-time system monitoring. |

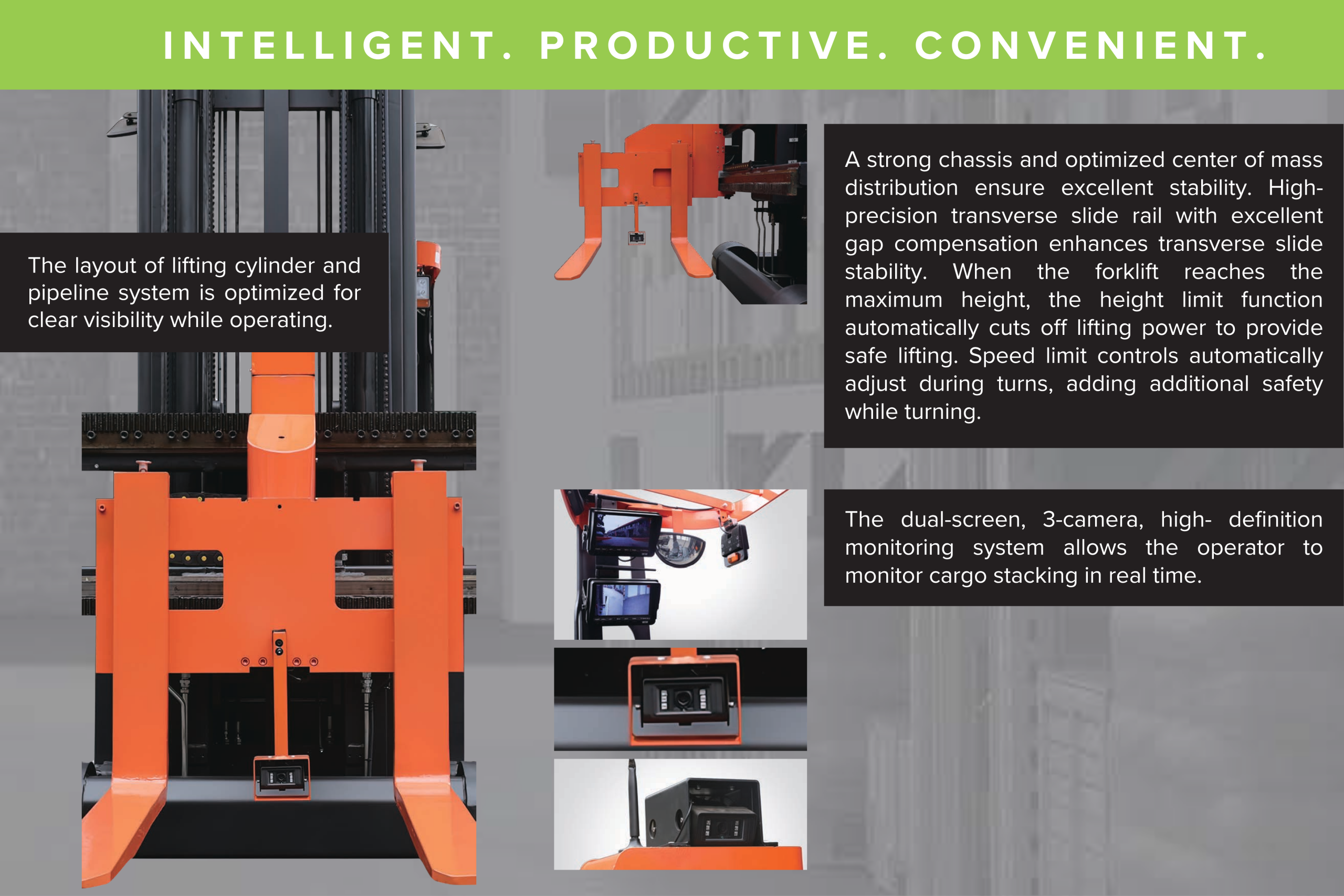

| Clear Visibility | Optimized layout of lifting cylinders and pipelines ensures clear visibility during operation. |

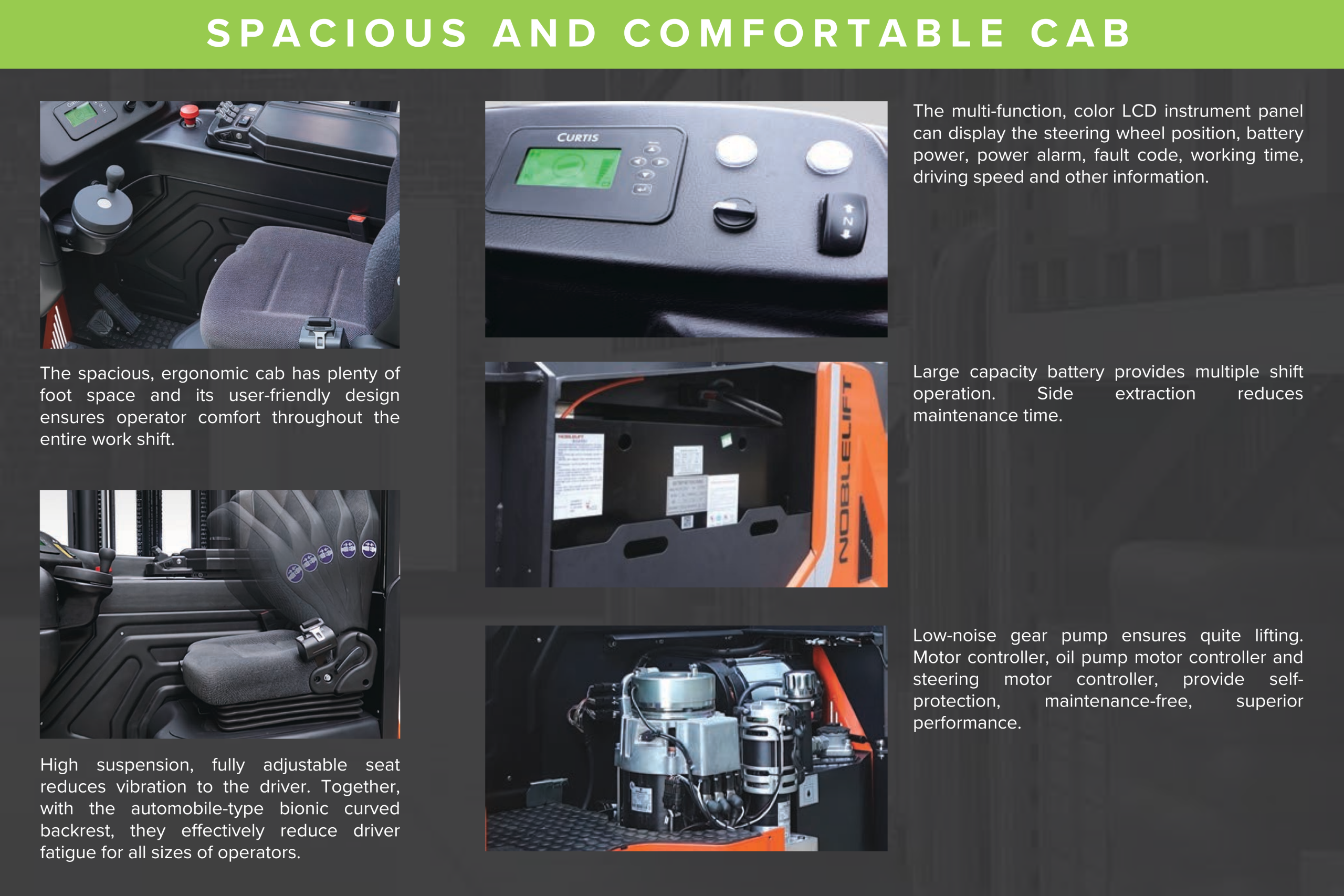

| Comfortable Cab | Spacious ergonomic cab with adjustable steering wheel and control console provides maximum operator comfort throughout long shifts. |
| Ergonomic Seating System | High-suspension, fully adjustable seat with bionic curved backrest reduces vibration and operator fatigue for all body types. |
| Dual-Screen 3-Camera Monitoring | High-definition dual-screen, three-camera system enables real-time cargo monitoring for safer and more precise stacking. |
| High-Capacity Battery | Supports multi-shift operation with side extraction design for reduced maintenance time. |
| Maintenance-Free Performance | Low-noise gear pump and protected motor controllers ensure quiet operation, reliability, and minimal maintenance requirements. |
| Stability and Safety | Strong chassis, optimized weight distribution, and advanced safety systems provide stable operation, automatic lift cut-off at max height, and speed control during turns. |
| Ease of Maintenance | Easy access to components simplifies servicing, while CAN communication improves diagnostics, reliability, and reduces downtime. |
| Specification | OPX 33 |
|---|---|
| Unit Type | Very Narrow Aisle Electric Forklift |
| Load Capacity | 3,300 lb |
| Load Center | 24" |
| Power | 48V / 900Ah Industrial Battery |
| Battery Charger | 48V / 100A, 240V / 480V, 3 Phase Charger |
| Fork Dimensions | 42" Standard |
| Std Fork Height | Options available from 256" to 374" |
| Minimum Lift Height | - |
| Mast Stages | - |
| Turning Radius | 82.7" |
| Options | Description |
|---|---|
| Optional Magnetic Navigation | Magnetic navigation system enables guided operation in very narrow aisles for improved precision, efficiency, and safety. |
| Optional Fork Lengths | Multiple fork length configurations available to accommodate various pallet sizes and application requirements. |
The OPX 33 3,300lb capacity, very narrow aisle forklift, offers high-speed lifting and lowering to improve productivity. The large capacity battery provides multiple shift operation. It’s centralized control console, with fingertip proportional control delivers smooth and accurate operation. A spacious and ergonomic cab with fully-adjustable, high-suspension seat provides optimal operator comfort. Its high-maneuverability and high-reach capabilities make it the ideal choice for your most demanding applications where large-scale, narrow aisle, high-lift height material handling is required.
This very narrow aisle forklift is equipped with high-quality German components, maintenance free AC Drive system, EPS-Electric Power Steering system and many safety features. High efficiency – Heavy duty!
| Product Features | Description |
|---|---|
| Advanced Components | Integrated AC system, Schabmuller motor, and Curtis control system with high-precision gearbox deliver flexible steering and high-quality driving performance. |
| Centralized Control Console | Fingertip proportional controls provide smooth and accurate operation, while high-speed lifting and lowering improve productivity. |
| Multi-Function Color LCD Display | Displays steering position, battery status, alarms, fault codes, working hours, and travel speed for real-time system monitoring. |
| Clear Visibility | Optimized layout of lifting cylinders and pipelines ensures clear visibility during operation. |
| Comfortable Cab | Spacious ergonomic cab with adjustable steering wheel and control console provides maximum operator comfort throughout long shifts. |
| Ergonomic Seating System | High-suspension, fully adjustable seat with bionic curved backrest reduces vibration and operator fatigue for all body types. |
| Dual-Screen 3-Camera Monitoring | High-definition dual-screen, three-camera system enables real-time cargo monitoring for safer and more precise stacking. |
| High-Capacity Battery | Supports multi-shift operation with side extraction design for reduced maintenance time. |
| Maintenance-Free Performance | Low-noise gear pump and protected motor controllers ensure quiet operation, reliability, and minimal maintenance requirements. |
| Stability and Safety | Strong chassis, optimized weight distribution, and advanced safety systems provide stable operation, automatic lift cut-off at max height, and speed control during turns. |
| Ease of Maintenance | Easy access to components simplifies servicing, while CAN communication improves diagnostics, reliability, and reduces downtime. |
| Specification | OPX 33 |
|---|---|
| Unit Type | Very Narrow Aisle Electric Forklift |
| Load Capacity | 3,300 lb |
| Load Center | 24" |
| Power | 48V / 900Ah Industrial Battery |
| Battery Charger | 48V / 100A, 240V / 480V, 3 Phase Charger |
| Fork Dimensions | 42" Standard |
| Std Fork Height | Options available from 256" to 374" |
| Minimum Lift Height | - |
| Mast Stages | - |
| Turning Radius | 82.7" |
| Options | Description |
|---|---|
| Optional Magnetic Navigation | Magnetic navigation system enables guided operation in very narrow aisles for improved precision, efficiency, and safety. |
| Optional Fork Lengths | Multiple fork length configurations available to accommodate various pallet sizes and application requirements. |
